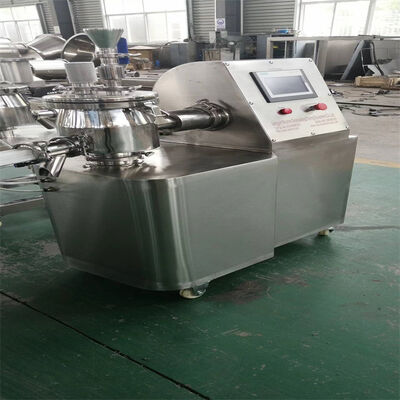

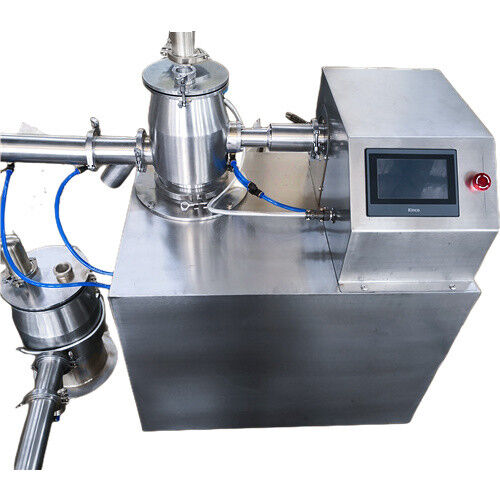

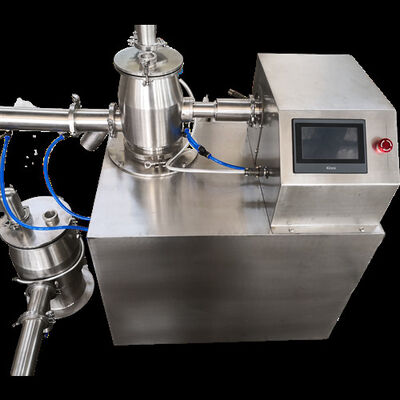

8KG Per Batch Pharmaceutical Rapid Mixer Granulator Wet Granules Pelletizer

8KG Per Batch Pharmaceutical Rapid Mixer Granulator Wet Granules Pelletizer

  • 8KG Per Batch Pharmaceutical Rapid Mixer Granulator Wet Granules Pelletizer
  • 8KG Per Batch Pharmaceutical Rapid Mixer Granulator Wet Granules Pelletizer
  • 8KG Per Batch Pharmaceutical Rapid Mixer Granulator Wet Granules Pelletizer
  • 8KG Per Batch Pharmaceutical Rapid Mixer Granulator Wet Granules Pelletizer
8KG Per Batch Pharmaceutical Rapid Mixer Granulator Wet Granules Pelletizer
Product Details:
Place of Origin: JIANGSU CHINA
Brand Name: SNYNXN
Certification: CE ISO GMP
Model Number: GHL
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable

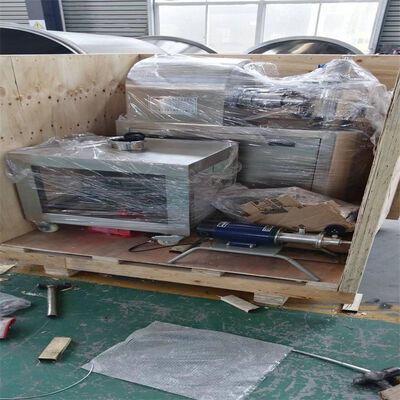

Packaging Details: Film Wrapping, Wooden Box
Delivery Time: WITHIN 50 DAYS
Payment Terms: T/T, L/C
Supply Ability: 100 SET/ YEAR
Contact Now
Detailed Product Description
Features: Easy Operate And Clean, Rapid Fluidized Granulating Of Granules Applicable Industry: Pelletizing Granules In Food, Pharmaceutical, Cosmetic, Chemicals
Capacity: 1 - 500 Kgs/Batch Stirring Speed: 0-400 R/Min
Cutting Speed: 0-2900 R/Min Compressed Air: 0.4-0.6 MPa
Mixing Efficiency: 99.9% Structure: Horizontal
Material: SUS304, SUS316L, Other, Stainless Steel304/316L After Sales Service: Online Support, Engineers Available To Service Machinery Overseas
High Light:

8KG/Batch pharmaceutical rapid mixer granulator

,

GHL pharmaceutical rapid mixer granulator

,

rmg rapid mixer granulator

GHL type batch by bacth High speed Mixing Granulator



GHL 8KG per Batch 10 minutes Mixing Granulator in Wet Granules Pelletizer

Principles

The powder raw material and adhesive in a cylinder are mixed fully at the bottom to turn into a humid soft material. Then it is crushed at a high speed and become uniform granules.

Technical parameters

parameter
type		 GHL-5 GHL-10 GHL-20 GHL-30 GHL-50 GHL-100 GHL-200 GHL-250 GHL-300 GHL-400 GHL-600 GHL-800 GhL-1000 G-L-1200 GHL-1500
Capacity (L) 5 10 20 30 50 100 200 250 300 400 600 800 1000 1200 1500

Production capacity (kg/)		 1 3 6 10 15 30 60 80 120 150 200 250 300 400 500

Stirring power(kw)		 1.1 1.5 2.2 3 5.5 7.5 11 11 15 22 30 37 45 45 55

Mixing time(min>		 0-7

Stirring speed(r/min)		 0-400 0-300 0-200 0-150 0-110

Cutting power(kw)		 0.55 0.75 1.1 1.5 2.2 3 5.5 5.5 7.5 11 15 18.5 22 22 30

Cutting time(min)		 0-5

Cutting speed(r/min)		 0-2900

Compressed air pressure(Mpa)		 0.4-0.6

Amount of compressed air(m3/min)		 0.3 0.6 0.9 1.1 1.5 1.8

Note: cutting machine 2,4 ~ 6, mixing motor parameter reserves the rights of modification, without prior notice

Features

The machine adapts a practical horizontal cylinder structure.
The driving shaft is equipped with inflatable seal. While washing, the air can be replaced by water.
Fluidized granulating processed is used and the final granules are quite round with high fluidity.
Compared with traditional technique, this type of machine can reduce 25% of adhesive and also shorten the drying time.
For each batch of material, with 2 minutes' dry mixing and 1-4 minutes' granulating, the efficiency is 4-5 times higher than that of traditional technique.
Dry mixing, wet mixing and granulating are finished inside the same sealed container, which is in conformity with the requirements of "GMP".

Process flow chart

8KG Per Batch Pharmaceutical Rapid Mixer Granulator Wet Granules Pelletizer 0

8KG Per Batch Pharmaceutical Rapid Mixer Granulator Wet Granules Pelletizer 1



Corresponding table of length, width, height and diameter of high-speed mixer

type
Size
Data		 GHL-5 GHL-10 GHL-20 GHL-30 GHL-50 GHL-100 GHL-200 GHL-250 GHL-300 GHL-400 GHL-600 GHL-800 GK.-1000 Q-L-1200 GHL-1500
A 850 900 1000 1100 1250 1350 1650 1650 1800 2000 2400 2400 2600 2800 3000
B 450 550 600 700
C 450 550 600 700 800 900 1000 1000 1100 1200 1300 1400 1500 1600 1800
D           2300 2400 2400 2500 2600 2800 3000 3300 3400 3500
E 1220 1300 1300 1350 1400 1400 1600 1600 1650 1650 1850 1900 2200 2300 2300
F 650 750 900 1000 1200
φ1 219 300 400 500 600 700 750 800 900 1000 1100 1200 1300 1400 1550
φ2 180 250 350 400 500 500 550 600 700 800 900 1000 1100 1200 1300
φ3 102 102 133 133 159 159 200 200 200 200 250 250 300 300 350
φ4 63 76 89 89 102 133 150 150 150 150 180 200 200 219 219

Note; the overall dimensions reserves the rights of modification, without prior notice

8KG Per Batch Pharmaceutical Rapid Mixer Granulator Wet Granules Pelletizer 2

8KG Per Batch Pharmaceutical Rapid Mixer Granulator Wet Granules Pelletizer 3

FAQ

Q1: What's the raw material you want to grind? (Like chili, sugar, herbs...etc)
Q2: What's the size of your raw material? (Such as 10 mm,15 mm...etc)
Q3: What's the capacity of the machine you need? (Like 50 kg/hr, 300 kg/hr,500 kg/hr..etc)
Q4: What's the finished powder fineness you want to get? (mesh, mm or micron)
Q5: What power do you use in your factory?-V,-Hz, 3 phase or single phase? (Like 220 V , 50 Hz , single or 380 V, 60 Hz etc)
We are happy to offer you the best products at competitive prices.
There are also quotations for other models of our production, please feel If you have any requirements, you can contact us at any time.
