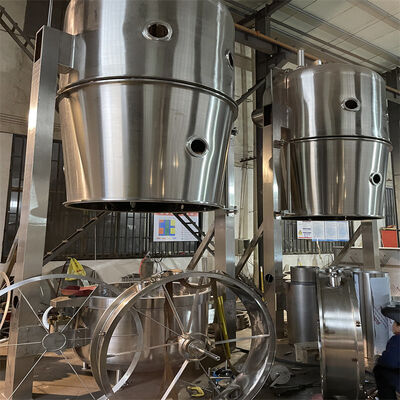

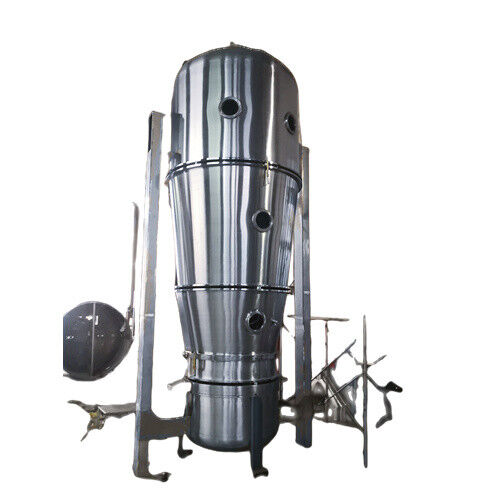

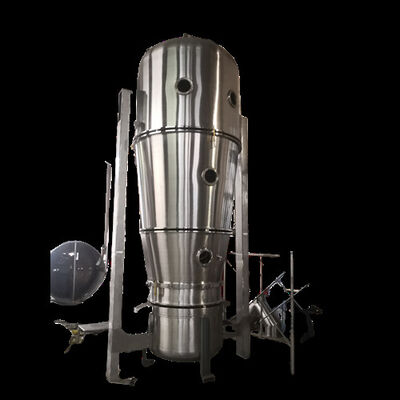

Stainless Steel Vertical LDP Fluidized Bed Coater Working Machine Processor For Granulation

Name: Stainless Steel Vertical LDP Fluidized Bed Coater Working Machine Processor For Granulation
Brand: SNYNXN
SKU: LDP
Rating: 4.9 (168 reviews)

Product Details:

Place of Origin:	JIANGSU CHINA
Brand Name:	SNYNXN
Certification:	CE ISO GMP
Model Number:	LDP

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiable
Packaging Details:	Standard Export Packing in Wooden case
Delivery Time:	IN 60 DAYS
Payment Terms:	T/T, L/C

Contact Now

Detailed Product Description

MachineType:	Stainless Steel Fluid Bed Granulating Coating Machine	Productivity (batch):	4 - 500 KGS
Working Time:	45-90 Min	Steam Pressure:	0.3~0.6 Mpa
Material Yield:	≥99%	Air Consumption:	0.4 - 2.4 M3/min
Steam Consumption:	9 -330 Kg/h	Selling Points:	Easy To Operate, High Efficiency
Material:	SUS304, SUS316L, Other, Stainless Steel304/316L	After Sales Service:	Online Support, Engineers Available To Service Machinery Overseas
High Light:	100L fluidized bed coater working , SS fluidized bed coater working , 330kg/h fluid bed processor for granulation

High Speed Granulating Coating Machine

Stainless Steel Vertical Type LDP Fluid Bed Granulating Coating Machine

Stainless Steel Fluid Bed Granulating Machine for Medicine and Chemical Industry

Fluid-bed coater is a new style coating equipment that combined fluid- bed spraying technology and coating well.

It is widel used for film slow and control releasing coating, framework slow and control releasing capsule, pellet coating.

Application:

1. Drugs granulation and coating.
2. Granulation: Tablet particles, granule particles, capsule particles.
3. Coating: particles, pill covers, color-prepared, slow-release, films, enteric coating.
4. Food granulation and coating Granulated sugar, coffee, cacao powder, cream, juice powder, amino acids, sauce, puffed food.
5. Pesticide, paint pigment, dry granulation Powder, granules, block materials.

Technical parameters

Specification Item			5	15	30	60	120	200	300-1000
Feed capacity		/ kg/batch	4-6	10-20	25-40	40-80	80-150	150-250
Raw material container volume		L	15	50	100	220	360	650
Fan power		Kw	4	5.5	7.5	15	18.5	22
Compressed air	Pressure	MPa	0.6
Compressed air	Consumption	M3/min	0.4	0.6	0.9	1.3	1.8	2.4
Steam	Pressure	MPa	0.4 -0.6
Steam	Consumption	Kg/h	9	64	85	181	250	330
Host size		H1(mm)	2600	2850	3150	3250	3500	3800	Custermorised Design
		H2(mm)		340	490	590	790	890
		H3(mm)		2630	2930	3020	3280	3580
		B1(mm)	1010	1160	1460	1660	2060	2260
		B2(mm)	1560	1860	2460	2860	3660	4060
		φ1(mm)	550	700	1000	1200	1600	1800
		φ2(mm)	180	250	250	280	280	315
		L(mm)	850	1550	1700	1800	2000	2100

All datas are used for reference only .According to the condition of material, our company has the right to change but not notice, pardon!

Features of equipment

Coating of bottom spraying,material flow in order. We can get uniform and continuous film

Taste masking odor,moisture proof, anti oxidation, prevent water, heat insulation,coloration and separation coating

Low productive cost, and the coating material is used perfectly

Short travel distance of fog granule and without the problem of spray drying

The design of cylinder for accelerator or cone for decelerate can coating of granule,big granule and pellets.

The high separate,without adhere.


FAQ
Q: How does the machine fit our voltage?

A: For each piece of equipment, our salesman will confirm the voltage with the customer.

Q: How can I buy the machine?

A: Firstly, our salesman will discuss with you all the details of the machine, the lead time and the payment condition.

Secondly, after receiving the 30% down payment, the production will begin. Finally, we’ll show you the photos and the test video of the finished machine. You pay the balance and the equipment will be shipped as scheduled, by our forwarder or by your familiar forwarder.

Q: How long is your machine’s warranty?

A: 12months after the delivery. During garuantee, we will offer the broken parts free of charge, if the problem isn’t caused by wrong operation.

Q. What can you provide for after-sale service?

A: We can send the engineer to the customer’s factory for the installation and operation training if the customer requires it. We can also supply the installation and operation instructions by video.

Q: If we have a very special request on the production line, could you help me to do the design?

A: Customized design is provided.
