Specializing in the production of pharmaceutical machinery and granulating drying equipment.
 |
| Place of Origin: | JIANGSU CHINA |
| Brand Name: | SNYNXN |
| Certification: | CE ISO GMP |
| Model Number: | 30B |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard Export Packing in Wooden case |
| Delivery Time: | IN 60 DAYS |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100 sets / year |
| Item Name:: | Dust Collecting Pulverizer | Output (kg/h):: | 5 - 800 Kg/h |
|---|---|---|---|
| Output Size (mesh):: | 20 - 120 Mesh | Material:: | SUS304, SUS304L, SUS316, SUS316L |
| Machine Type:: | High Productivity, Dust Collecting Pulverizer | Core Components:: | Bearing, Gear, PLC, Engine |
| Grinding Size: | 60-120 Mesh | Motor Power: | 4-15 KW |
| Material: | SUS304, SUS316L, Other, Stainless Steel304/316L | After Sales Service: | Online Support, Engineers Available To Service Machinery Overseas |
| High Light: | 800kg/h Dust Collecting Crusher,120 mesh Dust Collecting Crusher,20 mesh universal pulverizer |
||

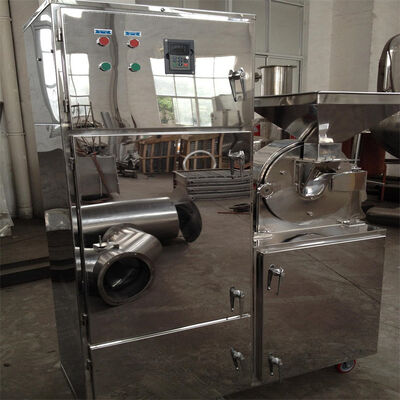

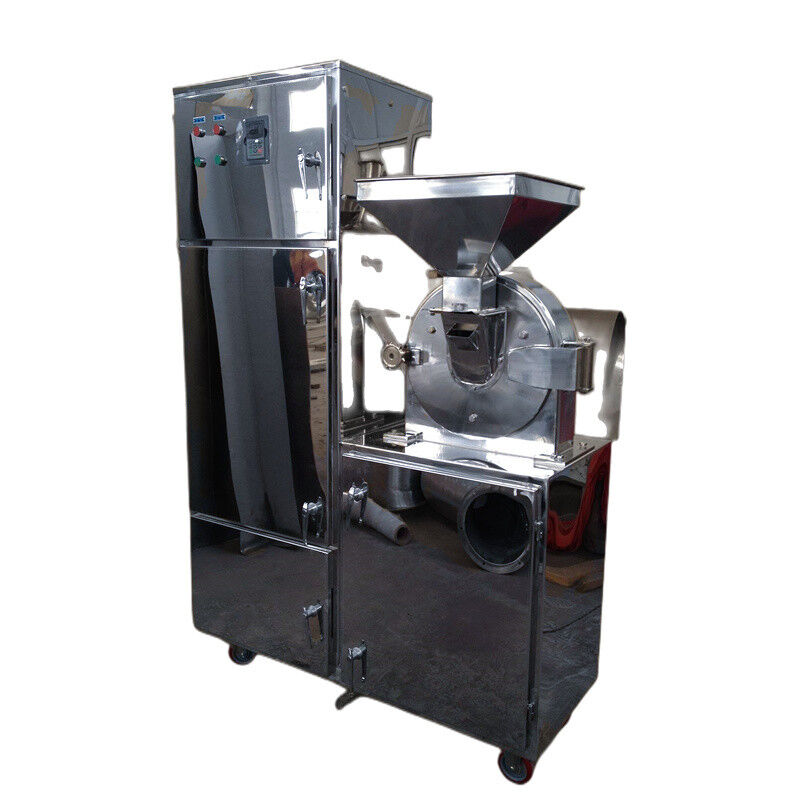

30B Dust Collecting Crusher Set Universal Pulverizer Machine In Pesticide Industries
30B Series Dust Collecting Crushing Set Pulverizer Machine Specifications
The machine(set) is extensively used in pharmaceutical, chemical food and pesticide industries for pulverzing dry brittle materials.

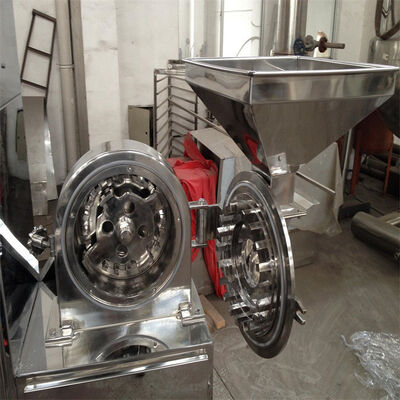

this machine is a new generation coarse crushing equipment combining crushing and dust collection as a whole.By means of relative motion between movable and fixed fluted discs, material is crushed through impact and friction of teeth and impact among material. The crushed material is entered into the catcher automatically under the effect of rotating centrifugal force, and the dust is filtered and recovered by dust collector through a bag.Designed according to GMP standard and wholly made of stainless steel, this machine has no flying dust during production, and can improve the utilization rate of material and reduce the cost of enterprise, thus reaching the international advanced level.
Technical parameters
| Model | 20B/20B (set) | 30B/30B (set) | 40B/40B (set) | 60B/60B (set) |
Productive capacity (kg/h) |
60-150 | 100-300 | 160 800 | 500 ~ 1500 |
Revolution of spindle (r/min) |
4500 | 3800 | 3400 | 2800 |
Size of fed material {mm} |
6 | 10 | 12 | 15 |
| () Grinding size (mesh) |
60-120 | 60-120 | 60-120 | 60-120 |
Power of motor (kw) |
4 | 5.5 | 11 | 15 |
Fan power(kw) |
0.55 | 0.75 | 1.1 | 2.2 |
Weight(kg) |
250 | 320 | 550 | 680 |
Notes:the outputs in list are only for reference, dur to the differences of material and the wanted sizes.
This device, a new generation of grinder equipment combining crushing and dust collection as a whole, is suitable for pharmacy,chemical, food , etc.
