Specializing in the production of pharmaceutical machinery and granulating drying equipment.
 |
| Place of Origin: | JIANGSU CHINA |
| Brand Name: | SNYNXN |
| Certification: | CE ISO GMP |
| Model Number: | CT |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard Export Packing in Wooden case |
| Delivery Time: | IN 60 DAYS |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100 sets / year |
| Application Products:: | Herb, Fruit,grain,vegetable,sea Food,meat Etc. | Machine Material:: | SUS304, SUS304L, SUS316, SUS316L |
|---|---|---|---|
| Temperature Range:: | 50~350℃ | Heating Method:: | Electric, Steam, Far Infrared |
| Selling Point: | Cost Save, High Efficiency Industrial Drying Oven Machine | Drying Capacity(kg/h): | 60-480 KG/Batch |
| Steam Pressure: | 0.2-0.8 Mpa | Drying Tray Size: | 460*640*45 Mm |
| Material: | SUS304, SUS316L, Other, Stainless Steel304/316L | After Sales Service: | Online Support, Engineers Available To Service Machinery Overseas |
| High Light: | Industrial Hot Air Drying Oven CE,Hot Air Drying Oven GMP,Meat CT fruit dehydrator machine |
||

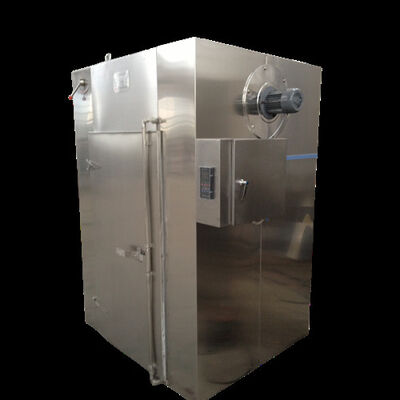

Industrial Hot Air Circulation Fruit Dehydrator Machine Turmeric Food Fruit Fish Meat CT Hot Air Drying Oven
CT-C series hot air circulation drying oven uses a low noise and high temperature proof axial flow blower and an automatic temperature control system. The whole circulation system is the fully enclosed to make that the heat efficiency of the drying oven increases from 37% of the traditional drying oven to 35-45% of the present one. The highest heat efficiency can reach 50%. The successful design of CT-C hot air circulation drying oven makes that the hot air circulation drying oven in our country catch the advanced level both at home and abroad. In order to save a large quantity of the energy in out country, in order to enhance the economic results of the enterprises, in 1990, the medicine management bureau of the State issued the industry standard and the uniform type is RXH.
Technical Parameter
No. |
Model |
Field standard model | Technical parameter | ||||||||
| Evaporate d area (m3) |
Effective volume (m3) |
Drying capacity (kg/batch) |
radiator area(m3) |
Steam consumption on(kg/h) | Electrical Heater power(kw) |
Fan volume (m3/h) | Fan power (kw) | ||||
| 1 | CT-C-O | RXH-7-C | 7.1 | 1.3 | 60 | 15 | 15 | 6-9 | 4510 | 0.45 | |
| 2 | CT-C-I | R×H-14-C | 14.1 | 2.6 | 120 | 23 | 20 | 15 | 4510 | 0.45 | |
| 3 | CT-C-II | R×H-27-C | 28.3 | 4.9 | 240 | 48 | 40 | 30 | 9020 | 0.45×2 | |
| 4 | CT-C-IIA | R×H-27-C | 28.3 | 4.9 | 240 | 48 | 40 | 30 | 9020 | 0.45×2 | |
| 5 | CT-C-III | R×H-41-C | 42.4 | 7.4 | 360 | 72 | 60 | 45 | 13530 | 0.45×3 | |
| 6 | CT-C-IIIA | R×H-41-C | 42.4 | 7.4 | 360 | 72 | 60 | 45 | 13530 | 0.45×3 | |
| 7 | CT-C-IV | R×H-54-C | 56.5 | 10.3 | 480 | 96 | 80 | 60 | 18040 | 0.45×4 | |
| 8 | CT-I | R×H-14-B | 14.1 | 2.6 | 120 | 23 | 20 | 15 | 1414 | 1.1 | |
| 9 | CT-II | R×H-27-B | 28.3 | 4.9 | 240 | 48 | 40 | 30 | 5230 | 1.1 | |
| 10 | CT-III | R×H-41-B | 42.4 | 7.4 | 360 | 72 | 60 | 45 | 9800 | 2.2 | |
| 11 | CT-IV | R×H-54-B | 56.5 | 10.3 | 480 | 96 | 80 | 60 | 9800 | 2.2 | |
1.Options of heat source: steam, electricity, or far infrared, or both steam electricity.
2.Drying temperature: steam heating 50-140ºC,Max. 150ºC .
3.Electricity and far infrared:50-350ºC. Automatic control system and computer control system on request.
4. There are automatic control system and computer control system for users' selection
5. Commonly used steam pressure 0.2-0.8Mpa(0.2-8 kg/cm2).
6. For CT-C-I,electric heated, rated power consumption: 15Kw, real consumption: 5-8Kw.
7. The special requirements should be indicated at the time of order.
8. Please consult as for any special requirements.
9. For operation temperature of over 140ºC or less than 60ºC,please indicate when order..
10. The ovens and baking trays made by our factory are uniform in dimensions, and can be exchanged each other.
11.Tray dimensions:460*640*45mm.
Overall dimension W×D×H |
() Equipped drying cart(set) | () Equipped drying tray (PC) |
Temperature automatic control box |
|
| 1380×1200×2000 | 1 | 24 | available | 820 |
| 2260×1200×2000 | 2 | 48 | available | 1580 |
| 2260×2200×2000 | 4 | 96 | available | 1800 |
| 4280^1200×2270 | 4 | 96 | available | 1880 |
| 2260×3200×2000 | 6 | 144 | available | 2100 |
| 3240×2200×2000 | 6 | 144 | available | 2210 |
| 4280×2200×2270 | 8 | 192 | available | 2800 |
| 2480×1200×2375 | 2 | 48 | none | 1220 |
| 2480×2200×2438 | 4 | 96 | none | 1530 |
| 3430×2200×2620 | 6 | 144 | none | 2110 |
| 4460×2200×2620 | 8 | 192 | None | 23 |
