Name: 1500Liters Rmg High Speed Mixer Granulator
Brand: SNYNXN
SKU: GHL 5
Rating: 5 (118 reviews)

Home Products High Speed Mixer Granulator

1500Liters Rmg High Speed Mixer Granulator

Product Details:

Place of Origin:	JIANGSU CHINA
Brand Name:	SNYNXN
Certification:	CE ISO GMP
Model Number:	GHL 5

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Film Wrapping, Wooden Box
Delivery Time:	WITHIN 50 DAYS
Payment Terms:	T/T, L/C
Supply Ability:	100 SET/ YEAR

Contact Now

Detailed Product Description

Machine Name:	RMG Wet Mixer Granulator	Application:	Pharmaceutical Rapid Mixer High Shear Glatt Speed Powder Granules
Output:	5 - 1500 Liters	Capacity:	1- 500 (kg/Batch)
Function:	Dry Mixing, Wet Mixing, Cutting	Voltage:	220V/380V/415V/600V
Mixing Power:	1.1-55Kw	Core Components:	Engine, Bearing, Motor (2 Years Warranty)
Marketing Type:	Brand New, IN STOCK	After-sales Service Provided:	Engineers Available To Service Machinery Overseas
High Light:	1500Liters High Speed Mixer Granulator , 500kg/Batch High Speed Mixer Granulator , 600V rmg rapid mixer granulator

Description of Wet Mixing Granulating Machine RMG

GHL Pharmaceutical Machines Wet Mixing Granulating Machine RMG For Pharma Wet Granulation Equipment

The machine is widely used in such industries as drug, food, dairy products, chemical industry, etc. It is a process machine widely applied during production, for example, the production of tablets, capsules, granules, and other wet granules. It has many functions such as mixing, granulating, etc.

Working Principle

The materials are fed into the granulating pot through the vacuum feeder or lifting feeder. After the action of centrifugal force of mixing paddle, the pressure liquid supply system injects the adhesive through the spray gun. Meanwhile, the cutter rotates at a high speed. The materials are bonded into hollow granules in the pot and discharged to the next procedure (granule sizing or drying) after the granulating is finished.

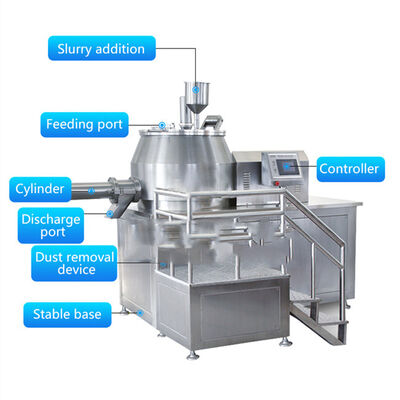

Structural Features

* The main machine adopts the most advanced design concept of SAR LABORTECNIC Company.The pot is of a conical structure.
* As the pot diameter is large, the granules formed are more even. Material reproducibility is ensured reliably.
* The interval between the pot and mixing paddle is controlled to be within 1.5mm. There are no material residues at the bottom of the pot.
* The machine is provided with the terminal control system to provide reliable guarantee for granulating reproducibility.
* It combines gas seal and mechanical seal. It is also provided with gas seal pressure upper and lower limits inspection.

Technical Parameters

Model	(mm) Dimensions			(Kg/batch) Capacity	(Kw) Impeller power	(kw) Chopper power	(Kw) Comill power
Model	L,L1	W	H,H1,H2,H3	(Kg/batch) Capacity	(Kw) Impeller power	(kw) Chopper power	(Kw) Comill power
GHL 3/6/12	905,835	500	1133,680,896,680	0.6-4.8	2.2	0.75	——
GHL 5/10/25	1077,950	600	1307,661,990,702	0.75-10	2.2	1.1	——
GHL 25/50	1165,1053	700	1310,664,1046,786	3.75-20	4	2.2	——
GHL 25	1078,950	600	1307,660,958,670	5-10	2.2	1.1	——
GHL 50	1590,1055	700	1309,660,1050,600	10-20	4	2.2	——
GHL 100	1625,1150	800	1576,766,1274,721	20-40	11	3	——
GHL 200	2039,1382	1123	1609,763,1400,700	30-80	18.5	5	2.2
GHL 300	2400,1750	1190	2400,1176,1816,1118	45-120	22	5.5	4
GHL 400	2367,2050	1466	2404,1180,950,1122	60-160	30	5.5	5.5
GHL 500	2420,2100	1500	2397,1173,1925,1114	75-200	37	7.5	7.5
GHL 600	2493,2250	1616	2754,1329,2121,1262	90-240	45	11	7.5

1500Liters Rmg High Speed Mixer Granulator 0

CERTIFICAITONS:

1500Liters Rmg High Speed Mixer Granulator 1

EXHIBITIONS:

1500Liters Rmg High Speed Mixer Granulator 2

OUR FACTORY:

1500Liters Rmg High Speed Mixer Granulator 3

Company Advantages:

More than 20 years old
The big factory with rich experience and technology in Jiangyin, Jiangsu China.
Have many customers all over the world.
Own many honors, awards and certificates.
Contact me by WHATSAPP 86-13921367085, provide video/photos ALIVE.
Our machine itself and our big factory will be our strongest and best explanations.
We have many machines in the stock, we will be glad if you can visit us to get more real and effective information about the machine.
