Specializing in the production of pharmaceutical machinery and granulating drying equipment.
 |
| Place of Origin: | JIANGSU CHINA |
| Brand Name: | SNYNXN |
| Certification: | CE ISO GMP |
| Model Number: | HTD 100 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard Export Packing in Wooden case |
| Delivery Time: | IN 60 DAYS |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100 sets / year |
| Machine Name:: | Post Bin Blender | Function:: | Mixing, Blending, Homogenzing |
|---|---|---|---|
| Range Of Spindle Speed(r.p.m):: | 3 - 20 R.p.m | Barrel Volume (L):: | 50-800 L |
| Core Components:: | Motor, Gear, Pressure Vessel, Gearbox, Pump, PLC, Bearing | Material: | SUS304, SUS316L, Other, Stainless Steel304/316L |
| Power: | 3-6.2 KW | Weight: | 700 - 1600 KGS |
| After Sales Service: | Online Support, Engineers Available To Service Machinery Overseas | ||
| High Light: | Automatic Post Bin Blender,HTD Post Bin Blender,800L industrial mixing machine |
||
Description: Automatic Lifting HTD Post Bin Blender
Industrial Mixing Machine Automatic Lifting HTD Post Bin Blender

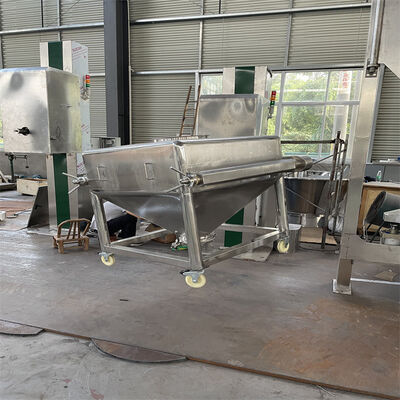

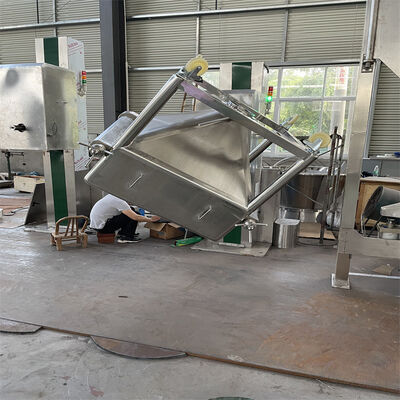

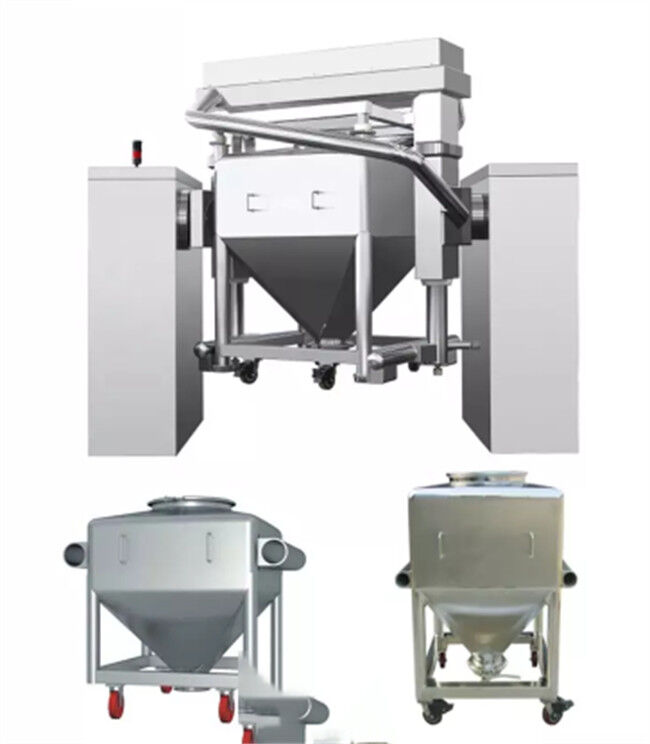

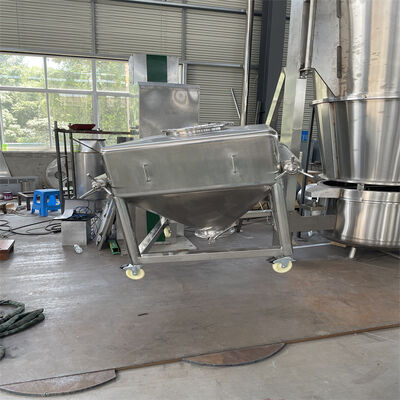

The machine is composed of colunm, machine base, rotation crotch, driving system, braking system, control system, etc. Push the mixing hopper into the rotation crotch and lock the nuts. Start the control system to lift the hopper to the mixing height and postition it reliably. The driving system will carry out automatic mixing according to the set time, rotation speed and other data. After the mixing operation is finished, the rotation crotch will stop vertically, the hopper will be printed. Loosen the locknuts of the ratary crotch and push the hopper out and transfer it to the next process.
Main features:
1. The machine has such features as resonable structure, stable performance, convenient operation, no dead corners, and no exposed bolts.
2.The gyrator (mixing hopper ) forms an included angle of 30 with the rotation axis. The materials in the mixing hopper rotate along with the gyrator and make tangential movement and achieving the best mixing effect.
3.PLC automatic control is adopted . it is provided with the infrared safety device and the discharging butterfly valve with the misoperation preventer to ensure safe production.
Novel design, compact structure and good appearance.Evenness of mixing reaches 99%, the volume charge coefficient reaches 0.8.
Low roating height, smooth running, reliable performance and easy operation.
Conforming to the requirement of GMP.Cone skip form can realize the material airtight transportation, avoid the pollution.Highly polised inner and outer surface of the barrel, no dead corner, easy to discharge materials, easy to clean, no cross contamination.
|
Model
|
HTD-50
|
HTD-100
|
HTD-200
|
HTD-300
|
HTD-400
|
HTD-600
|
HTD-800
|
|
Blending speed
|
3-20rpm
|
3-20rpm
|
3-20rpm
|
3-20rpm
|
3-20rpm
|
3-15rpm
|
3-15rpm
|
|
Net load
|
25
|
50
|
100
|
150
|
200
|
300
|
400
|
|
Total power
|
3.7KW
|
3.7KW
|
4.4KW
|
4.4KW
|
5.2KW
|
5.2KW
|
7KW
|
|
Machine weight
|
600kg
|
700kg
|
800kg
|
900kg
|
1000kg
|
1300kg
|
1600kg
|
|
Rotation
|
1500mm
|
1500mm
|
1950mm
|
2150mm
|
2250mm
|
2500mm
|
2600mm
|
|
Ceiling height
|
2500mm
|
2500mm
|
2500mm
|
2800mm
|
2800mm
|
2800mm
|
2800mm
|
|
Rotation width
|
1400mm
|
1400mm
|
1800mm
|
2000mmm
|
2100mm
|
2400mm
|
2500mm
|
|
Overall dimension
|
2045x1020
x2000mm
|
2045x1020
x2000mm
|
220x1202
x2300mm
|
2457x1306
x2300mm
|
2555x1445
x2400mm
|
2663x1583
x2500mm
|
2800x1730
x2500mm
|
|
Delivery Time:
|
45 working days after prepayment. Destination port: the Port at your option
|
|
Term of Payment &
Price valid until
|
30%TT deposit, 70%TT before delivery .60 days from offering date
|
|
Package
|
Export standard and sea worthy wooden case.
|
|
Port of Shipment
|
Shanghai port.
|
|
Warranty
|
Guarantee 12 months since installation and no more 16 months after delivery.
|
|
Quality of Goods:
|
100% brand new, manufactured in the year. Origin of Goods: China.
|
