Cassava Flour Masala Industrial Pulverizer Machine Multiuse Electric Pepper Grinder

Product Details:

Place of Origin:	JIANGSU CHINA
Brand Name:	SNYNXN
Certification:	CE ISO GMP
Model Number:	40B

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Standard Export Packing in Wooden case
Delivery Time:	IN 30 DAYS
Payment Terms:	T/T, L/C
Supply Ability:	100 sets / year

Contact Now

Detailed Product Description

Type:	Multiuse Pulverizer Machine	Capacity:	20-1000 Kg/h
Application:	Chemicals Processing, Food Processing, Medicine Processing	Fineness Diameter:	15 - 90 MESH
Speed Control:	Siemens VFD Controller	Fan Motor:	0.37-1.5KW
Control System:	Button Control	Cooling Syste:	Water Cooling
Voltage:	220/380/415V	Showcase Location:	Egypt, Indonesia, Pakistan, Thailand, Kenya, UAE, Algeria
Highlight:	Cassava Flour Industrial Pulverizer Machine , Masala Industrial Pulverizer Machine , Multiuse electric pepper grinder

Product Description: Industrial Grinding Mill Machine

Multiuse Pulverizer Machine For Cassava Flour Masala Grader Pepper Spices Powder Crushing and Grinding Machine

Stainless Steel Cassava Flour Hammer Grinding Mill Machine is a multifunctional fine powder grinder.

It can grind powder at 20-120mesh. It is widely application for pharmaceutical industry, chemical industry, foodstuff industry, etc. such as sugar, salt, crystal material; chili, pepper, pimento, coriander, cumin, cinnamon, cardamom, star anise, celery seed, ginger, licorice; rice, chaff, corn, sweet potato bran, cocoa bean, coffee, etc. .

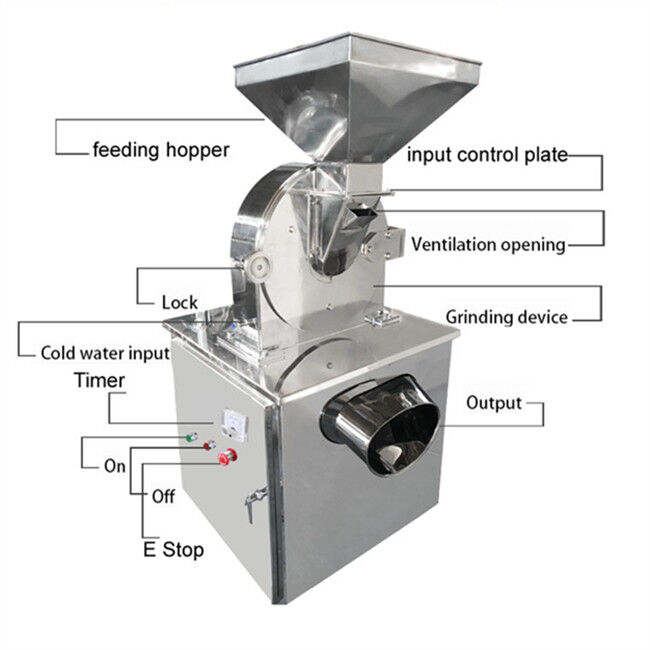

Working Principle

There are a disc with several moving tools as a rotor and serrated liners as stator.

The big raw material, being fed into the crushing chamber through a hopper, is sheared, cut, impacted into small size by the rotor and stator.

The crushed product goes out automatically via a sieve and discharged from the outlet port.
It is designed according to cGMP standard and made of stainless steel.

With the features of simple structure, easy cleaning, low noise, etc.

Technical specifications

Model	Capacity (kg/h)	Shaft speed (r/min)	Fineness size (mesh)	Motor power(kW)	Weight (kg)	Dimension (without dust collector) (mm)	Dimension (with dust collector) (mm)
10B	10-50	6000	2-120	3	85	550400850	11004001250
20B	60-150	4500	2-120	4	180	5506001250	11006001650
30B	100-300	3800	2-120	5.5	260	6007001450	12007001650
40B	160-800	3400	2-120	7.5	360	7508001550	13508001700
50B	200-1000	3200	2-120	11	450	8008501600	14508501750
60B	300-1500	2800	2-120	15	550	10009001680	155010001750
80B	400-2000	2000	2-120	22	850	11009501960	170010002000
100B	500-3000	1500	2-120	30	1200	135010002100	200012002150

Cassava Flour Masala Industrial Pulverizer Machine Multiuse Electric Pepper Grinder 0

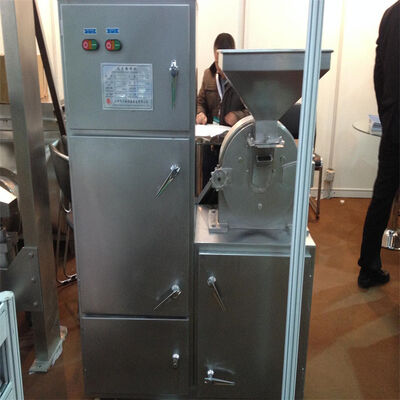

Trade Fair Exhibitions:
We will attend several ten trade fairs domestic and overseas in one year normally,

like Canton Fair, FIC, CPHI, CIPM, ANUGA FOOD TEC., COLOGNE PROSWEETS ETC.

We expect to meet with you!

Cassava Flour Masala Industrial Pulverizer Machine Multiuse Electric Pepper Grinder 2

Cassava Flour Masala Industrial Pulverizer Machine Multiuse Electric Pepper Grinder 3

Cassava Flour Masala Industrial Pulverizer Machine Multiuse Electric Pepper Grinder 4

Company Introduction

SNYNXN has a plant area of more than 10,000 square meters, which produces Fluid bed Dryer, Drying machines, Fluid bed Granulating Machine, Grinding machine, Mixing Machine, Evaparator etc. which are exported to hundreds of countries and regions in Southeast Asia, Europe, America, Africa, the Middle East, etc., and are well received by users from all over the world! Welcome to Visit us.
