Specializing in the production of pharmaceutical machinery and granulating drying equipment.
 |
| Place of Origin: | JIANGSU CHINA |
| Brand Name: | SNYNXN |
| Certification: | CE ISO GMP |
| Model Number: | SYH 100 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard Export Packing in Wooden case |
| Delivery Time: | IN 30 DAYS |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100 sets / year |
| Type: | SYH-100L 3D Mixer Machine | Usage: | Mixing Powder |
|---|---|---|---|
| Material Processed: | Chemicals, Food, Medicine | Speed Control: | Inverter Frequency Control |
| Speed: | 0-15rpm | Discharge: | Bottom Discharge |
| Core Components: | Motor, Gear, Pressure Vessel, Gearbox | Key Selling Points: | Multi-functional, High Uniformity. |
| Marketing Type: | Hot Selling Product 2022 | After Sales Service: | Online Support, Engineers Available To Service Machinery Overseas |
| High Light: | 15rpm motion mixer,3D motion mixer,Powder commercial flour mixer machine |
||

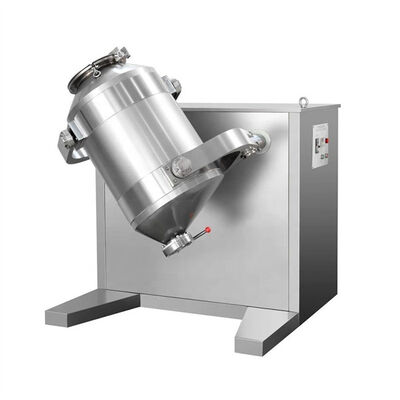

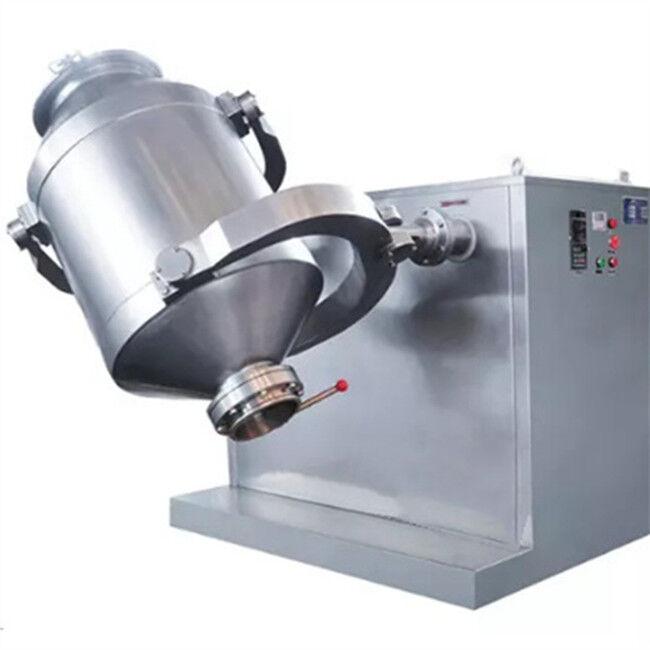

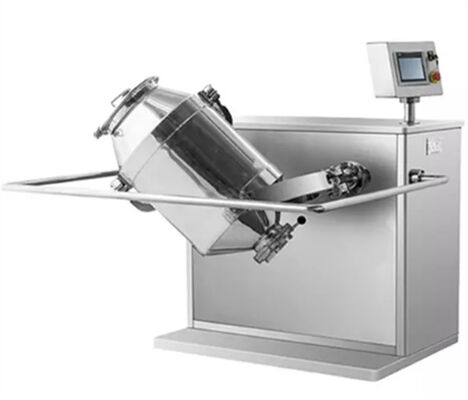

Easy To Operate 3D Motion Mixer For Powder Industrial Flour Mixing Equipment

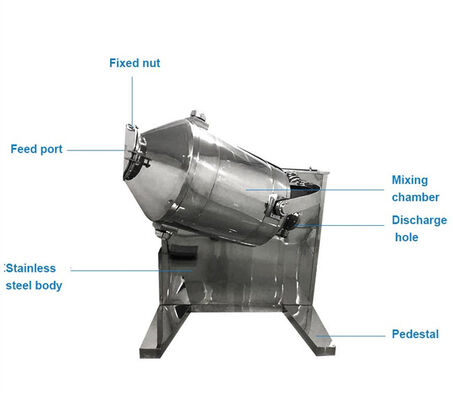

It has such characteristics as cross and mutually vertical state in space, and mixing drum controlled by Y-type universally-jointer drive and passive shaft. If the drive shaft turns around, the mixing drum will set in rotation, meanwhile setting in multi-directional oscillation at 4 times autorotation speed. Under the actions of diffusion, flow and shearing due to frequent and rapid rotation, material are mixed together. Besides, the material are mixed under the rotation of the mixing drum without centrifugal force, which brings slow-down in gravity segregation and gives guarantee that mixture can fully meet the requirements on the condition of mixing them for a short time.
1. mixing barrel with X, Y, Z direction of the three-dimensional movement, the material in the container for rotation, flip, turbulence and shear, so that the material does not produce accumulation in the mixing phenomenon, the specific gravity, different density and state Material mixing does not produce the influence and deflection of centrifugal force;
2. the mixing time is only 6-12 minutes / time;
3. mixed even rate of up to 99% or more;
4. low noise, low power consumption, long life, small size, simple structure, easy to operate and maintain;
5. according to the material mixing requirements, adjust the time relay can be reasonable use of mixing time; in the dry material mixed at the same time, also has a regular quantitative spray granulation device function.
6. the material mixed loading capacity of 70% of the barrel capacity, is the ordinary mixer load capacity of two times.
7. because the mixing bucket clean and no other devices, so the replacement of varieties or cleaning is very convenient.
8, according to the user to mix the different requirements or replacement varieties (such as color, etc.) mixed, the machine mixing barrel with a number of mixing barrels, or built-in mixing bucket way to load and unload a number of mixing barrels, you can Become a multi-purpose machine, not only save the cost, do not take the venue, but also to avoid cross-infection of materials, save time, labor, greatly improve economic efficiency. Is unmatched by all other mixers.
Technical Parameters
| Model | SYH-10 | SYH-20 | SHY50 | shy-100 | SHY-200 | SHY-600 | SHY-1000 | SHY-1500 |
| Barrel capacity(L) | 10 | 20 | 50 | 100 | 200 | 600 | 1000 | 1500 |
| Max. loading volume(L) | 8 | 16 | 40 | 80 | 160 | 480 | 800 | 1100 |
| Max. Loading weight(kg) | 5 | 10 | 25 | 50 | 100 | 300 | 600 | 750 |
| Speed of principal axis(r/min) | 0-15 | 0-15 | 0-12 | 0-12 | 0-12 | 0-10 | 0-8 | 0-8 |
| Power(kw) | 0.37 | 0.37 | 1.1 | 1.5 | 2.2 | 5.5 | 7.5 | 11 |
| Weight(kg) | 100 | 150 | 200 | 500 | 800 | 1300 | 1500 | 1800 |
