GHL Chemical Wet Mixing Granulator Powder Rapid Mixer Granulation High Shear Mixer

GHL Chemical Wet Mixing Granulator Powder Rapid Mixer Granulation High Shear Mixer

  • GHL Chemical Wet Mixing Granulator Powder Rapid Mixer Granulation High Shear Mixer
  • GHL Chemical Wet Mixing Granulator Powder Rapid Mixer Granulation High Shear Mixer
  • GHL Chemical Wet Mixing Granulator Powder Rapid Mixer Granulation High Shear Mixer
  • GHL Chemical Wet Mixing Granulator Powder Rapid Mixer Granulation High Shear Mixer
GHL Chemical Wet Mixing Granulator Powder Rapid Mixer Granulation High Shear Mixer
Product Details:
Place of Origin: JIANGSU CHINA
Brand Name: SNYNXN
Certification: CE ISO GMP
Model Number: GHL 400
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Film Wrapping, Wooden Box
Delivery Time: WITHIN 50 DAYS
Payment Terms: T/T, L/C
Supply Ability: 100 SET/ YEAR
Contact Now
Detailed Product Description
Product Type: FERTILIZER, Granulator Working Volume: 60-150L
Granulation Speed: 50-3000rpm Output (kgs/Batch): 1 - 500
Applicable Industries: Manufacturing Plant, Machinery Repair Shops, Food & Beverages Plant Compressed Air: 0.4-0.6 MPa
Operating Time: Mixing: 2min Granulation:7-14min Warranty Of Core Components: 5 Years
Weight (KG): 1000 After Sales Service: Online Support, Engineers Available To Service Machinery Overseas
High Light:

GHL rapid mixer granulation

,

Chemical rapid mixer granulation

,

150L high shear mixer granulator

Name: Wet Mixing Granulator Rapid Powder Mixer Granulator

GHL Type Chemical High Speed Wet Mixing Granulator Rapid Powder Mixer Granulator

Description:

The granulator of wet particles of powder injection binder is in the fields of pharmacy, food, chemical industry, etc.

Features

1. It is the structure of horizontal cylinder (cone).
2. Full sealed driving shaft, to use water when cleaning.
3. Fluidization granulation, the finished granules are similar to roundness with good liquidity.
4. Compared with traditional process, it can reduce 25% binder and the dry time can be shortened.
5. Each batch of materials will be dry-mixed for 2 minutes and be granulated for 1-4 minutes. Compared with traditional process,it has improved by 4-5 times.
6. All the processes of dry-mixing & wet-mixing & granulating are finished in a closed vessel. So that it has reduced the process and also compiles with GMP standard.
7. Whole operation has the strict safety precautions.

Main Technical Data
Model
GHL-200
GHL-300
GHL-400
GHL-600
Volume
200L
300L
400L
600L
Output
30-75kgs/batch
30-120kgs/batch
50-150kgs/batch
/
Operating time
Mixing:2min Granulation:7-14min/batch
Mixing:8min Granulation: 15-20 min/batch
Size of the finished granule
Φ0.14-Φ1.5mm(12mesh-100mesh)
Mixing Speed
30-260rpm
30-220rpm
25-220rpm
20-200rpm
Mixing power
15kw
18.5kw
22kw
30kw
Granulation Speed
50-3000rpm
Granulation power
4kw
5.5kw
7.5kw
11kw
Air compressor
0.5m³ 0.7Mpa (prepared by buyer)
Inlet of cooling water and compressed air
Φ10mm
Height of the output
985mm
1150mm
Dimension
2180×810×1950mm
2420×1060×2150mm
2420×1060×2150mm
2980×1200×2500mm
Weight
1350kg
1600kg
1900kg
2200kg

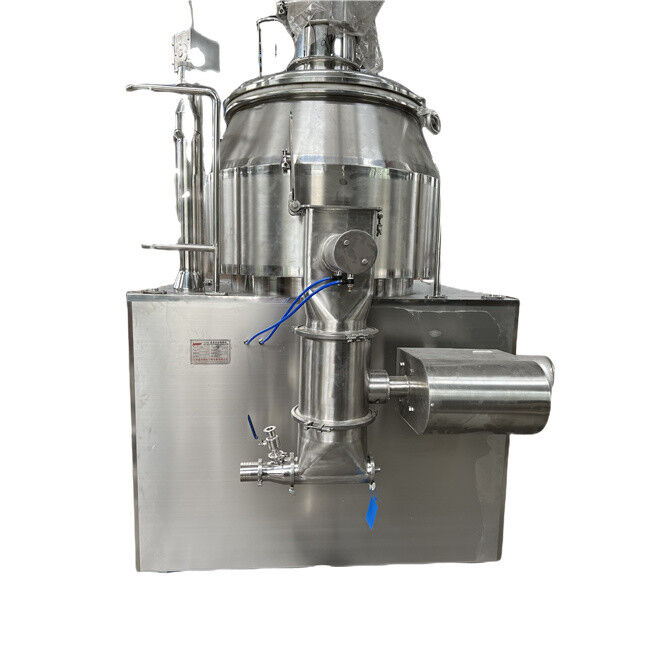

GHL Chemical Wet Mixing Granulator Powder Rapid Mixer Granulation High Shear Mixer 0

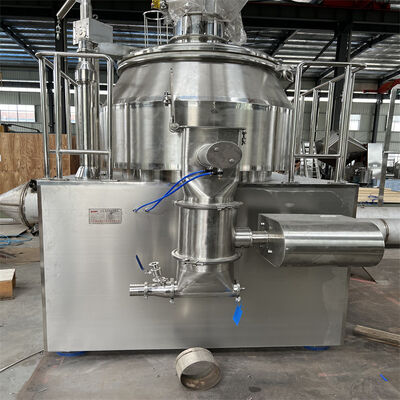

GHL Chemical Wet Mixing Granulator Powder Rapid Mixer Granulation High Shear Mixer 1

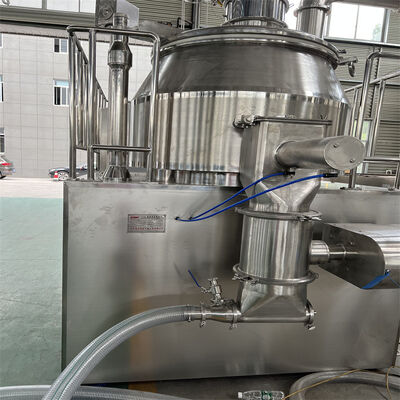

GHL Chemical Wet Mixing Granulator Powder Rapid Mixer Granulation High Shear Mixer 2

Our Company

- Since year 2007, SNYNXN CHINA had started manufacturing Pharmaceutical machines such as Drying Machine, Granulating Machine,     Crushing Machine, Mixing Machine and Evaporating equipment.
- SNYNXN CHINA designs different types of Pharmaceutical Materials Preparation Drying lines for customers, including standard or non-standard models.
- SNYNXN CHINA's machinery = High automation + High precision + More energy saving + Satisfactory warranty and after-sales service +   Trusted brand

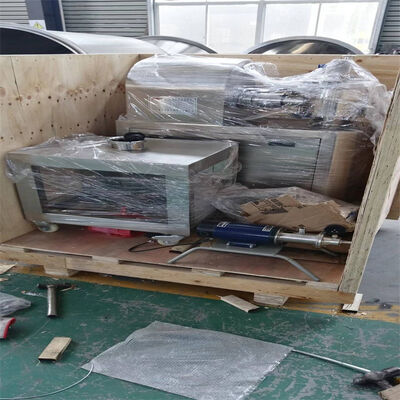

Packing & Shipping: All machine delivery with anti rust spray, film wrapping and Sea shiping affordable wooden box.

FAQ

Q: What price terms you offer?
A: We can offer FOB, FCA, CFR, CIF, EXW and other price terms based on your request.

Q: Will you help with installation and stuff training?
A: Yes, we can send our engineers to your place to guide the installation and train your workers if you need, but the buyer should
bear our technician's round tickets, accomodation, food and subsidiary USD100/day.

Q: How can I visit your factory?
A: Our factory is located in Jiangyin city Jiangsu Province. Just let us know your schedule in advance and we will arrange
everything for you!

Any other doubts about our machine, please feel easy to contact with us.
