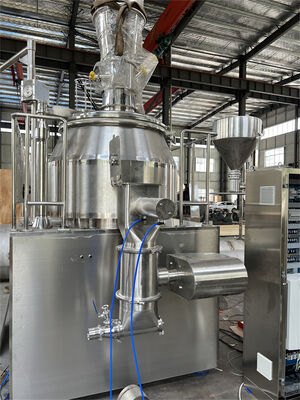

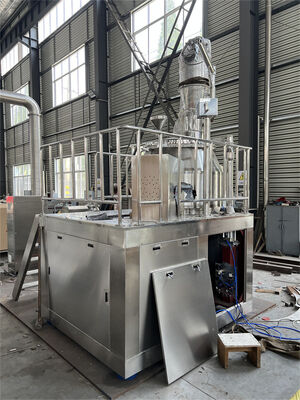

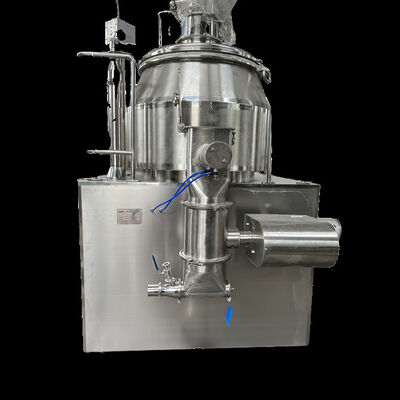

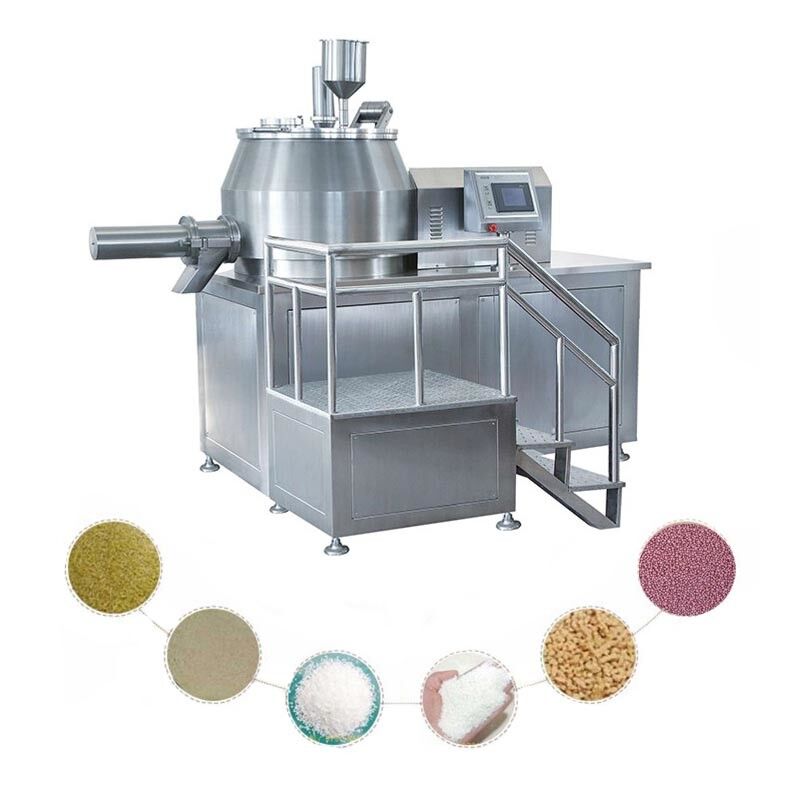

Wet Pharmaceutical High Speed Mixer Granulator Machine For Same Size Granules

Name: Wet Pharmaceutical High Speed Mixer Granulator Machine For Same Size Granules
Brand: SNYNXN
SKU: GHL 1000
Rating: 4.9 (180 reviews)

Product Details:

Place of Origin:	JIANGSU CHINA
Brand Name:	SNYNXN
Certification:	CE ISO GMP
Model Number:	GHL 1000

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Film Wrapping, Wooden Box
Delivery Time:	WITHIN 50 DAYS
Payment Terms:	T/T, L/C
Supply Ability:	100 SET/ YEAR

Contact Now

Detailed Product Description

Machine Type:	Large Scale Mixer Granulator	Application:	Pharmaceutical Rapid Mixer High Shear Glatt Speed Powder Granules
Process Materials:	Cosmetic, Food, Fertilizer, Ceramic Etc.	Productive Capacity:	1 - 500 (kgs/Batch)
Key Selling Points:	High-accuracy	Marketing Type:	Hot Product 2020
Machine Keywords:	Mixing And Granulating Machine	Core Components:	PLC, Bearing, Motor (2 Years Warranty)
Old Customer Location:	Canada, Turkey, United Kingdom, United States, Italy, France	After-sales Service Provided:	Engineers Available To Service Machinery Overseas
High Light:	Wet High Speed Mixer Granulator , 500kgs/Batch High Speed Mixer Granulator , Large Scale pharmaceutical granulator machine

Type: High efficiency Wet Type Mixing Granulator For Pharmaceutical

Wet Type Pharmaceutical Granulator Machine For Making Even same size Granules

Description:

GHL-1000L Wet-type mixing and granulating machine is widely applied for the thermal crushing and granulating for those sensitive material or granulating in pharmaceutical industry.

Working principle:

There are mixing paddles at the container bottom, and after powders and adhesives are put into the pot, will be mixed completely to be soft and wet dough, and then be cut into even granules.

Features:

1. The horizontal structure is reasonable.
2. When the well-sealed drive shaft needs to be cleaned, water can be used.
3. With the fluid-bed granulating, after the production, granules are just like balls, and the fluidity is good.
4. Adhesive consumption is less, and the drying time is less (Drying mixing time per batch: 2minutes. Granulating time: 1 ~ 4minutes).
5. The granulating efficiency is high.
6. All processes, including the dry mixing, the wet mixing and the granulating, are all completed in a well-sealed container,
which meets the GMP standard.
7. There is the safety device.

Basic Technical Data:

Model	GHL-250	GHL-300	GHL-400	GHL-600	GHL-800	GhL-1000	G-L-1200	GHL-1500
	GHL-250	GHL-300	GHL-400	GHL-600	GHL-800	GhL-1000	G-L-1200	GHL-1500
Capacity (L)	250	300	400	600	800	1000	1200	1500
Production capacity (kg/)	80	120	150	200	250	300	400	500
Stirring power(kw)	11	15	22	30	37	45	45	55
Mixing time(min>
Stirring speed(r/min)			0-150			0-110
Cutting power(kw)	5.5	7.5	11	15	18.5	22	22	30
Cutting time(min)
Cutting speed(r/min)
Compressed air pressure(Mpa)
Amount of compressed air(m3/min)		1.1		1.5			1.8

Wet Pharmaceutical High Speed Mixer Granulator Machine For Same Size Granules 0

CERTIFICAITONS:

Wet Pharmaceutical High Speed Mixer Granulator Machine For Same Size Granules 1

EXHIBITIONS:

Wet Pharmaceutical High Speed Mixer Granulator Machine For Same Size Granules 2

OUR FACTORY:

Wet Pharmaceutical High Speed Mixer Granulator Machine For Same Size Granules 3

FAQ

Q1: Are you a manufacturer or a trader?

A: As a professional manufacturer, we have our own factory, and if a customer has reasonable demand, out machine can be customized.

Q2: How do you ensure the machine quality?

A: As a professional manufacturer of pharmaceutical devices for more than 15years, with strict management, advanced

processing technologies and professional workers, we are confident for our machines quality. And before any

machine is delivered, will be carefully tested.

Q3: How can I trust you for the first cooperation?

A: Since our company was founded, we have registered in China Industry and Commerce Bureau. We passed the SGS &

ISO certification, and we are a senior member in Alibaba international platform (more than 12years). For the first deal between us, the Alibaba's Trade Assurance service can be used, which will fairly protect your rights and money throughout the transaction process.

Q4: How do I place an order, and how is it completed?

A: Under the condition that the buyer is satisfied with the quotation and pre-sales service:

1. Both of parties sign on a contract, and then the seller prepare the PI.

2. The buyer arranges the down payment.

3. The seller prepares the machines.

4. After the machine is completed, have the test & trial run.

5. Before the delivery, if the buyer requires, have the necessary inspecting.

6. As per the contract/ PI amount, the buyer balances the payment.

7. The machine is going to be shipped.

8. After the machine is received, the seller provide the buyer guidance for the installation and the debugging.
