Specializing in the production of pharmaceutical machinery and granulating drying equipment.
Place of Origin: | JIANGSU CHINA |
Brand Name: | SNYNXN |
Certification: | CE ISO GMP |
Model Number: | SYH 200 |
Minimum Order Quantity: | 1 |
---|---|
Price: | Negotiable |
Packaging Details: | Standard Export Packing in Wooden case |
Delivery Time: | IN 30 DAYS |
Payment Terms: | T/T, L/C |
Supply Ability: | 100 sets / year |
Product Name: | Industrial Powder Mixing Machine | Mixing Type: | Homogenizer |
---|---|---|---|
Max. Loading Capacity: | 180 | Material Processed: | Plastics, Chemicals, Food, Medicine |
Range Of Spindle Speed: | 1 - 15 R.p.m | Core Components: | Motor, Gear, Pressure Vessel, Gearbox, Pump, PLC |
Key Selling Points: | High Safety Level, High Uniformity, Cost Effective | After Sales Service: | Online Support, Engineers Available To Service Machinery Overseas |
Highlight: | SNYNXN Rotary Multi Direction Mixer,3D Drum Multi Direction Mixer,15rpm ribbon blender machine |
Product Description: Multi Direction Moving Ribbon Blender Mixer

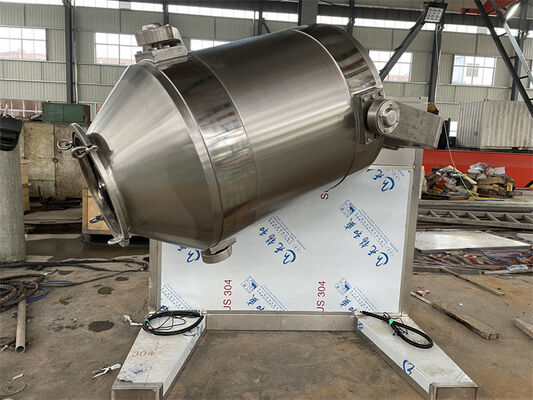

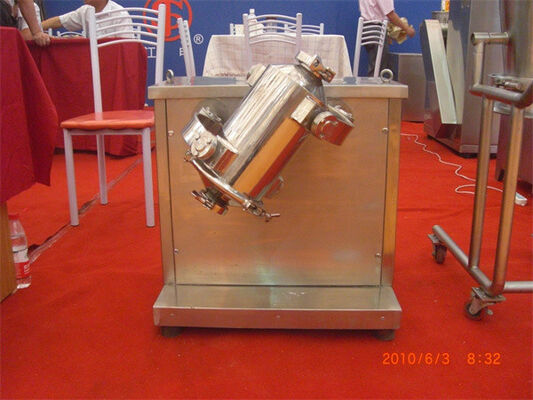

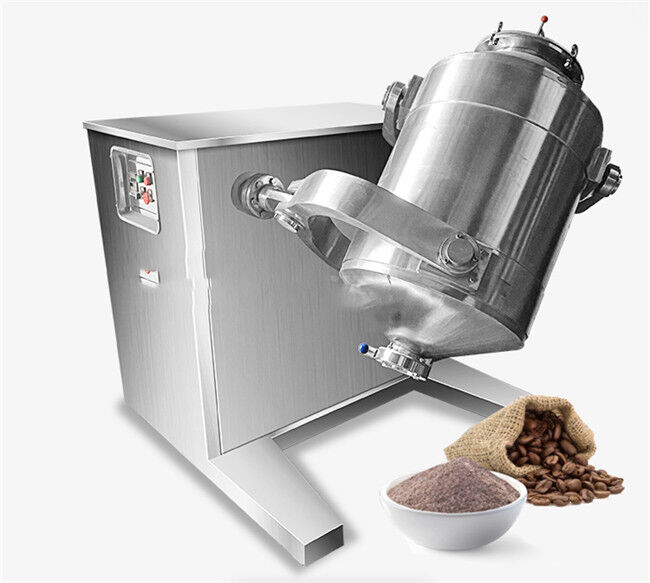

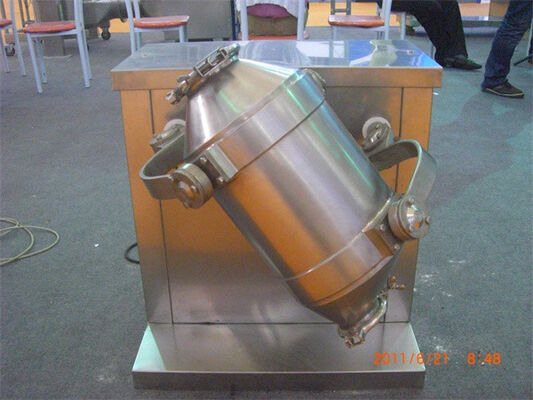

Rapid Rotary 3D Drum Multi Direction Moving Ribbon Blender Mixer Mixing Machine For Herbal Powder
SYH series Three-dimension Mixer is a novel material mixing machine widely applied to industries such as pharmaceutical, chemical, foodstuff, and light industry as well as R&D.institutes.
1. The machine can perform a very uniform mixing of power or granule materials with good mobility.
2. Because the mixing tank rotates in multiple directions, there is no centrifugal force acting on the material, as well as no phenomena of gravity segregation, delamination, and accumulation of materials so the mixing rate can be up to 99.9%.Therefore, it is an ideal product currently compared with other various mixers.
3. The tank has a high loading rate max.80% so its mixing efficiency is high and short mixing time.
4. The barrel transitional radius everywhere, and also has been polished, which has achieved GMP quality standards.
Technical Parameters
Model | SYH-5 |
SYH- 15 |
SYH- 50 |
SYH- 100 |
SYH- 200 |
SYH- 400 |
SYH- 800 |
SYH- 1000 |
Capacity(L) | 5 | 15 | 50 | 100 | 200 | 400 | 800 | 1000 |
Max Loading Volume(L) |
4.5 | 13.5 | 45 | 90 | 180 | 360 | 720 | 900 |
Maximum loading weight(kg) | 1.5-2.7 | 4-8.1 | 15-27 | 30-54 | 50-108 | 100-216 | 200-432 | 250-540 |
Spindle speed(r/min) | 0-20 | 0-20 | 0-20 | 0-20 | 0-15 | 0-15 | 0-10 | 0-10 |
Motor power(kw) | 0.25 | 0.37 | 1.1 | 1.5 | 2.2 | 4 | 7.5 | 11 |
Weight(kg) | 100 | 200 | 300 | 800 | 1200 | 1200 | 1700 | 1800 |
SNYNXN is a professional manufacturer and supplier of pharmaceutical and chemical machinery and equipment in China.
We have a well-experienced team to manufacture pharmaceutical machinery and equipment and a professional design institute. With rich experience in pharmaceutical machinery and equipment field and numbers of professional engineers, we have designed and developed many types of machinery and equipment in many varieties. Our main products are granulators, mixers, dryers, pulverizers.
In the past years, we have made great achievements due to our good credit and service. We have established long-term business relations with many customers and some of our overseas customers have appointed us to be their purchase agency in China.
Our products are exported to many countries & areas, such as Korea, India, Indonesia, Pakistan, Thailand, Vietnam, Japan, Denmark, Romania, Bulgaria, Russia, South Africa, Nigeria, the USA, Australia, Canada, Argentina and Chile.
Besides machinery and equipment, we also supply production lines, turn key projects and know-how. In SNYNXN you can get your desired goods with the best prices and good quality.
We welcome your enquiries from home and abroad.
