Specializing in the production of pharmaceutical machinery and granulating drying equipment.
Place of Origin: | JIANGSU CHINA |
Brand Name: | SNYNXN |
Certification: | CE ISO GMP |
Model Number: | 30B |
Minimum Order Quantity: | 1 |
---|---|
Price: | Negotiable |
Packaging Details: | Standard Export Packing in Wooden case |
Delivery Time: | IN 60 DAYS |
Payment Terms: | T/T, L/C |
Supply Ability: | 100 sets / year |

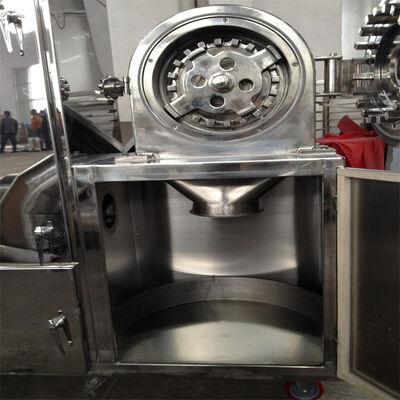

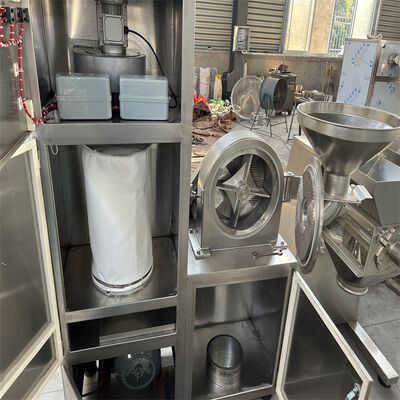

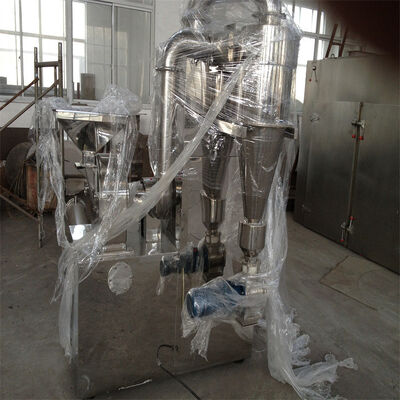

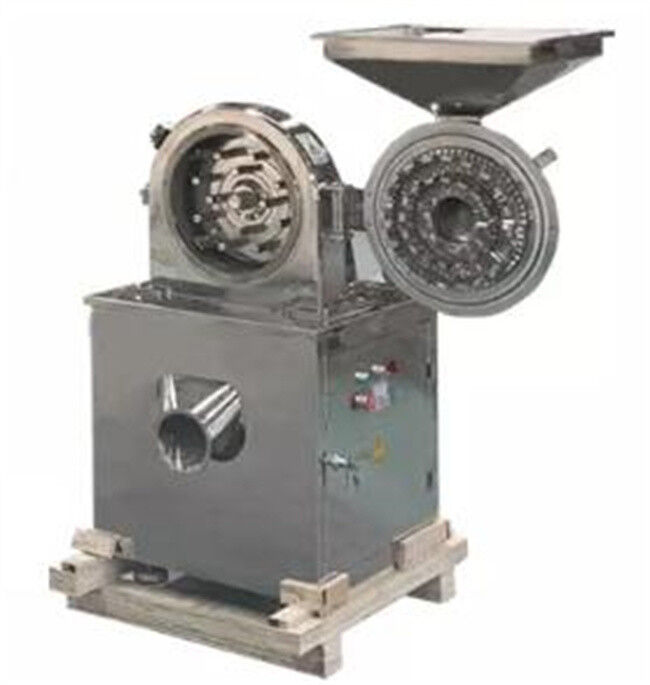

Machine Type: | Multi Functional Crusher | Output (kg/h):: | 5 - 800 Kg/h |
---|---|---|---|
Range Of Spindle Speed: | 2200 - 4500 R.p.m | Power: | 4-37 Kw |
Usage: | Make Super Fine Powder | Output Size (mesh):: | 20 - 120 Mesh |
Core Components:: | Bearing, Gear, PLC, Engine | Key Selling Point: | High-precision, Dust Collecting |
Material: | SUS304, SUS316L, Other, Stainless Steel304/316L | After Sales Service: | Online Support, Engineers Available To Service Machinery Overseas |
Highlight: | 800kg/h Industrial Pulverizer Machine,Multi Functional Industrial Pulverizer Machine,GMP tea leaf grinding machine |
Technical parameters
Model | 20B/20B (set) | 30B/30B (set) | 40B/40B (set) | 60B/60B (set) |
Productive capacity (kg/h) | 60-150 | 100-300 | 160 800 | 500 ~ 1500 |
Revolution of spindle (r/min) | 4500 | 3800 | 3400 | 2800 |
Size of fed material {mm} | 6 | 10 | 12 | 15 |
Grinding size (mesh) | 60-120 | 60-120 | 60-120 | 60-120 |
Power of motor (kw) | 4 | 5.5 | 11 | 15 |
Fan power(kw) | 0.55 | 0.75 | 1.1 | 2.2 |
Weight(kg) | 250 | 320 | 550 | 680 |
Hammer type is better on little hard material like stone. If grinding grain cost a longer time.
Turbo wheel type is best in fineness degree of flour, even oil material. Only notice its big noise.
Refiner disc type is main use for make food condiments, such as spice, ginger, curry flour.
Blade cut type has special effect on material with fiber, like herb. Flour with very high uniformity.
