Pharmaceutical Granulator Multi Functional Cone Mill Machine High Speed Granulator

Product Details:

Place of Origin:	JIANGSU CHINA
Brand Name:	SNYNXN
Certification:	CE ISO GMP
Model Number:	KZL 120

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Standard Export Packing in Wooden case
Delivery Time:	IN 30 DAYS
Payment Terms:	T/T, L/C
Supply Ability:	100 sets / year

Contact Now

Detailed Product Description

Features:	Multi-functional，compact Structure	Type:	KZL Multi Functional Cone Mill
Application:	Granule Milling	Screen Diameter:	1-8mm
Capacity:	20-2500 KG/H	Rotation Speed:	960t/min
Core Components:	PLC Engine, Bearing, Gearbox, Motor	Key Words:	Pharmaceutical Cone Mill
After Warranty Service:	Video Technical Support, Online Support, Spare Parts	Showroom Location:	Egypt, Turkey, Viet Nam, Brazil, Saudi Arabia, Pakistan, Russia, Thailand
Highlight:	Pharmaceutical Cone Mill Machine , 2500KG/H Cone Mill Machine , 20KG/H pharmaceutical granulator

Description of KZL series Medicine Powder fast Grinding Granulator

High Quality Pharmaceutical Multi Functional Cone Mill High Speed Granulator

For agglomerating materials from wet granulation and spraying pelleting and unqualified pills, it utlizes the high speed relative motion between the impeller and the sieve, which make the agglomerating materials granulated through the sieve pores under the crush of the impeller, and then the finished particles are discharged from the machine quickly with less heat, high efficiency and good quality. It is ideal for granulating coarse materials, low-viscous clumps, gums and wet materials.

Working Principle

Adding raw material from feeding hopper and fixing the granulating knives. The material goes into the sieve room and touches screen mesh of high rotating speed. The fixed granulating knives crush larger particles by centrifugal force. The whole progress is finished when the required material put out.

Features

1. compact structure, high production capacity, easy to replace.

2. Transmitted by leather belt with low noise, drive system is isolated with material without pollution.

Technical Parameter

KZL TABLE TYPE HIGH SPEED GRANULATOR
Model	80	120	160	180	200
Spring Length(mm)	55	80	120	135	140
Screen Diameter(mm)	1-8	1-8	1-8	1-8	1-8
Capacity(kg/h)	20-50	100-200	100-300	100-400	200-500
Motor Power(kw)	0.55	1.1	1.5	1.5-2	2.2-3
Rotation Speed(r/min)	Normal 2800 r/min or Frequency 300-3600 r/min	Frequency 200-1500r/min or 400-300r/min
Overall Dimension(mm)	780280750	850450 1100	900500 1480	1000520 1480	1250500 1450
Approx. Weight(kg)	50	150	180	200	250

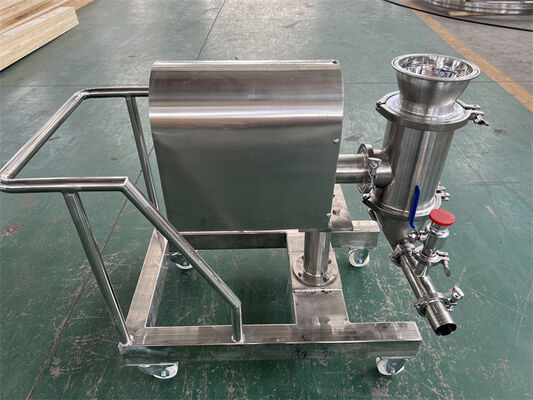

Pharmaceutical Granulator Multi Functional Cone Mill Machine High Speed Granulator 0

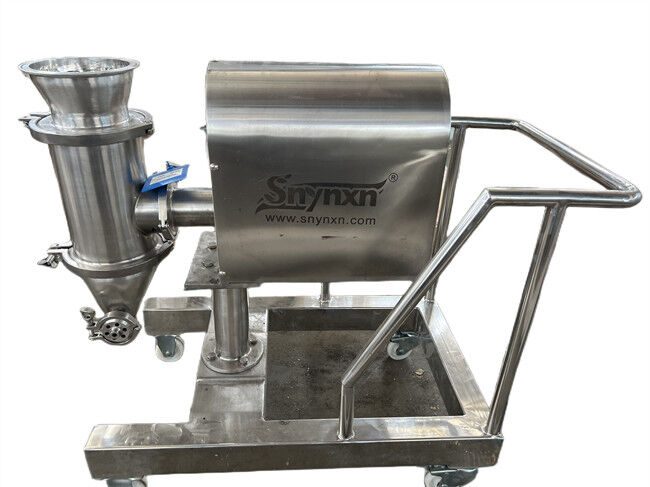

Pharmaceutical Granulator Multi Functional Cone Mill Machine High Speed Granulator 1

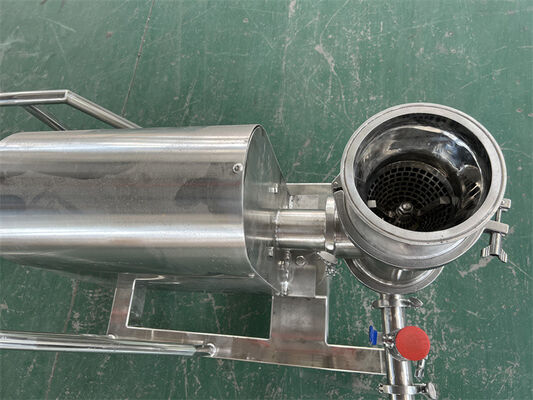

Pharmaceutical Granulator Multi Functional Cone Mill Machine High Speed Granulator 2

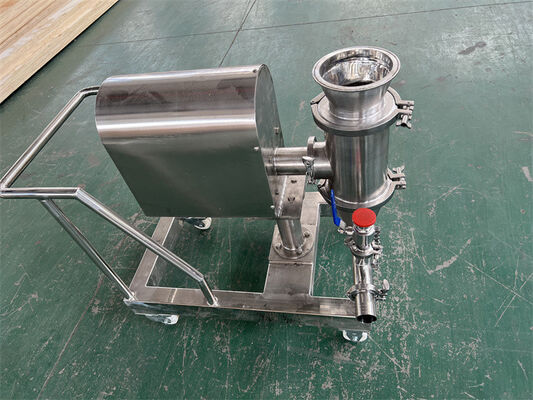

Pharmaceutical Granulator Multi Functional Cone Mill Machine High Speed Granulator 3

Company Profile

SNYNXN is a high-tech enterprise mainly engaged in the research, development, production and sales of Pharmaceutical Machines. The main products are Fluid Bed series, drying and granulating machine etc., which are mainly used in the fields of pharmaceutical, food, health care products and feed.
SNYNXN owns certificates of GMP, CE, SGS, ISO9001, AAA etc. With good quality and professional aftersales service, we enjoy high reputation among our customers over 120 countries and regions around the world.

Why choose us

1.Specialized in designing, developing and manufacturing.
2.Above 130 National patents,national and provincial technology innovation awards
3.Provincial Pharma Equipment Engineering Technology Research Center
4.National High-Tech,National Pharma Equipment Industry Association,Provincial new special expertise Enterprises
5.Manufacture the solid preparation production line equipment for above 500 domestic and oversea enterprises
6.Modern production workshop and production line of high-end manufacturing equipment
7.Professional and efficient after-sales service management
8.Competitive price and prompt delivery
9.Meet ISO9001 and CE
10.OEM/ODM available
