Specializing in the production of pharmaceutical machinery and granulating drying equipment.
 |
| Place of Origin: | JIANGSU CHINA |
| Brand Name: | SNYNXN |
| Certification: | SGS CE ISO GMP AAA |
| Model Number: | FL 120 |
| Minimum Order Quantity: | 1 SET |
|---|---|
| Price: | NEGOTIABLE |
| Packaging Details: | Film wrapping, wooden case. |
| Delivery Time: | 40 DAYS |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100 SETS/ YEAR |
| Type: | Industrial Fluid Bed Dryer Machine | Application: | Medicine Processing, Chemicals Processing, Plastics Processing, Food Processing Line |
|---|---|---|---|
| Function: | One Step Mixing Drying And Granulation | Evaporation Capacity(kg/h): | Depends On Different Model |
| Container Volume: | 220 L | Output Capacity: | 3-500 KG Depend On Model |
| Fan Power: | 3-45 KW | Core Components: | Bearing, Gear, Motor, Gearbox, Other, PLC |
| Warranty: | 1 Year, 2 Years Of Core Components | After Sales Warranty: | Supply Video, Online Technical Support, Spare Parts |
| High Light: | FL Series Fluid Bed Granulator 45KW,45KW Fluid Bed Granulators,500KG Fluid Bed Dryer 45KW |
||
Description of Pharmaceutical Grade FL Series Fluidized Bed Dryer

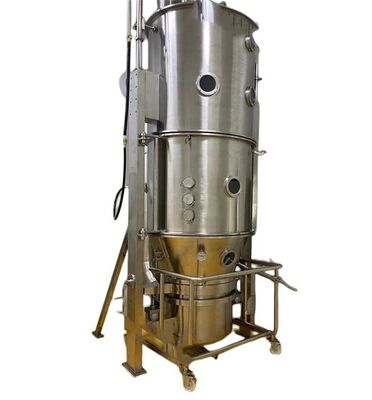

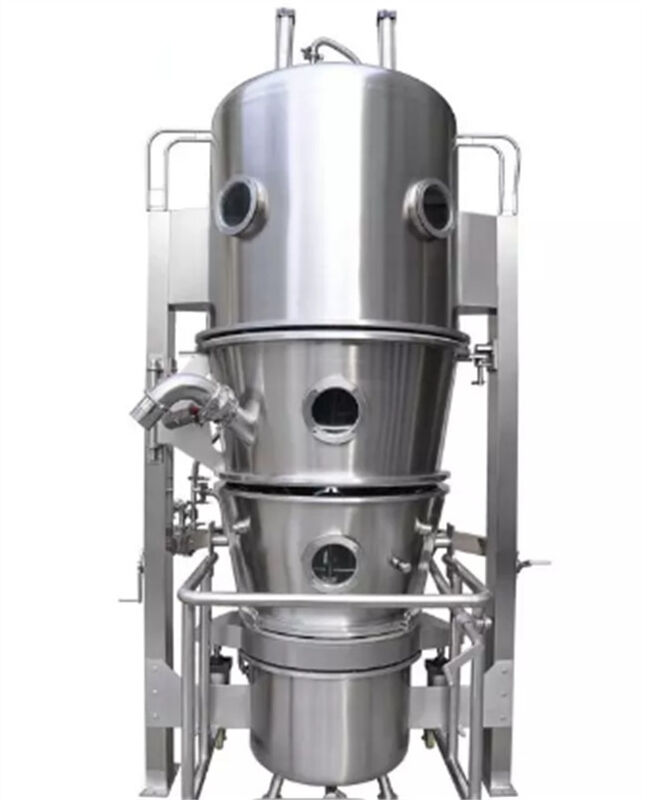

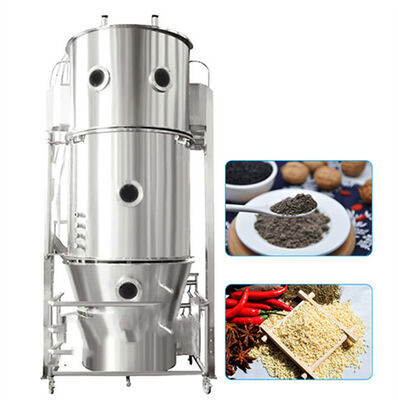

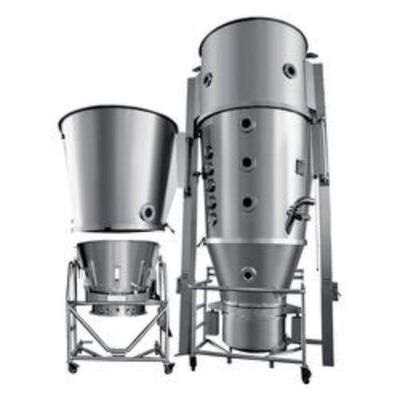

FL Series industrial Used Fluid Bed Dryer For Granule And Powder Material Fluid Bed Granulation Dryer
The advantage of fluid bed dryer technology rests with maintaining evenness and recurrence of product quality, which reflects an ideal balance between production efficiency and product quality.
In the process of fluidization, the materials floats above the air, with surface in full contact with the heated air,and the materials therefore is evenly heated and reaches an ideal state for heat exchange thus to have a high efficiency.
Configurated with proper spraying system and through further structural improvement, the fluid bed then becomes a multi-purpose processing facility in combined functions of drying, granulating, solution coating, and powder dressing.
1) Mixing-granulator-dryer in one-step.
2) Adopting double chamber filtering bags system, removing dust completely.
3) Adopting multi-fluid nozzle, it gurantees that the formed granule is uniform and the content of powder is very low.
4) Can choose two bars explosion-proof design
5) Designed, manufactured and laid out by GMP
6) Design&Manufactured in accordance with JB20014-2004 <Fluid Bed Dryer Granulator In Medicine>
Technical Parameters:
|
Model-FL
|
5
|
30
|
60
|
120
|
200
|
300
|
500
|
|
Capacity(Kg/Batch)
|
5
|
30
|
60
|
120
|
200
|
300
|
500
|
|
Material yield Rate(%)
|
>/=99%
|
||||||
|
Qualified Rate (%)
|
</=85%
|
||||||
|
Container Volume(L)
|
22
|
100
|
220
|
420
|
670
|
1000
|
1500
|
|
Diameter(mm)
|
500
|
700
|
1000
|
1200
|
1400
|
1600
|
1800
|
|
Power of Fan(Kw)
|
3
|
7.5
|
11
|
18.5
|
22
|
30
|
45
|
|
Liquid Feed Power(Kw)
|
0.37
|
||||||
|
Pressure of Steam(MPa)
|
0.4~0.6
|
||||||
|
Consumption Steam(Kg/h)
|
18
|
60
|
120
|
140
|
180
|
310
|
400
|
|
Compress Air Pressure( MPa)
|
0.4~0.6
|
||||||
|
Consumption of Air(m3/min)
|
0.3
|
0.9
|
0.9
|
0.9
|
1.1
|
1.1
|
1.5
|
|
Working Temperature C
|
Room temperature~120C adjustable
|
||||||
|
Noisy(dB)
|
Installed separated with fan </=75
|
||||||
Pre-service:
1.We provide presales service in various forms, making investment budge, manufacturing, planning, so that customers can make a reasonable plan with less cost.
2.We will fist check customer’s goods and goods size, then we will recommend suitable wrapping machine to 100% suitable.
3.We will recommend and offer machine according to customer’s use and purchase budget.
Sale service
1. Ensure product with high quality and pre-commissioning before delivery; provide each manufacturing step photo for customer checking on time.
2.Testing the machine and making video for customer’s checking.
3. Delivery on time;
4.Provide full sets of documents as customer’s requirements.
After-sale service
1.We will guarantee the machine quality for 1 year.
2.We provide free training and answer customer's question on technology in time.
