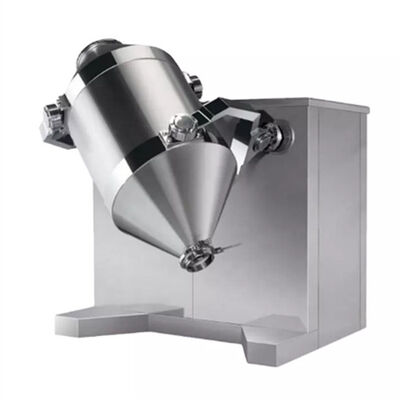

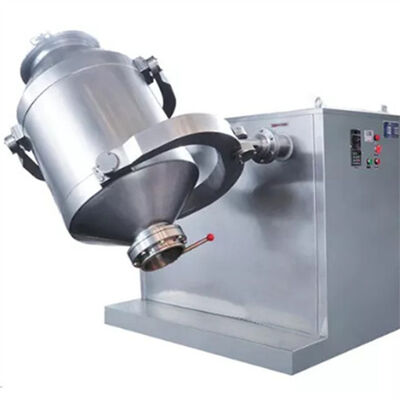

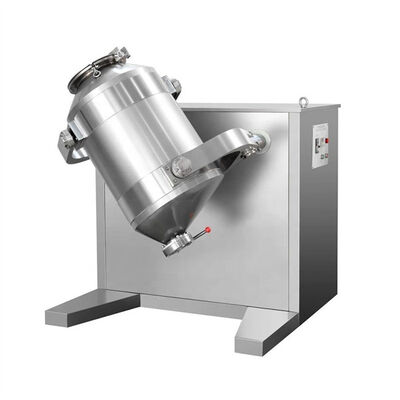

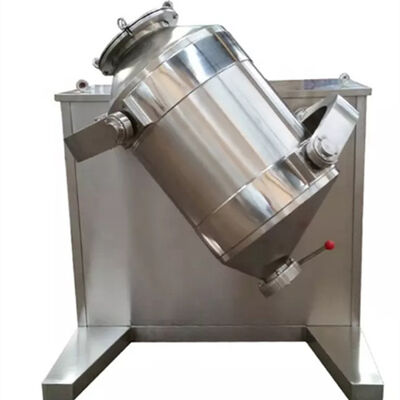

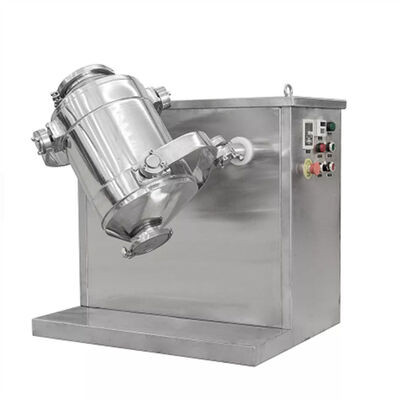

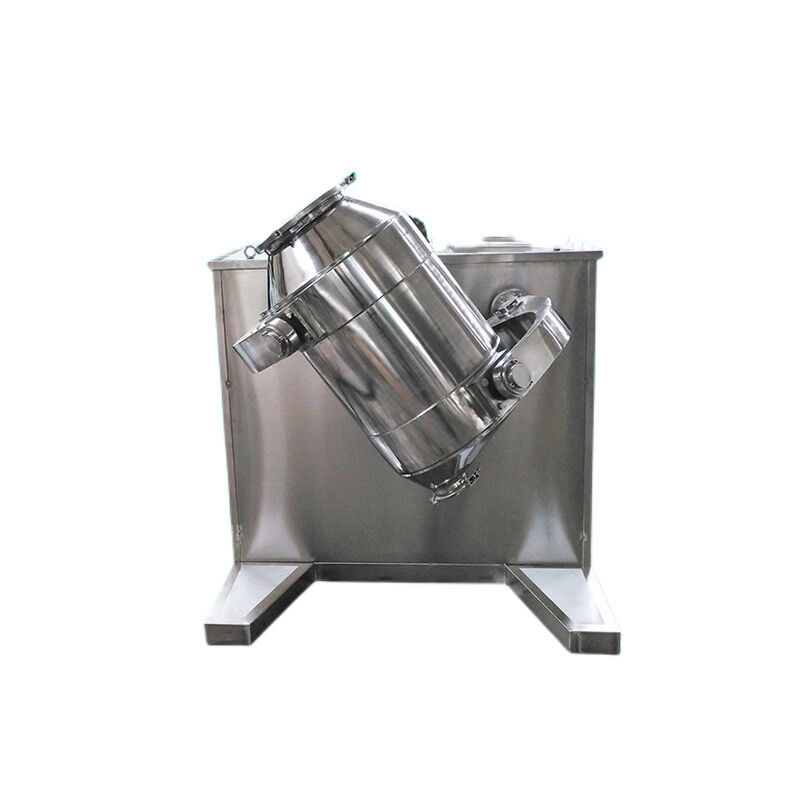

Lab Scale 3d Movement Powder Mixer Mill 5L Small Pharmaceutical Industry

Lab Scale 3d Movement Powder Mixer Mill 5L Small Pharmaceutical Industry

Lab Scale 3d Movement Powder Mixer Mill 5L Small Pharmaceutical Industry
Lab Scale 3d Movement Powder Mixer Mill 5L Small Pharmaceutical Industry
Lab Scale 3d Movement Powder Mixer Mill 5L Small Pharmaceutical Industry
Product Details:
Place of Origin: JIANGSU CHINA
Brand Name: SNYNXN
Certification: CE ISO GMP
Model Number: SYH 5
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Standard Export Packing in Wooden case
Delivery Time: IN 30 DAYS
Payment Terms: T/T, L/C
Supply Ability: 100 sets / year
Contact Now
Detailed Product Description
Product Name: Pharmaceutical Industry 3d Mixer Machine Application: Powder Mixing, Food, Medicine Processing
Drum Volume: 5 L Core Components: Motor, Gear, Pressure Vessel, Gearbox, Pump, PLC
Additional Capabilities: Drying Key Selling Points: Automatic, High Uniformity, Cost Effective
Mixing Type: Crankshaft Connecting Rod Construction Material: SS304 Or SS316 Is Optional
Highlight:

Pharmaceutical Industry Multidirection Mixer

,

Lab Scale 3d Multidirection Mixer

,

5L Small Multidirection Mixer

Name: 3D Rotation Mixer

As a high efficient mixing equipment , this machine is used for highly uniform mixing of powdery and particle materials in such trades as pharmaceutical, food, chemical, light industry, machinery, electronics , mining and metallurgy, national defense industry and scientific research etc.
Material has no centrifugal force effect, specific gravity segregation, lamination and accumulation during mixing. Each omponent can be mixed under wide gap of weight roportion, mixing rate reaching up to 99.9%.
Loading coetticiency can reach 80%(40% for normal ones).
With compact structure, driving part of the equipment is step less controlled, featuring convenient operation.
Each part of drum is transited by arc and polished precisely, meeting the GMP requirements.

Type
Material barrel volume (L)
Max loading volume (L)
Max loading weight (kg)
Spindle rotation speed (r/min)
Motor power (kw)
Overall dimensions (mm)
Weight (kg)
SYH-5
5
4
5
24
0.37
600*1000*1000
150
SYH-100
100
80
80
15
2.2
1200*1800*1500
500
SYH-200
200
150
150
12
3
1300*1600*1500
750
SYH-400
400
300
200
10
4
1500*2200*1500
1200
SYH-600
600
450
300
10
5.5
1850*2500*1650
1500
SYH-800
800
600
400
10
7.5
1900*2400*2100
1650
SYH-1000
1000
750
500
10
11
1950*2500*2400
1800
SYH-1500
1500
1200
750
10
18.5
2600*2500*2350
2500

Lab Scale 3d Movement Powder Mixer Mill 5L Small Pharmaceutical Industry 0

Lab Scale 3d Movement Powder Mixer Mill 5L Small Pharmaceutical Industry 1

Each of our factory machines is precisely debugged by engineers to ensure that it is ready for use after arrival.

Lab Scale 3d Movement Powder Mixer Mill 5L Small Pharmaceutical Industry 2

Export Wooden Case

★All the machinery we send out to you has been subjected to rigorous quality checks and safety testing to ensure you receive a satisfactory product.

★All equipment has waterproof and dustproof shrink film, and some special machines are also vacuum packed.

★The outside is a standard wooden box for export without fumigation, which ensures that the machine will not be damaged by moisture or collision during transportation.

★We also take out insurance for the equipment.

Lab Scale 3d Movement Powder Mixer Mill 5L Small Pharmaceutical Industry 3

Lab Scale 3d Movement Powder Mixer Mill 5L Small Pharmaceutical Industry 4

FAQ:



1. How to choose the right model?
Please let us know your target mixing capacity: ___kg per hour
Do you need to control mixing speed?
Do you need explosion proof?
Do you need SS304, SS316 or Carbon steel for the equipment?

2.Do you have associated equipment?
Yes, we have vibration screen, vacuum Conveyor, screw conveyor and other equipment to build one entire production line, if you
need.

3. What's your production time?
A: Generally, 25~35 days. If you are in urgent need, we will try to shorten the time.

4. why should you buy from us not from other suppliers?
As one of the leading enterprises in sieving industry, Jubao intelligent delivers over 2000 sets sieving equipment & system home
and abroad. Mass production, Fast delivery, Stable quality, Affordable price & Intimate service has become that labels of Jubao.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,CIP,FCA,CPT,DDP,Express Delivery;
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Russian.
