Description of Pharmaceutical Lifting System Blending Equipment

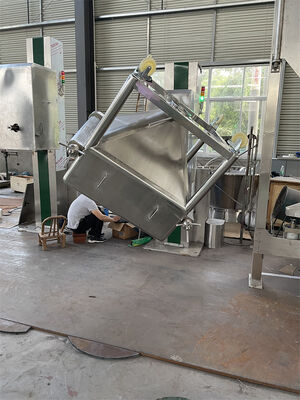

The machine has such features as reasonable structure, stable performance, convenient operation, no dead corners, and no exposed bolts. The gyrator (mixing hopper) forms an included angle of 30° with the rotation axis. The materials in the mixing hopper rotate along with the gyrator and make tangential movement along the hopper walls, producing strong turning and high-speed tangential movement and achieving the best mixing effect. PLC automatic control is adopted. It is provided with the infrared safety device and the discharging butterfly valve with the misoperation preventer to ensure safe production. The materials can go through different working procedures in the same vessel without the need of frequent material transferring, material charging, etc. The machine effectively controls dust pollution and cross contamination, reduces loss of materials, controls material layering, optimizes production processes, and fully meets the requirements for medicine production in GMP.
The machine can automatically complete all actions including lifting, clamping, mixing, lowering, etc. An automatic lifting hopper mixer and several mixing hoppers of different specifications can meet the mixing requirements of large batches and diversified varieties of products. It is an ideal machine for mixing in pharmaceutical plants. It is also widely used in such industries as medicine, chemical industry, food, etc.

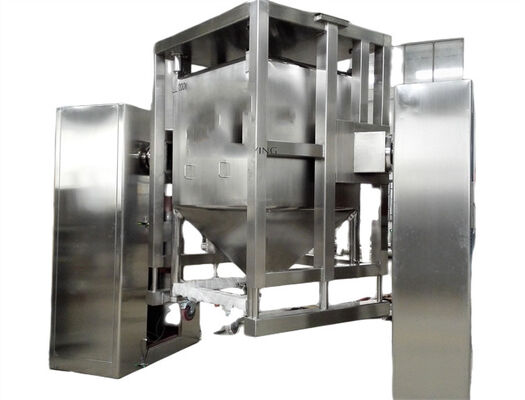

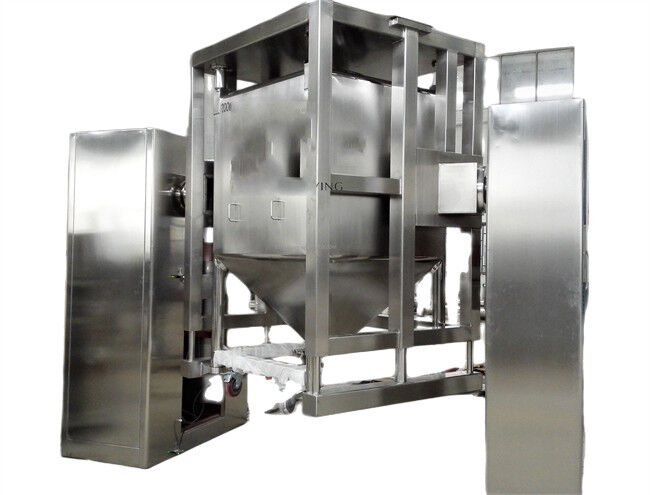

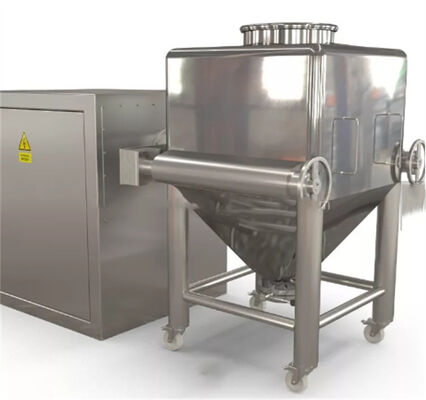

The machine is composed of machine base, gyrator, driving system, lifting and lowering system, braking system and control system. When it works, push the mixing hopper into the gyrator. Enter the automatic operation program, and input the set parameter group program code. Press the "confirm" button on the touch screen to automatically lift the mixing hopper to the designated position and automatically clamp it. After the PLC control system receives the clamping signal, the driving system works and carries out mixing according to the set time and rotation speed. After the set parameters are reached, the gyrator will automatically stop vertically. At the same time, the braking system works and the mixing is finished. Then enter the manual operation program, press the "lower" button, the mixing hopper in the gyrator will fall to the designated position and stop automatically, and process data will be printed. Then the mixing hopper is pushed out and transferred to the next procedure.
Features
1) The product is a mechanically and electrically integrated high- tech product. It adopts hydraulic lifting, hydraulic driving and PLC control, with simple control and convenient adjustment of process parameters.
2) Good control system sensitivity, compact machine structure and stable and reliable running.
3) A single machine can be equipped with hoppers of different specifications. The materials are discharged together with the bin from the rotary arm without going out of the bin after mixing and directly transferred to the next procedure, so that the use efficiency of the mixer is greatly increased and cross contamination of materials is avoided, and GMP requirements are fully met.

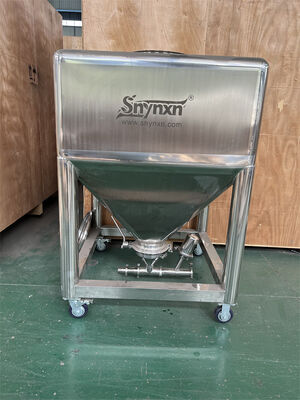

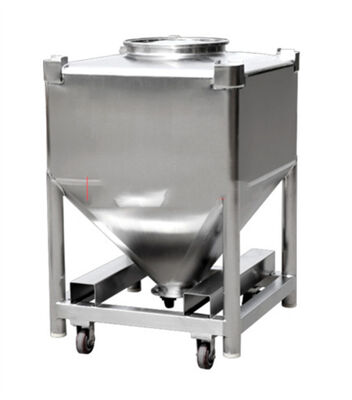

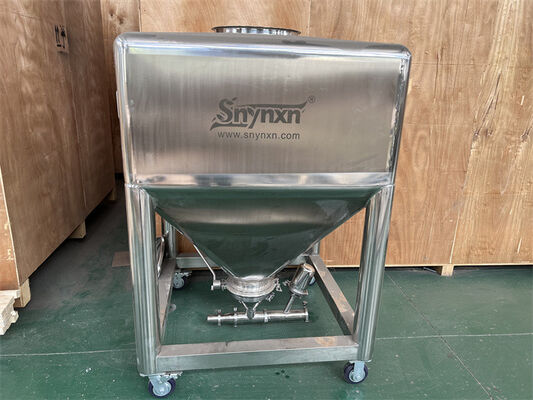

4) The mixing barrel can serve both as the dispensing barrel for the previous procedure and as the feeding bin for the next procedure (tablet pressing, filling).
5) The mixing evenness is above 99%, the volume loading coefficient is 0.80 and the barrel inside and outside are bright and clean without any dead corners.
6) After the mixing of each batch of medicines, the hopper will be sent to a special cleaning room for cleaning to maintain a clean environment of the work room.
Technical Parameters:
| Model |
HTD-300 |
HTD-400 |
HTD-600 |
HTD-800 |
| Blending speed |
3-20rpm |
3-20rpm |
3-15rpm |
3-15rpm |
| Net load |
150 |
200 |
300 |
400 |
| Total power |
4.4KW |
5.2KW |
5.2KW |
7KW |
| Machine weight |
900kg |
1000kg |
1300kg |
1600kg |
| Rotation |
2150mm |
2250mm |
2500mm |
2600mm |
| Ceiling height |
2800mm |
2800mm |
2800mm |
2800mm |
| Rotation width |
2000mmm |
2100mm |
2400mm |
2500mm |
| Overall dimension |
2457x1306x2300mm |
2555x1445x2400mm |
2663x1583x2500mm |
2800x1730x2500mm
|
