60KG Powder Fluidized Bed Spray Granulation Fluid Bed Coater

Name: 60KG Powder Fluidized Bed Spray Granulation Fluid Bed Coater
Brand: SNYNXN
SKU: FL 30
Rating: 4.5 (145 reviews)

Product Details:

Place of Origin:	JIANGSU CHINA
Brand Name:	SNYNXN
Certification:	CE ISO GMP
Model Number:	FL 30

Payment & Shipping Terms:

Minimum Order Quantity:	1 SET
Price:	NEGOTIABLE
Packaging Details:	Film wrapping, wooden case.
Delivery Time:	60 DAYS
Payment Terms:	T/T, L/C
Supply Ability:	100 SETS/ YEAR

Contact Now

Detailed Product Description

Model:	FL 30 Fluid Bed Drying Granulator	Process Method:	Mixing, Drying, Granulating, Coating
Raw Materials:	Powder, Granules, Pharmaceutical, Food, Chemical Industrial	Batch Capacity:	15 - 45 Kgs
Widely Used For:	Pharmaceutical Processing Production Line	Core Components:	PLC, Engine, Pump
Gurantee:	2 Years	After-sales Service Provided:	Online Support, Engineers Available To Service Machinery Overseas, Field Installation, Commissioning And Training, Video Technical Support, Field Maintenance And Repair Service
High Light:	60KG fluidized bed spray granulation , Powder fluidized bed spray granulation , 45kgs fluid bed coater

Type: Fluid Bed Granulator and Fluid Bed Coater

FL Series 60KG Fluid Bed Granulator fluid bed coater China Manufacturer Advanced Technology

Applicable Industry

1. Fluidized bed drying machine is available for both Powder granulation and Granular Coating.

2. Granulation: Tablet particles,granule particles, capsule particles.

3. Coating: particles, pill covers, color-prepared, slow-release, films, enteric coating.

4.Food granulation and coating Granulated sugar, coffee, cacao powder, cream, juice powder, amino acids, puffed food.

5.Pesticide, paint pigment, dry granulation Powder, granules, block detergent powder materials.

Working Theory

The powder granule in fluid bed appears in the state of fluidization. It is preheated and mixed with clean and heated air. At the same time the solution of adhesive is sprayed into the container. It makes the particles become granulating that contains adhesive. Being of unceasing dry through hot air, the moisture in the granulating is evaporated. The process is carried out continuously. Finally it forms ideal, uniform and porous granules.

Features:

This is our New Design Sealed Granulating Dosage Production Line,which include GHL Wet Mixer Granulator, Fluid Bed Dryer Equipment, Wet and Dry cone Mill, Lift and Transfer device.

1.While the newly-designed solid dosage production line adopts the way of airtight transportation, ensuring the granulating and drying to complete in the same purification room, which may avoid the secondary pollution and make the granulating and drying process more scientific and reasonable, besides, this reduces space the equipment covers and make the process meet better with the GMP requirements.

2.This machine ensure the continuity and stability of the production.

3.The vacuum feeder and pharma lifter have high automatic production capability, which may take place traditional manual operation, correspondingly reduce the labor intensity and dust pollution.

4.We can configure cleaning-in-position in many different points according to user requirements, which makes

Item			3	5	30	60	120	200	300	500
Container of raw material	Dia.	mm	300	400	700	1000	1200	1400	1600	1800
Container of raw material	Volume	L	12	22	100	220	420	670	1000	1500
Production capacity	Min	Kg/batch	1.6	4	15	30	80	100	150	250
Production capacity	max	Kg/batch	4	6	36	72	140	240	360	600
Consume of steam		Kg/batch	12	23	70	140	211	282	366	465
Amount of compressed air		M3/min	0.3	0.3	0.3	0.6	0.6	0.9	1.1	1.6
Power of fan		kW	2.2	4	5.5	11	18.5	22	30	45
Temperature		℃	From room temperature to operating temperature in 120℃ to be set randomly
Yield		%	>99
Option time		Min	15-30
Content at final term		%	-0.2
Noise		dB	≤75
Height of main machine		mm	2100	2300	2500	3000	3300	3800	4000	4400

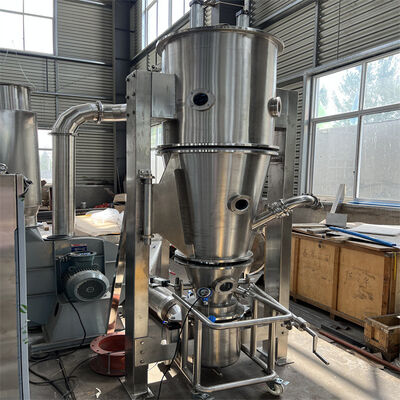

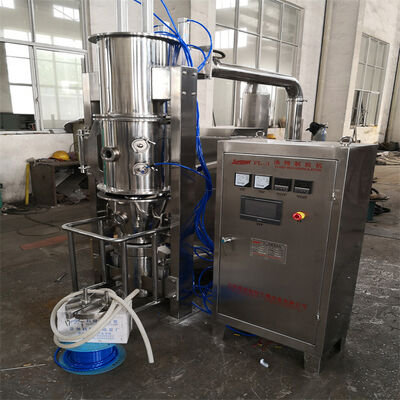

OUR FACTORY:

60KG Powder Fluidized Bed Spray Granulation Fluid Bed Coater 3

60KG Powder Fluidized Bed Spray Granulation Fluid Bed Coater 4

Company Information:

SNYNXN is a professional manufacturer of pharmaceutical machinery. It integrates develop, manufacture, sales, after-sale services as a whole, being a professional supplier for drying equipment, mixing equipment, fluid bed granulation equipment,pulverizer machine and clean room etc.

our company has passed the Occupational health and Safety Management System Conforms to the standard CE,SGS,GMP. As the members of China National Standardization technique Committee for pharmaceutical Equipment,testified by experience of long-term users, our products have very high stability and reliability, which have been sold to more than 20 foreign countries like Asian, African,European, American. We have established long-term business relations with customers and some of them already cooperated as agent in their countries.

For many years, we stick to the principle of "Customers First" taken the initiative to manage customers` demands, to develop and research high-quality pharmaceutical equipment, set up a perfect after-sale service system, and brought up the concept of" Star service" The pharmaceutical equipment is worth of your trust, Let`s join hands to co-develop a brilliant future in the 21st century full of opportunities!

Brand from concentration——Our pursuit is to product the best cost-effective machines in China. In this 21-century full of opportunities and challenges, Sinoped will provide new equipment and more pragmatic spirit of innovation, cooperate with you and create brilliance!
