SGS FL Series Rapid Fluid Bed Granulator Machine Fluid Bed Dryer Industrial Processor

Name: SGS FL Series Rapid Fluid Bed Granulator Machine Fluid Bed Dryer Industrial Processor
Brand: SNYNXN
SKU: FL 200
Rating: 4.6 (116 reviews)

Product Details:

Place of Origin:	JIANGSU CHINA
Brand Name:	SNYNXN
Certification:	SGS CE ISO GMP
Model Number:	FL 200

Payment & Shipping Terms:

Minimum Order Quantity:	1 SET
Price:	NEGOTIABLE
Packaging Details:	Film wrapping, wooden case.
Delivery Time:	60 DAYS
Payment Terms:	T/T, L/C
Supply Ability:	100 SETS/ YEAR

Contact Now

Detailed Product Description

Item Name:	Granulation Machine Pharmaceutical	Final Product:	Milk Powder, Detergent Powder, Medicine Powder Etc.
Batch Time:	10-30 Minute/bacth	Key Selling Points:	Rapid And High Productivity
Core Components:	PLC, Engine, Gearbox, Motor, Gear	Working Principle:	Powder Mixed With Spay Granulate And Dry Through Ho
Control System::	PLC Control Or Micro Computer	After Sales Warranty:	Supply Video, Online Technical Support, Spare Parts
High Light:	SGS Fluid Bed Granulator , Rapid Fluid Bed Granulator , one step fluid bed processor

Description: Fluid Bed Dryer Industrial Processor FL-200

FL-Series Vertical Type Direct Supply Fluid Bed Dryer Granulation Machine Fluid Bed Dryer Industrial Processor

Features

1.By using powder granulation, to improve the liquidity and thinner dust.

2.By using powder granulation, to improve solubility property.

3.Mixing—granulation—drying can be finished in one device (one-step granulation)

4.To adopt antistatic filtering mediums, to ensure safe operation.

5.Caking agent atomizer adopts multi-fluid spray gun to maintain uniform spray particles and to increase the rate of qualified products greatly.

6.No dead-corner of equipment; it is easy and rapid of feeding or discharging materials and clean of washing to satisfy the GMP standard.

Attention:

1 --- All prices and parameters shown above are automatically generated by the system, if you want to know the exact

information, please click "Contact Supplier" to send mail to us.

2 --- Because of the time difference, we suggest that you can choose to send us an inquiry instead of online chat.

3 --- When sending us an inquiry or message, please tell us your Email or WhatsApp/Wechat/Skype .etc, then our sales manager can contact you quickly.

Product Description

The powder granule in fluid bed appears in the state of fluidization. It is preheated and mixed with clean and heated air. At the
same time the solution of adhesive is sprayed into the container. It makes the particles become granulating that contains
adhesive. Being of unceasing dry through hot air, the moisture in the granulating is evaporated. The process is carried out
continuously. Finally it forms ideal, uniform and porous granules.

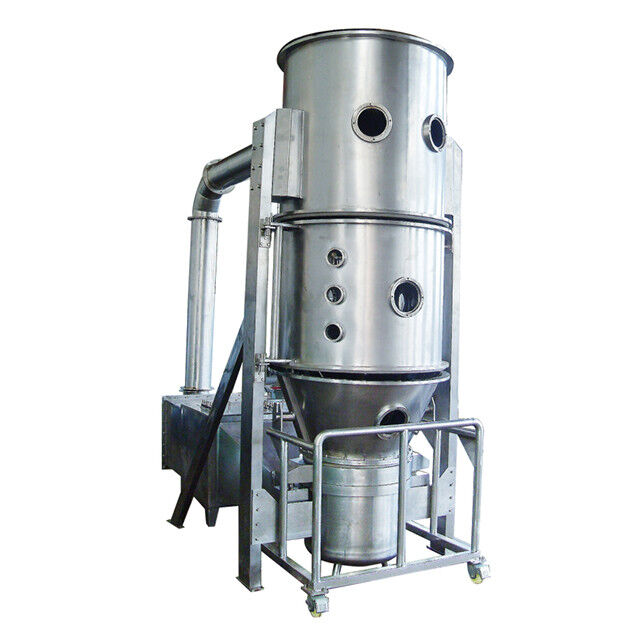

SGS FL Series Rapid Fluid Bed Granulator Machine Fluid Bed Dryer Industrial Processor 0

Technical Parameter

Model	200
Volume (L)	670
Amount to be treated (kg/per time)	100/300
Power of fan (kw)	30
Consume of steam 0.4MPa(kg/h)	282
Consume of compressed air (m3/min)	1.1
Noise,dB (A)	(fan is installed separately) ≤75
Main machine height (m)	2.34×1.7×3.8

SGS FL Series Rapid Fluid Bed Granulator Machine Fluid Bed Dryer Industrial Processor 1

OUR FACTORY:

SGS FL Series Rapid Fluid Bed Granulator Machine Fluid Bed Dryer Industrial Processor 2

SGS FL Series Rapid Fluid Bed Granulator Machine Fluid Bed Dryer Industrial Processor 3

Our Company

SNYNXN starts exporting since 2007, we manufacture Pharmaceutical Machinery includes Mixing Machine, Drying Equipment, granulation line, IBC Bin and Bin Washing Machine. As year passed, SNYNXN China absorb advanced domestic and abroad technology, we export machinery to more than 30 countries all over the world.
SNYNXN China is considered one of the major Pharmaceutical Machinery Supplier and exporter in China mainland. Professional, Enthusiasm, Service and Team Work has been always our value to create for our Staff and customers.

Our Machinery Manufacturing Workshop

Imported CNC Machining Centre makes all parts process accurate. Own R&D team with more than 20 years engineering expereince, can customize the equipment and packaging line to your satisfaction.

Professional Business Team

Warm, professional business team, careful response to your inquiry, timely response rate of more than 93%, higher than the average level of the industry.

FAQ

1.Are you manufacturer or trader? Where are your factory located?

We are manufacturer and we are located in Henan,China.and we can provide the competitive price and good quality.

2.Can I use my own raw materials for extraction test?

Yes, of course. We can do extraction tests and send videos and test reports for your reference.

3.Do you have OEM service? Do you provide parts?

Yes, we will, as long as you provide us with your drawings and detailed requirements.

4.How can we visit your factory?

You can fly to Shanghai airport, it's only 2hours away by car, you may tell us your flight. We will arrange a driver to pick you up.

5.What is the voltage of the equipment?

The equipment voltage is 380V, if the user requires 220V, the specific can be customized according to the voltage standard of the country where your equipment is used.
