Specializing in the production of pharmaceutical machinery and granulating drying equipment.
 |
| Place of Origin: | JIANGSU CHINA |
| Brand Name: | SNYNXN |
| Certification: | CE ISO GMP |
| Model Number: | FZH 1500 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard Export Packing in Wooden case |
| Delivery Time: | IN 60 DAYS |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100 sets / year |
| Machine Type: | Square Cone Powder Mixer | Mixing Method: | Rotating |
|---|---|---|---|
| Processing Materials: | Dry Powder, Granules | Container Type: | Square Cone |
| Automatic Grade: | Automatic, Batch Type | Key Selling Points: | Large Capacity, Easy To Operate, Long Service |
| Voltage: | 220V/ 380V/ 400V/ 440V/ 480V | Dimension(L*W*H): | According To The Model |
| After Warranty Service: | Field Maintenance And Repair Service | ||
| High Light: | SNYNXN Rotating industrial powder blender,SNYNXN GMP industrial powder blender,Automatic pharmaceutical powder blender |
||

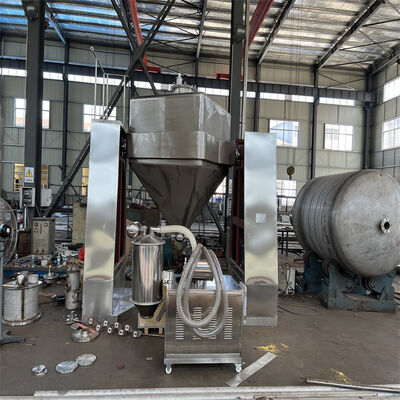

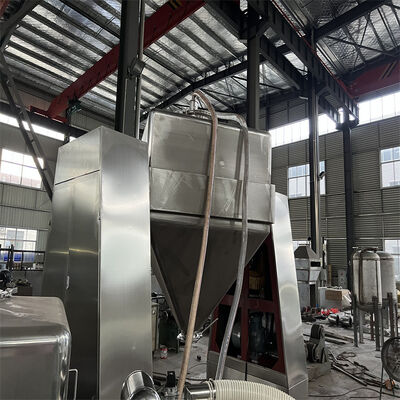

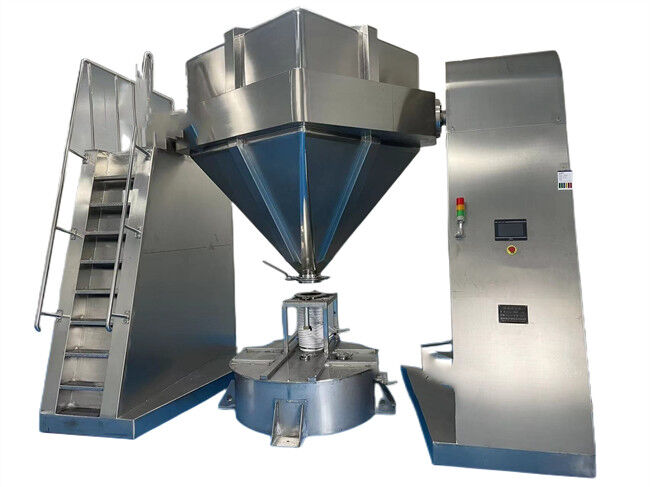

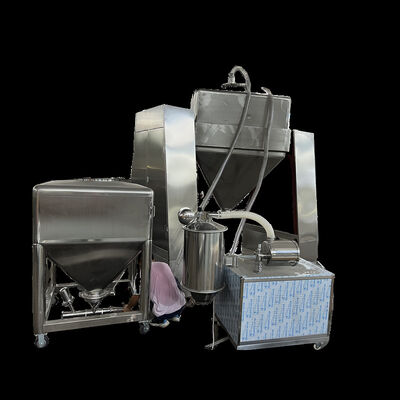

FZH Bin Blender/ Square Cone Mixer is mainly used for blending granules and granules, powder and powder, granules and powder in solid dosage production. The equipment features steady running, stable structure, large capacity and high mixing evenness. It is the ideal in pharmaceutical factory for final blending. And it is also widely used in food and chemical industry.
It is widely used in pharmaceutical, chemical, foodstuff industries. Researched and developed according to the features of various types of mixers, the square cone mixer is a mixer with very wide application. It fully meets GMP requirements and other relevant industry standards. It is especially suitable for processes of products with relatively simplex varieties and relatively large batches.
1.the bin is stamping dies and punch- formed at one time
2.the whole machine of the processing precision is high
3.good concentricity ad running smoothly
4.no dead corner for mixing and the mixing homogeneity reach to 99%
Technical parameters
|
Model
Specification
|
FZH-300
|
FZH-500
|
FZH-1000
|
FZH-1500
|
FZH-2000
|
FZH-3000
|
|
Volume of mixing barre(L)
|
300
|
500
|
1000
|
1500
|
2000
|
3000
|
|
Max. loading volume(L)
|
240
|
400
|
800
|
1200
|
1600
|
2400
|
|
Max. loading weight(Kg)
|
150
|
250
|
500
|
750
|
1000
|
1500
|
|
Rotary speed(rpm)
|
14
|
13
|
12
|
10
|
10
|
8
|
|
Motor power(Kw)
|
1.5
|
2.2
|
4
|
5.5
|
7.5
|
11
|
|
Machine weight(Kg)
|
600
|
750
|
1200
|
1650
|
2000
|
3000
|
|
Machine dimension(L*W*H)(mm)
|
1850x1280 x1980
|
2200x1530
x2220
|
2800 x 2000
x2820
|
2930x2330
x3355
|
3300x2550 x3280
|
3800x3000 x3800
|
1.Service before sale:
Act as a good adviser and assistant of clients to enable them get rich and generous returns on their investments.
1.1. Introduce the product to the customer in detail, answer the question raised by customer carefully;
1.2. Make plans for choice according to the needs and special requirements of users in different sectors;
2.Service in sale:
2.1. Ensure product with high quality and pre-commissioning before delivery;
2.2. Delivery on time;
2.3. Provide full set of documents as customer’s requirements.
3.Service after sale:
Provide considerate services to minimize clients’ worries.
3.1. Assist clients to prepare for the first construction scheme;
3.2. Install and debug the equipment;
3.3. Train the first-line operators;
3.4. Examine the equipment;
3.5. Take initiative to eliminate the troubles rapidly;
3.6. Provide technical support;
3.7. Establish long-term and friendly relationship.
4. Warranty period
One-year warranty period for whole machine except of tubes and human factors etc, and 12-month of after-sale service from the date when you receive machine or 12 months when installation finished; Consultant services for whole machine life, and 24 hours technical support by email; UPS, English software, user manual and the installation & debugging by our experienced technicians.
