GMP Automatic Bin Blender Powder Mixing Machine Pharmaceutical Powder Mixer Square Cone

Name: GMP Automatic Bin Blender Powder Mixing Machine Pharmaceutical Powder Mixer Square Cone
Brand: SNYNXN
SKU: FZH 500
Rating: 4.6 (183 reviews)

Product Details:

Place of Origin:	JIANGSU CHINA
Brand Name:	SNYNXN
Certification:	CE ISO GMP
Model Number:	FZH 500

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Standard Export Packing in Wooden case
Delivery Time:	IN 60 DAYS
Payment Terms:	T/T, L/C
Supply Ability:	100 sets / year

Contact Now

Detailed Product Description

Type:	Dispersion Blender Mixer Machine	Net Load:	100-5000 Kg
Function:	Mixer Blender	Application Scope:	Chemical Cosmetic Food Pharmacy
Advantages:	Automatic,Easy Simple Operation, Large Volume	Keyword:	Powder Mixer Machine
Homogenizer:	Frequency Inverter	Showcase Location:	Egypt, Canada, Italy, France, Germany, Pakistan, Mexico, Russia
After Warranty Service:	Field Maintenance And Repair Service
High Light:	GMP bin blender machine , 5000kg bin blender machine , Square Cone pharmaceutical powder mixer

Description:

Pharmaceutical fixed hopper mixer can automatically complete ascension, clamping, mixed, drop all the action. Mixing hopper with a single arm lifting hopper mixer and a plurality of different specifications, can meet the mixed batch, multi varieties, is the ideal equipment for Pharmaceutical General mixed.

Main Application

The company introduction of foreign new technology developed the FH series belt mixer, this machine in the W series doule cone mixer on the basis of adds strring unit, it is suitable for pharmaceutical, food, chemical and foodstuff industries material mix.

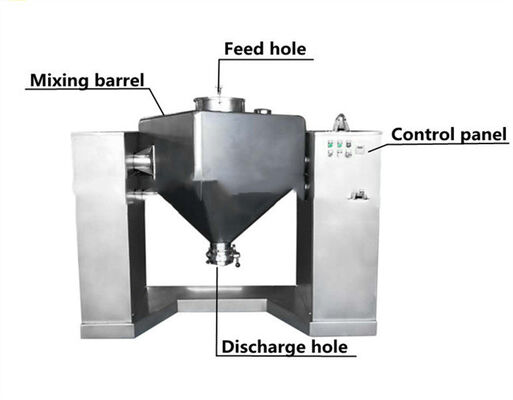

Principle: This machine consists of stand, rotary body, lifting system, driving system, braking system and control system. When working, the mixing hopper to the rotary body, press the touch screen " confirmation" button, automatically mixing hopper promotion in place, and automatic clamping. When working, the mixing hopper to the rotary body, press the touch screen "confirmation" button ,automatically mixing hopper promotion in place, and automatic clamping The pressure sensor signal obtained after clamping, drive system, mixed according to the set time, speed ; to set parameters, rotary body can automatic vertical stop, and braking system, mixed end ; then the hoist system works, mixing hopper rotary body fall in place, automatic stop, and print process data will mix the hopper to launch to the next step.

Characteristics
1. With new design, compact structure and elegant appearance, the machine can mix evenly 99% with loading ration of 0.8.
2. Low rotary height, stable running, reliable performance and easy operation
3. Polished inside and outside of cylinder wall, no dead corner, easy discharging,easy cleaning and no cross pollution, meeting GMP standard.

Technical Parameters

Model	Volume (L)	Fed Volume (L)	Fed Weight (kg/batch)	Spindle speed (r/min)	Motor power (kw)	Overall size (mm)	Weight (kg)
300	300	240	150	14	1.5	201012401800	500
500	500	400	250	13	2.2	220015302220	700
1000	1000	800	500	12	4	280020002820	1000
1500	1500	1200	750	10	5.5	293023002950	1500
2000	2000	1600	1000	8	7.5	310024603160	2000
3000	3000	2400	1500	6	11	335028203800	3000

GMP Automatic Bin Blender Powder Mixing Machine Pharmaceutical Powder Mixer Square Cone 0

GMP Automatic Bin Blender Powder Mixing Machine Pharmaceutical Powder Mixer Square Cone 1

EXHIBITIONS:

GMP Automatic Bin Blender Powder Mixing Machine Pharmaceutical Powder Mixer Square Cone 2

GMP Automatic Bin Blender Powder Mixing Machine Pharmaceutical Powder Mixer Square Cone 3

GMP Automatic Bin Blender Powder Mixing Machine Pharmaceutical Powder Mixer Square Cone 4
