SS316 Square Cone Mixer Pharmaceutical Nutrition Powder Mixing Blender Machine

Name: SS316 Square Cone Mixer Pharmaceutical Nutrition Powder Mixing Blender Machine
Brand: SNYNXN
SKU: FZH 3000
Rating: 4.6 (129 reviews)

Product Details:

Place of Origin:	JIANGSU CHINA
Brand Name:	SNYNXN
Certification:	CE ISO GMP
Model Number:	FZH 3000

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Standard Export Packing in Wooden case
Delivery Time:	IN 50 DAYS
Payment Terms:	T/T, L/C
Supply Ability:	100 sets / year

Contact Now

Detailed Product Description

Type:	Powder Mixing Blender Machine	Application:	Chemical, Food And Pharmaceutical Line
Mixer Type:	Rotating Paddle	Range Of Spindle Speed:	3 - 15 R.p.m
Additional Capability:	Granulating	Max. Capacity:	200 - 5000 Kg/batch Depend On Model
Material:	SS304 Or SS316 Is Optional	Warranty:	1 Year, 2 Years Of Core Components
Showroom Loaction:	Egypt, Canada, Turkey, United States, Philippines, Brazil
High Light:	Granulating Square Cone Mixer , SS316 Square Cone Mixer , Nutrition powder mixing blender machine

Description of FZH Automatic Lifting Chemical Powder Square Cone Mixer Mixing Machine

SS.316 Pharmaceutical And Nutrition Powder Mixing Blender Machine

This machine is mainly used for mixing granule with granule, granule with powder, powder with powder and other materials in solid preparation production of pharmaceutical industry. It has the advantages of large batch, reliable force, stable operation and so on. It is the ideal equipment for drug factory to mix. At the same time in the pharmaceutical, chemical, food and other industries widely used.

Working Principle:

This machine is composed of machine base, drive system, control system, mixing hopper and other components. When working, after adding the material to the hopper, lock the hopper lid, set the mixing time, mixing speed, and start the control system according to the process requirements to start the mixing operation; when the set time is reached, the machine automatically stops, and the mixing is completed Dosing.

Performance and Features:

This machine is a new model successfully developed by our company that has extensively absorbed and digested foreign advanced technology and combined with national conditions. Reasonable structure, stable performance, convenient operation, no dead corners or exposed screws. And set up the discharge butterfly valve of the anti-misoperation device to ensure production safety. The rotating body (mixing hopper) forms an angle of 30° with the axis of rotation. The material in the mixing hopper turns with the rotating body and moves tangentially along the wall at the same time, so as to achieve the best mixing effect, optimize the production process, and fully conform to the medicine GMP requirements for production.

Technical parameters

Model Specification	FZH-300	FZH-500	FZH-1000	FZH-1500	FZH-2000	FZH-3000
Volume of mixing barre(L)	300	500	1000	1500	2000	3000
Max. loading volume(L)	240	400	800	1200	1600	2400
Max. loading weight(Kg)	150	250	500	750	1000	1500
Rotary speed(rpm)	14	13	12	10	10	8
Motor power(Kw)	1.5	2.2	4	5.5	7.5	11
Machine weight(Kg)	600	750	1200	1650	2000	3000
Machine dimension(LWH)(mm)	1850x1280 x1980	2200x1530 x2220	2800 x 2000 x2820	2930x2330 x3355	3300x2550 x3280	3800x3000 x3800

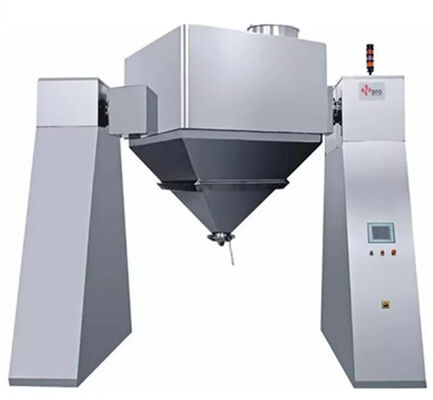

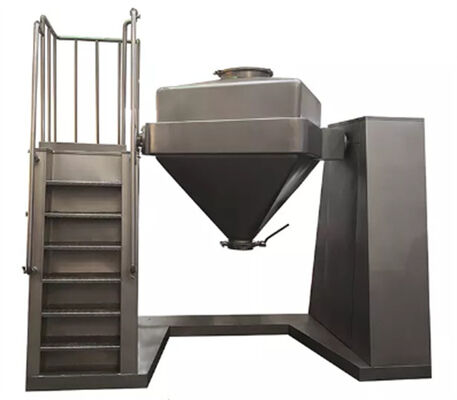

SS316 Square Cone Mixer Pharmaceutical Nutrition Powder Mixing Blender Machine 0

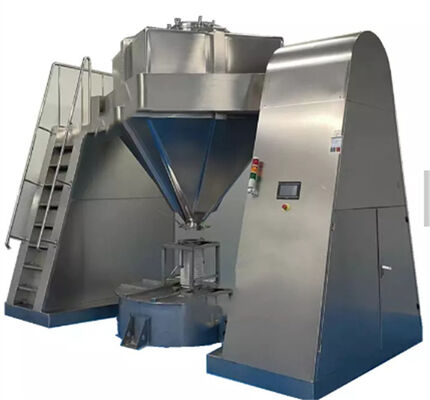

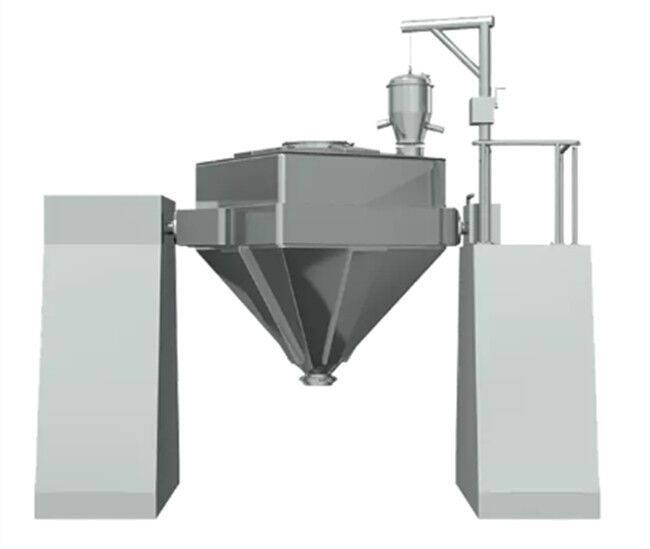

SS316 Square Cone Mixer Pharmaceutical Nutrition Powder Mixing Blender Machine 1
