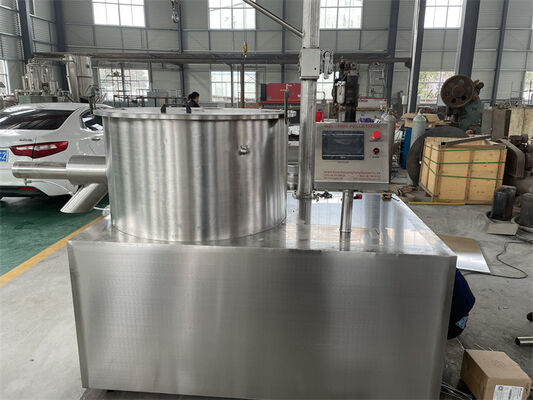

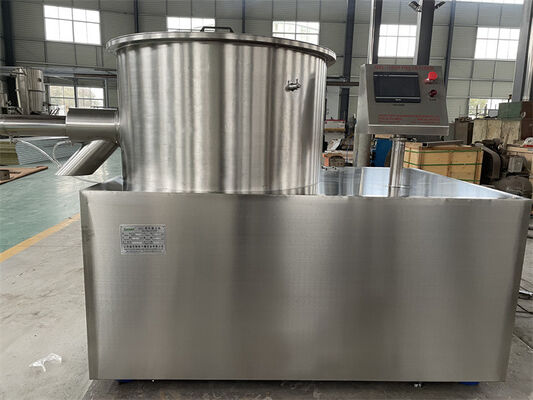

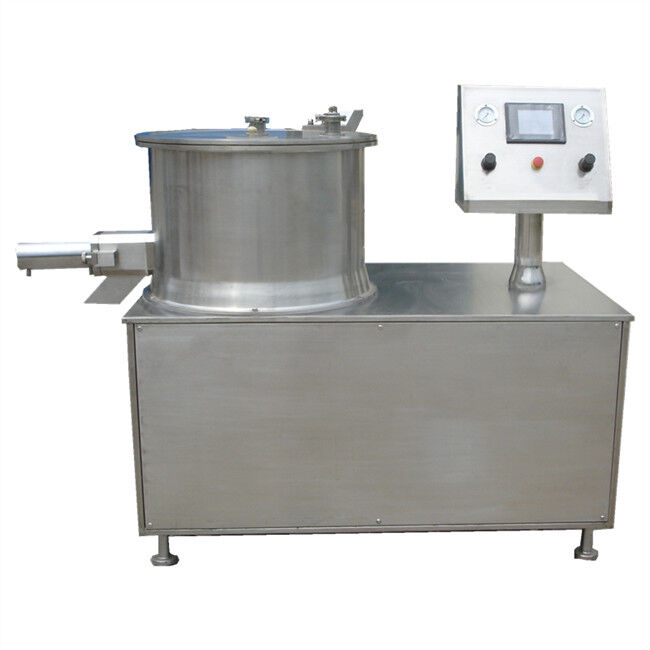

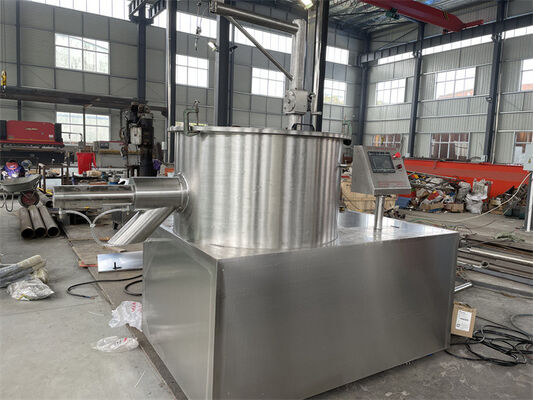

Lab Scale Pharmaceutical Pelletizer Rotating Granulator Machine Pelletizer

Lab Scale Pharmaceutical Pelletizer Rotating Granulator Machine Pelletizer

Lab Scale Pharmaceutical Pelletizer Rotating Granulator Machine Pelletizer

Lab Scale Pharmaceutical Pelletizer Rotating Granulator Machine Pelletizer

Lab Scale Pharmaceutical Pelletizer Rotating Granulator Machine Pelletizer

Product Details:

Place of Origin:	JIANGSU CHINA
Brand Name:	SNYNXN
Certification:	CE ISO GMP
Model Number:	QZL 700

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Standard Export Packing in Wooden case
Delivery Time:	IN 50 DAYS
Payment Terms:	T/T, L/C
Supply Ability:	100 sets / year

Contact Now

Detailed Product Description

Machine Type:	QZL Series Round Shape Granules Making Machine	Power:	0.75-7.5 Kw
Usage:	Pelleting Pelletizer, Granulator.	Function:	Making Ball Granules
Rotary Speed:	Regulated By Inverter	Control System:	Automatic PLC+Touch
Core Components:	Motor, Rotary Disc	Voltage:	220/380V, 50/60Hz, Customized
After Sales Service:	Online Support, Engineers Available To Service Machinery Overseas
Highlight:	7.5Kw Rotating Granulator , Pharmaceutical Rotating Granulator , 2MM pellet pharmaceutical granulator

Product Description Pharmaceutical Pelletizer Machine

Lab Scale Pharmaceutical Pelletizer Machine Western Medicine Pelletizer Chinese Medicine Pelletizer

Main Features

1. Produce pellet size between 0.5~2.0mm
2. Process long granule becomes pellet.
3. Simple operation & effective operation time

Applications
With the special design of rotor structure, the machine makes various wet grains into the perfect ball shape pellets. It is the desired equipment for making the capsules and pills of traditional Chinese medicine.

1. Pharmaceutical, Food Industries 2. Cosmetic, Dyestuff, Coloring Industries 3. Ceramic Industry

Principle
This machine makes damp granule into beautiful pellet by setting rotating centrifugal disk, blower, and pneumatic nozzle. Feed damp granule into rotating centrifugal disk, start fan then start rotating centrifugal disk. It can make the damp granule in float and circle by the air from gap, rotating centrifugal strength and itself gravity, appear circle rope-turning movement and become high-degree ball shape pellet.

Technical parameters

spec	unit	φ230	φ400	φ700	φ1000	φ1300
power	Kw	0.75	2.2	3.7	5.5	7.5
capacity	Kg/h	2~4	10-50	40-80	70-200	100-300

Lab Scale Pharmaceutical Pelletizer Rotating Granulator Machine Pelletizer 0

Lab Scale Pharmaceutical Pelletizer Rotating Granulator Machine Pelletizer 1

Lab Scale Pharmaceutical Pelletizer Rotating Granulator Machine Pelletizer 2

Lab Scale Pharmaceutical Pelletizer Rotating Granulator Machine Pelletizer 3

Lab Scale Pharmaceutical Pelletizer Rotating Granulator Machine Pelletizer 4

Pre-sales service

1) Professional advice and rich experience help to choose machine.

2) Inquiry and consulting support

3) View our factory

After-sales service

1) Training how to install and use the machine

2) Engineers available to service machinery overseas.

3) one year warranty,whole life service.

Within1 year, any problem part can send to us, we can give provide free new part (only damaged by machine itself).
