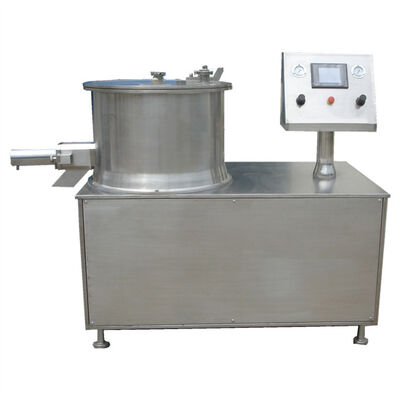

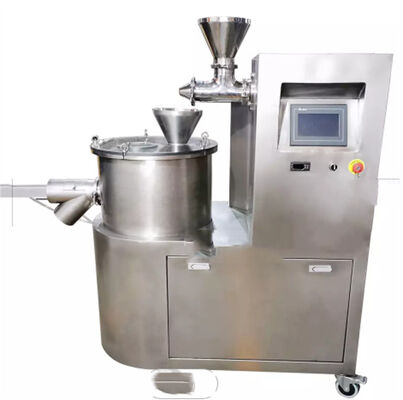

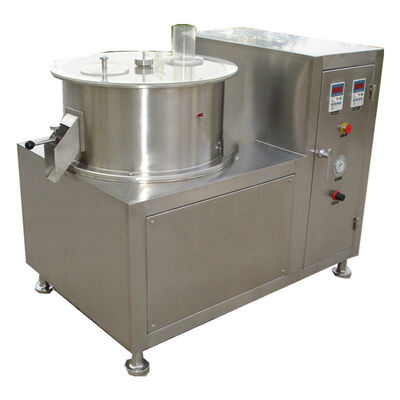

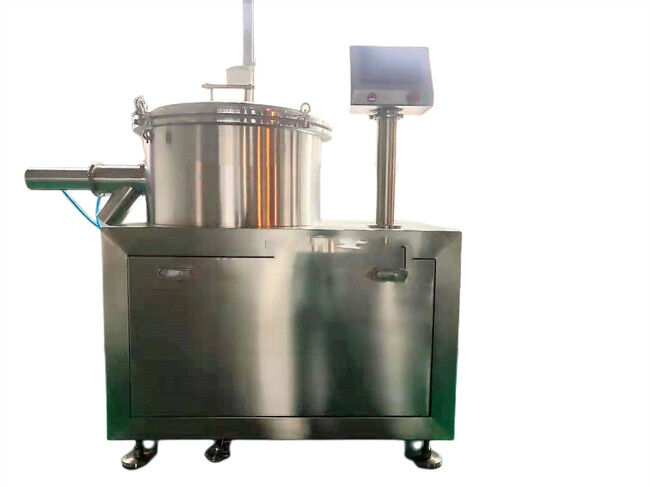

Chemical Rotating Granulator Centrifugal Force Pharmaceutical Pellet Making Machine

Chemical Rotating Granulator Centrifugal Force Pharmaceutical Pellet Making Machine

Chemical Rotating Granulator Centrifugal Force Pharmaceutical Pellet Making Machine

Chemical Rotating Granulator Centrifugal Force Pharmaceutical Pellet Making Machine

Chemical Rotating Granulator Centrifugal Force Pharmaceutical Pellet Making Machine

Product Details:

Place of Origin:	JIANGSU CHINA
Brand Name:	SNYNXN
Certification:	CE ISO GMP
Model Number:	QZL 200

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Standard Export Packing in Wooden case
Delivery Time:	IN 50 DAYS
Payment Terms:	T/T, L/C
Supply Ability:	100 sets / year

Contact Now

Detailed Product Description

Machine Type:	Pharmaceutical Pellet Making Machine	Output (kg/h):	2.5~300
Process:	From Wet Granule To Round Shape Pellets	Application:	Granules, Food, Chemical, Pharmaceutic
Key Selling Points:	Fast, Long Time Usage, Competitive Price	Control System:	Automatic PLC+Touch
Core Components:	PLC, Bearing, Gearbox	Guarantee Period::	Two Years
After Sales Service Provided:	Online Guidance, Free Spare Parts
Highlight:	centrifugal Rotating Granulator , chemical rotating Granulator , Pharmaceutical Pellet Making Machine

Description: QZL Series Pharmaceutical Pellet Making Machine

QZL Series centrifugal force Pharmaceutical Pellet Making Machine

1. General of applications

Feed the damp granule into the rotate centrifugal disk, the granules will form in circle rope movement, by the annular gap air flotage, rotate centrifugal force and gravity itself, then become high round degree pellet.

2. Technical Features

* Rotate disk use double-speed motor, ensure a perfect appearance for product

* Material operated in the airtight chamber, with no dust out, safe operation.

3. Technical parameter

Specification	230	400	500	700	1000
Power(kW)	0.75	2.2	3	3.7	5.5
Capacity(kg/h)	2.5-4	5-8	8-16	40-80	120-200

Chemical Rotating Granulator Centrifugal Force Pharmaceutical Pellet Making Machine 0

Chemical Rotating Granulator Centrifugal Force Pharmaceutical Pellet Making Machine 1

Chemical Rotating Granulator Centrifugal Force Pharmaceutical Pellet Making Machine 2

Chemical Rotating Granulator Centrifugal Force Pharmaceutical Pellet Making Machine 3

Chemical Rotating Granulator Centrifugal Force Pharmaceutical Pellet Making Machine 4

FAQ

Q: What information should be provided in order to get a proposal or quotation?

A: Our spheronizer can be customerized.

To work out a detailed proposal or quotation, we have to know the following information:

1) What product are you going to make?

2) Main process technique

3) Sphere size

4) Capacity

5) Construction material:SUS304 or SUS316L

Q: How the machine will be delivered ?

A: The spheronizer is packed in plywood box for shipping
