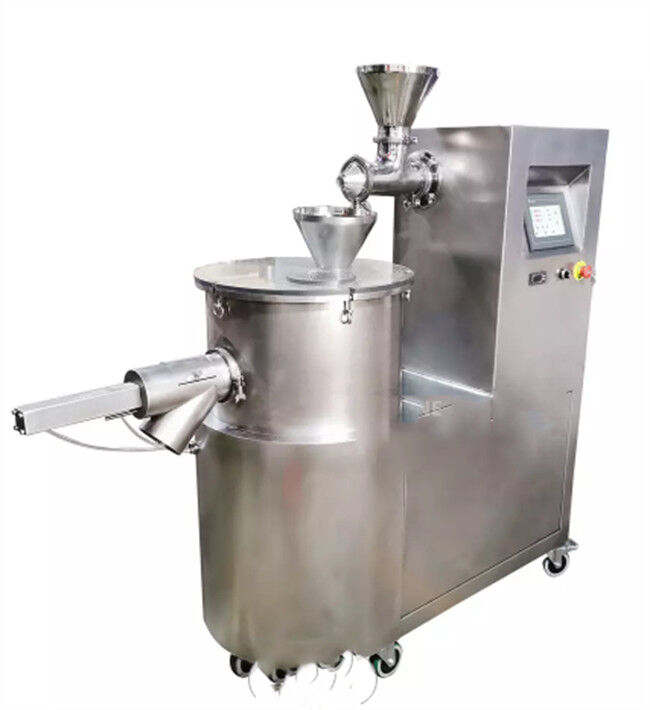

300kg/H QZL Series Ball Shot Blasting Rotating Granulator Machine Extrusion Spheronization

300kg/H QZL Series Ball Shot Blasting Rotating Granulator Machine Extrusion Spheronization

300kg/H QZL Series Ball Shot Blasting Rotating Granulator Machine Extrusion Spheronization

300kg/H QZL Series Ball Shot Blasting Rotating Granulator Machine Extrusion Spheronization

300kg/H QZL Series Ball Shot Blasting Rotating Granulator Machine Extrusion Spheronization

Product Details:

Place of Origin:	JIANGSU CHINA
Brand Name:	SNYNXN
Certification:	CE ISO GMP
Model Number:	QZL 400

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Standard Export Packing in Wooden case
Delivery Time:	IN 50 DAYS
Payment Terms:	T/T, L/C
Supply Ability:	100 sets / year

Contact Now

Detailed Product Description

Machine Type:	Extrusion Spheronization Machine	Output (kg/h):	2.5~300
Usage:	Pelleting Pelletizer, Granulator.	Process Purpose:	Making Round Ball Granules
Diameter Of Rotary Disc:	230~1300 Mm	Control System:	Automatic PLC+Touch
Core Components:	PLC, Bearing, Gearbox	Voltage:	220/380V, 50/60Hz, Customized
After Sales Service:	Online Support, Engineers Available To Service Machinery Overseas
Highlight:	300kg/h Rotating Granulator , QZL Series Rotating Granulator , 220V Extrusion Spheronization Machine

Description: QZL Pelletizer

QZL Series Ball Shot Blasting Granulator Machine Extrusion Spheronization machine

This machine makes damp granules into beautiful pellet by setting rotating centrifugal disk, blower, and pneumatic nozzle. Feed damp granule into rotating centrifugal disk, start fan then start rotating centrifugal disk .It can make the damp granule undertaken the action of air floating force in ring gap, rotating centrifugal strength and gravity itself, appear circle rope-turning movement and become high-degree ball shape pellet.

Main features

1. Making extruded segments or moist granules into spheres

2. Wet spheronization for Food, Chemical and Phamaceutical products;

3. Capacity: 2.5-200 kg/batch 4. GMP design

Working principle

QZL series spheronization machine is the extensively used processor for converting extruded particles or moist granules from a mixer /granulator into perfect spheres in food, chemical and pharmaceutical industries. Particles are fed into the spinning friction plate, which throws them against the inside wall of the cylinder. Extruded particles are quickly broken into segments approximately one diameter long. Centrifugal and gravitational forces create a mechanically fluidized ring of particles. Collisions with the wall, friction plate and other particles result in the plastic deformation of each granule, quicky creating a spherical shape. The desired shape for a specific application is time and formulation dependent and is achieved, predictably and repeatedly, in a brief period called the "spheronization time".

Technical advantages

1. Producing a smooth particle surface suitable for thin layer coating

2. Forming granuless with a specific bio-consumable shape

3. Conditioning particles to prevent generation of dust and fines from usage or shipping

4. Increasing flowability by elimination of sticking or bridging points

5. Increasing the apparent bulk density up to 25% compared to extruded material

Main technical parameters

Model	QZL-230	QZL-400	QZL-550	QZL-700	QZL-1000	QZL-1300
Capacity kg/batch	2.5-4	5-8	10-50	40-80	70-200	100-300
Motor power KW	0.75	2.2	3	3.7	5.5	7.5

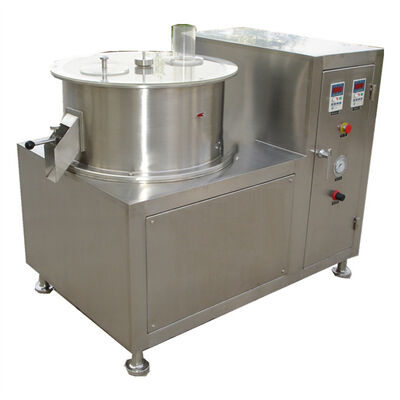

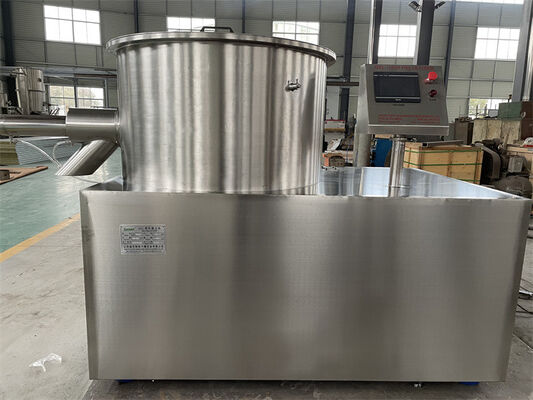

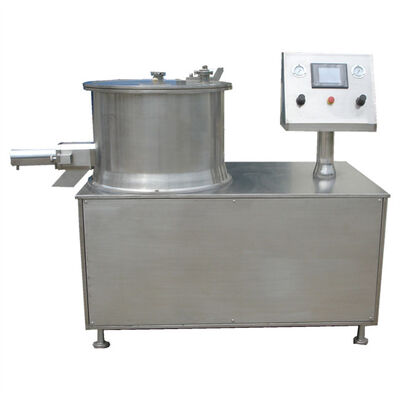

300kg/H QZL Series Ball Shot Blasting Rotating Granulator Machine Extrusion Spheronization 0

300kg/H QZL Series Ball Shot Blasting Rotating Granulator Machine Extrusion Spheronization 1

300kg/H QZL Series Ball Shot Blasting Rotating Granulator Machine Extrusion Spheronization 2

Jiangyin SNYNXN Granulating Drying Equipment Co., Ltd

SNYNXN is a famous enterprises specializing in drying, mixing, granulating, evaporating, concentrating and seperating equipment. Our company has passed authenticaion of ISO9001 international qualtiy system.

We emphasize visualization and creat brand, so we have been evaluated as both "AAA" enterprise by Jiangsu International Qualification company and "regard contract and keep faith" enterprise by industry and commerce department.

Our company is located in a famous town of south of Yangtse River, WUXI City (1 hour by train from Shanghai), occupying over 50 unit of area with over 11000 square meter building area. We have undeniable engineering and more than 100 sets equipments. Every year we can produce about 600 sets equipments and also can develope more than 30 types which are selling to all the country, such as Australia, America, Brail, Ukraine, Russia, Thailand, India, Vietnam, etc

We have stocks of many kinds of trial machine for cutomer taking materials to test and examine.

Welcome to visit SNYNXN!

300kg/H QZL Series Ball Shot Blasting Rotating Granulator Machine Extrusion Spheronization 3

300kg/H QZL Series Ball Shot Blasting Rotating Granulator Machine Extrusion Spheronization 4

FAQ

1. Q: Jiangyin SNYNXN Granulating Drying Equipment Co., Ltd is a manufacturer, trading company or a third party?

A: We are a manufacturer, SNYNXN company established in 2007.

2. Q: Where is your factory located?

A: SNYNXN is located in Jiangyin city, Jiansu province, China. it is In the middle of Shanghai and Nanjing.

3. Q: How can I go to your factory?

A: You can fly to shanghai Pudong or Hongqiao international airport directly, then take the high speed train to ChangzhouWuxi station (just 1 hour from Shanghai to Wuxi by train) and we arrange to pick you up. Our ompany is around 30km away from Wuxi station.

We sincerely welcome to visit our company at any time.

Principle of work matters that should be known before order:

1. What is product name ?

2. How many kgs per batch do you require?

3. Other special requirements.
