Liquid Food Oil Extractor Tomato Sauce Vacuum Honey Concentrate Fruit Juice Extraction Machine

Product Details:

Place of Origin:	JIANGSU CHINA
Brand Name:	SNYNXN
Certification:	CE ISO GMP
Model Number:	TN-200

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Standard Export Packing in Wooden case
Delivery Time:	Within 50 Days After Order
Payment Terms:	T/T, L/C, D/A, Western Union
Supply Ability:	100 sets / year

Contact Now

Detailed Product Description

Type:	Round Stainless Steel Concentration Tank	Application:	Liquid Materials
Usage:	Food Production Line	Capacity:	100L-20T Depend On Model
Process:	Continuous	Agitator:	With Agitator
Core Component:	Motor, Pressure Vessel	Dimension:	Depend On Model, Or Customized
Warranty:	1 Year, 2 Years Of Core Components	After Sales Service:	Field Maintenance And Repair Service
Highlight:	Liquid food oil extractor , 200L Tank food oil extractor , fruit juice extraction machine ISO

Description Concentrate Machine for Tomato Sauce Fruit Juice Vacuum Honey

Applicable:

The device is suitable for the concentration of the material liquid in such industries as pharmacy, food and chemistry, etc. It's mainly for get high concentration medium, such as extractum, fruit jam, and so on.

Component:

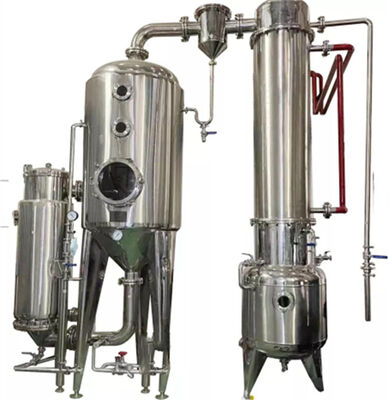

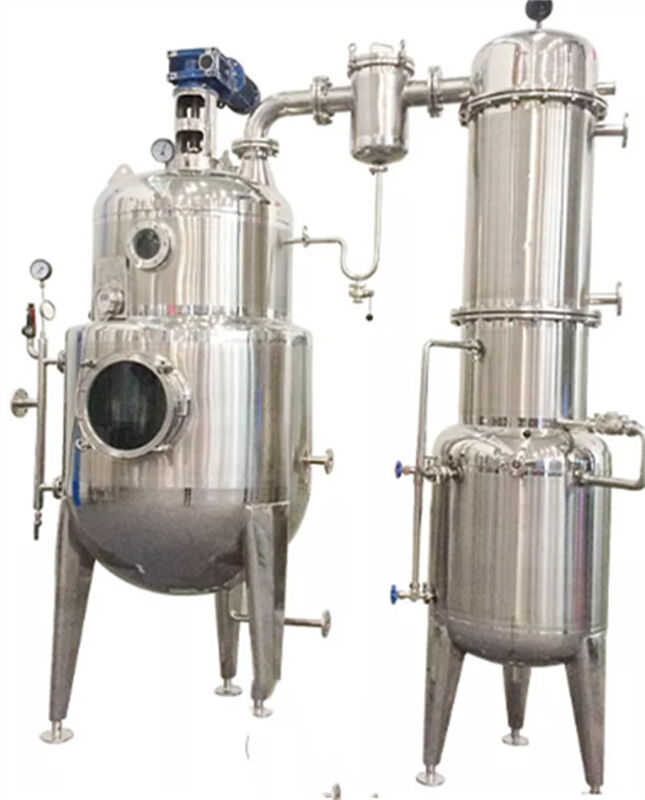

1) The device mainly includes concentration tank, condenser, vapor-liquid separator, cooler and liquid receiving barrel.

2) The concentration can is of clip sleeve structure; the condenser is of row-pipe type; the cooler is of coiled type. The device is suitable for the concentration of the material liquid in such industries as pharmacy, food and chemistry, etc. and as well serves for the recycle of alcohol and simple reflux extraction purposes.

3) The contact part of the equipment and materials are made with stainless steel, resistant to corrosion and in accordance with the GMP standard.

Product Paramenters

Model	TN-50	TN-100	TN-200	TN-300	TN-500	TN-700	TN-1000
Volume L	50	100	200	300	500	700	1000
Receive tank volume L	50	80	100	100	100	125	200
Jacket pressure Mpa	0.09~0.25
Vacuum degree Mpa	-0.06~-0.08
Heating area ㎡	0.25	0.59	0.8	1.1	1.45	1.8	2.2
Condensation area ㎡	4	4	5	6	8	10	12
Overall size mm	1200	1350	1700	1700	2100	2400	2930
	600	750	800	1000	1200	1300	1300
	2200	2200	2700	3400	3400	3400	3720

Features:

1. This machine is adopted outside heating circulation and vacuum condition, the inside material can be heat well and evaporated efficient fast.

2. All the system design according to GMP standard, heating tank and evaporate tank have the CIP unit, the temperature & vacuum pressure can display on line.

3. This machine have the cooling unit, it can be got high concentration solvent. the solvent recovery ratio can reach to 95%.

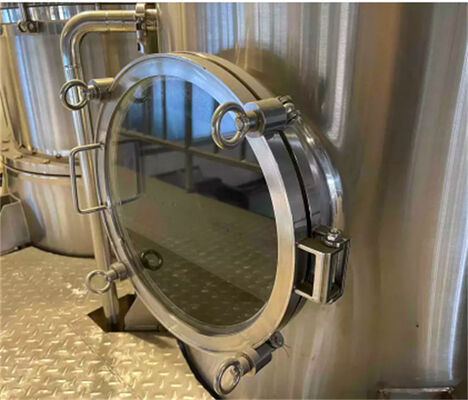

4. This machine have the big sight glass to inspect inside material evaporate status.

5. Water/gas separater can reduce the material lost under the evaporate process.

6. This machine can be feed raw material, out put final products and take sample online continous.

7. According to the process, we can use the PHE type cooling unit instead of the shell & tube condenser for the good cooling efficient.

FAQ

1. Q : How can customer visiting our factory?

A : We are in Jiangyin city, Jiangsu China. which is very near to Shanghai. From Shanghai China to our city, it will take 1 hour by train, 2hours by car. And our factory is closer to Shanghai Hongqiao airport only 1.5 hour by car.

2. Q : How can customer know the processes of order?

A : We will take photo or video during manufacturing every two weeks to make customer clear about the order. When goods is finished,we will take more detailed photos or video for inspect. You can also come to our factory to inspect by yourself.

3. Q : Do you supply installation equipment in oversea?

A : Yes, if need, we can also send our installation engineer to your factory to help you do installation and testing. And you need to provides round-trip ticket and accommodation for our engineer. The extra salary of one installation engineer is 150USD/day.

4. Q : How to control quality?

A : All material we use has material certification. Before any piece of equipment leaves SNYNXN. It goes through a complete quality and assurance control inspection. This inspection assures your equipment meets all specifications and is in proper working order before it leaves our facility and arrives at your door.

5. Q : What is the shipment schedule?

A : We will send you photographs of your order being loaded into the shipping container at the factory.

The shipping container will generally leave port 3-4 days after loading. We will send you a bill of lading and final statement of account within one week of that time. The bill of lading will include the shipping container numbers. You can track your shipping container.

Approximately 10 days prior to delivery, we will send you an ETA (Estimated Time of Arrival) notice from the shipping time. Please remember that the listed delivery date is only an estimate, and is subject to port unloading schedules, customs processing, and the dictates of the local delivery truck company. You will be directly contacted by the shipping company's local truck delivery services approximately 48 hours prior to the date of delivery to schedule a delivery time.

6. Q : Which material are the equipment made of?

A : Stainless steel 304/ stainless steel 316/ Ti.
