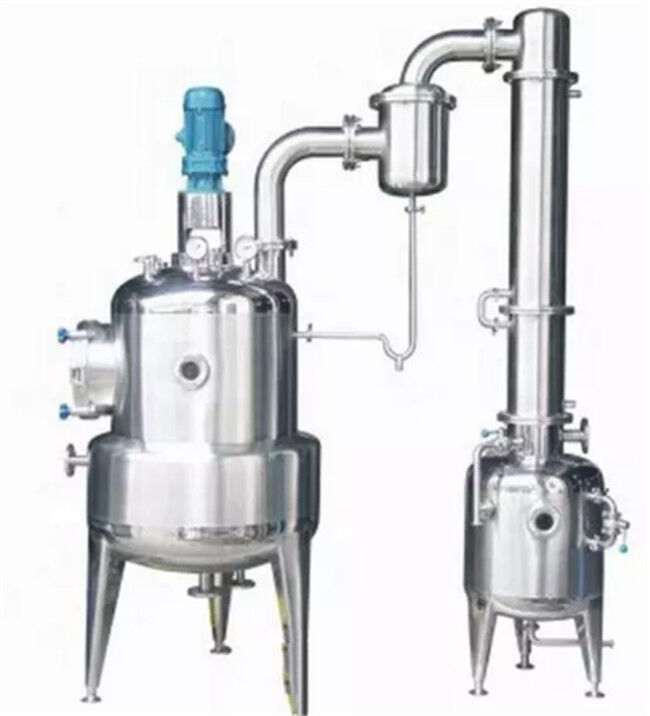

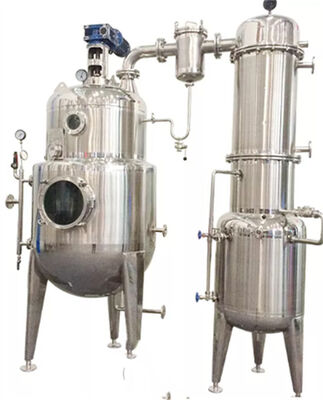

500L TQ Series Chemical Pharmaceutical Machinery Multifunctional Extraction Tank

Name: 500L TQ Series Chemical Pharmaceutical Machinery Multifunctional Extraction Tank
Brand: SNYNXN
SKU: TQ-3
Rating: 4.5 (145 reviews)

Product Details:

Place of Origin:	JIANGSU CHINA
Brand Name:	SNYNXN
Certification:	CE ISO GMP
Model Number:	TQ-3

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Standard Export Packing in Wooden case
Delivery Time:	Within 50 Days After Order
Payment Terms:	T/T, L/C, D/A, Western Union
Supply Ability:	100 sets / year

Contact Now

Detailed Product Description

Type:	EXTRACTOR	Application:	Food And Pharmaceutical Production Line
Capacity:	50L-500L	Usage:	Tea Polyphenols Extract Chemical & Pharmaceutical
Working Process:	Continuous	Keywords:	Vacuum Concentrator
Video Outgoing-inspection:	Provided	Construction Material:	304/316L Stainless Steel
Warranty:	1 Year, 3 Years Of Core Components	After Sales Service:	Engineers Available To Service Machinery Overseas
High Light:	500L chemical pharmaceutical machinery , TQ Series chemical pharmaceutical machinery , 316L Multifunctional extraction tank

Description of Chemical & Pharmaceutical Machinery High Quality Extraction Tank

TQ Series Chemical & Pharmaceutical Machinery High Quality Extraction Tank Multifunctional Extraction Tank

Usage: This machine is widely using the solution to extract the medicine ingredient from the raw material like herbs root,stem, leave, flower, fruit, seed and animal bone, viscera etc. and this machine can meet the different extractor process, like the water based extractor process, solvent based extractor process, steam distill process etc. it can be used the pressurized extractor, Atmospheric pressure extractor, vacuum extractor for the different temperature and different working process condition.

Structure: This machine including the following unit: extractor tank, condenser, sub-cooler, water / oil separater, filter, pump and pipeline.

Feature

1. Pneumatic lock discharge gate can keep the machine safety and non leakage for the electric power / compressor air turn off in sudden.

2. Special backsurge unit design can resolve inside extractor sediment problem and can keep inside tank temperature uniform.

3. Special side discharge unit design can resolve the discharge nozzl block problem and can be easy clean and unload.

4. Special foam destroyer unit design can resolve the foam block the condenser problem and easy to be clean.

5. Special oil / water separater unit design can be collect oil easily.

6. Multi-segment jacket can be easily control the inside temperature when the jacket heat.

Data

Model	TQ-1.0	TQ-2.0	TQ-3.0	TQ-6.0	TQ-8.0	TQ-10.0
Total capacity (L)	1200	2300	3300	6500	8600	110000
Jacket design pressure (Mpa)	0.33
Jacket design temperature (℃)	146
Compress air pressure (Mpa)	0.6-0.7
Manhole diameter (mm)	400	400	400	500	500	500
Condenser area (㎡)	3.0	5.0	6.5	9.5	12.5	15.0
Sub-cooler area (㎡)	0.5	1.0	1.2	2.0	2.5	3.0
Filter area (㎡)	0.2	0.2	0.25	0.3	0.4	0.5
Steam consumption (kg/h)	245	305	345	645	720	850
Total weight (kg)	1080	1620	2400	3025	4030	6500

SNYNXN was founded in 2007, We are a high-tech enterprise in Jiangsu province.

SNYNXN is a high-tech enterprise mainly engaged in the research, development, production and sales of Pharmaceutical Machines. The main products are Fluid Bed series, drying and granulating machine and Extraction Equipment etc.., which are mainly used in the fields of pharmaceutical, food, health care products and feed.
SNYNXN owns certificates of GMP, CE, SGS, ISO9001, AAA etc. With good quality and professional aftersales service, we enjoy high reputation among our customers over 120 countries and regions around the world.
