100L Botanical Jasmine Essential Oils Fish Oil Avocado Oil Centrifugal Honey Extractor

Name: 100L Botanical Jasmine Essential Oils Fish Oil Avocado Oil Centrifugal Honey Extractor
Brand: SNYNXN
SKU: TN-300
Rating: 4.6 (117 reviews)

Product Details:

Place of Origin:	JIANGSU CHINA
Brand Name:	SNYNXN
Certification:	CE ISO GMP
Model Number:	TN-300

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Standard Export Packing in Wooden case
Delivery Time:	Within 50 Days After Order
Payment Terms:	T/T, L/C, D/A, Western Union
Supply Ability:	100 sets / year

Contact Now

Detailed Product Description

Type:	Multi-functional Extraction Tank	Application:	Food And Pharmaceutical Production Line
Function:	Extracting Concentrating	Capacity:	100L-20T
Extraction Type:	Vaccum Extraction	Core Component:	Motor, Pressure Vessel
Keywords:	Vacuum Concentrator	Key Selling Point:	Long Service Life High Productivity
Warranty:	1 Year, 3 Years Of Core Components	After Sales Service:	Field Maintenance And Repair Service
High Light:	100L avocado oil extraction machine , 0.09Mpa avocado oil extraction machine , 100L centrifugal honey extractor machine

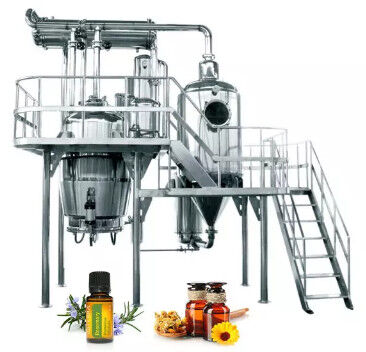

Description of Multi-Functional Extraction Tank

Avocado Oil Botanical Jasmine Essential Oils Fish Oil Honey Extraction Machine Multi-Functional Extraction Tank

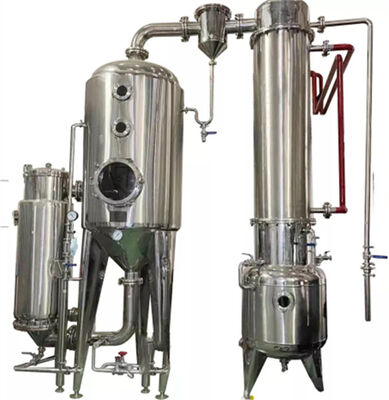

Usage: This machine is our company new developed extractor and concentrator machine, it is developed based on the thermal reflux extractor and concentrator machine, it ismuch fit to the medicine company extractor process. Machine composite: This machine including the following units: extractor tank, single effect concentrator, condenser, automatic water drain system,oil/water separater, filter, sanitary pump and pipeline.

Machine operation mode: Manual operation & automatic operation.

Main Technical Data

Model	NST-1.0		NST-2.0		NST-3.0		NST-4.0
Model	Extractor tank	Concentrator	Extractor tank	Concentrator	Extractor tank	Concentrator	Extractor tank	Concentrator
Jacket pressure(Mpa)	0.3	0.2	0.3	0.2	0.3	0.2	0.3	0.2
Inside pressure(Mpa)	≤0.09	-0.084	≤0.09	-0.084	≤0.09	-0.084	≤0.09	-0.084
Jacket temp(℃)	142	132	142	132	142	132	142	132
Inside temp(℃)	≤100	60	≤100	60	≤100	60	≤100	60
Evaporate capacity(kg/h)	500		800		1000		2000
Dimension(LWH)	400018004400		450022004800		520024006000		660028007000

Features:

1.This machine can be used as atmospheric pressure extractor, atmospheric pressureconcentrator for the solvent based thermal reflux extractor process, also can be used atmospheric pressure extractor, vacuum low temperature concentrator process for themulti-times water based extractor process. so this machine resolve the problem of thetemperature -sensitive medicine easy destroyed on the high temperature.

2.This machine can load much more raw material compare with the common extractor tankand also can save the solvent solution consumption, low evaporate temperature and energysaving.

3.This machine have the automatic water drain system, it will save the labour and machine safety.

Company main products and services:

Our featured products are Drying and Granulating Equipment, Extractor and Concentrator Equipments, Industrial Pulverizer, Mixing Machines and other non-standard equipments, pumps, fluid pipe fittings and also we can provide users with automatic control DCS, Warehouse Management System WMS, manufacturing execution system MES overall planning and design, euipment installation and commissioning services, and undertake turnkey projects.
