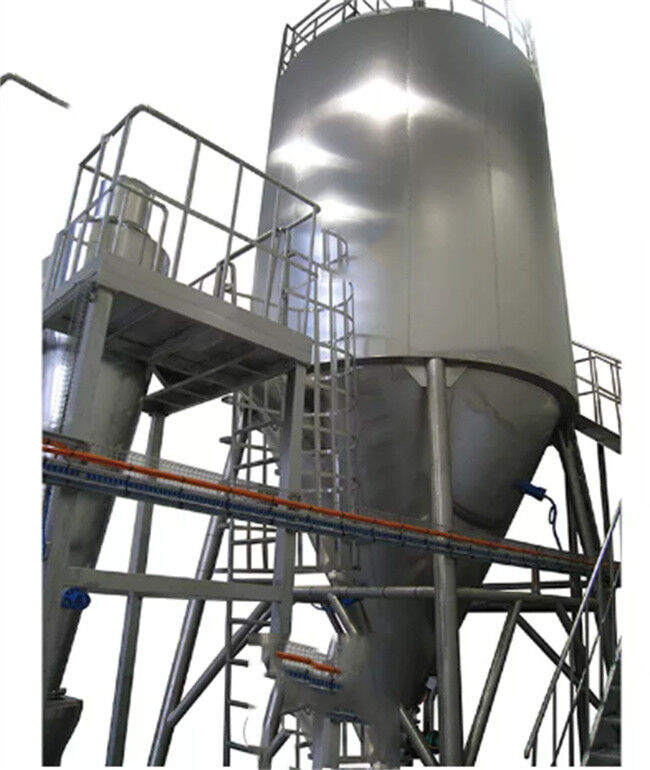

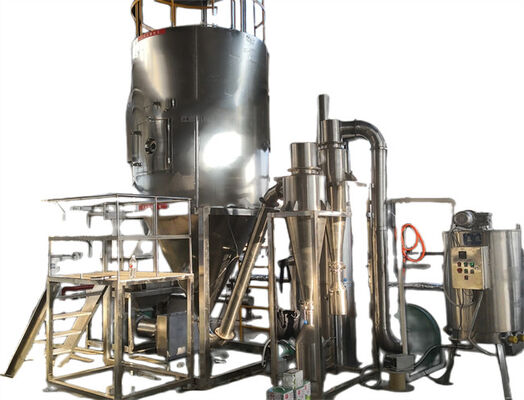

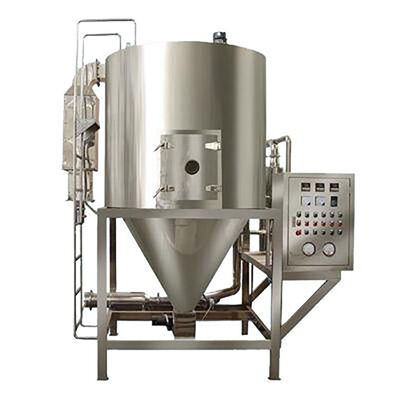

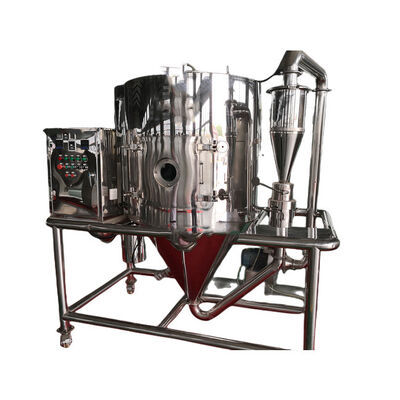

Description of GLP Series Powder Spray Drying Machine Industrial
High Speed Centrifugal Milk Powder Blood Powder Spray Drying Machine Industrial
Spray dryer is suitable for solution, suspension, slurry, paste material, etc. Liquid material is atomized to small fog drops. And fog drops contact with hot air directly in the drying tower. Moisture content is evaporated instantly. So spray dryer features high efficiency, high mass transfer area, and short drying time, in general it is 5~30 seconds. Operating temperature can be adjusted according to actual situation, in general inlet air temperature is 150~500°C. And its automation control degree is control, environment solution environment can be solved.
Various fields where the production of a free powder sample is required. it has successfully processed samples in the following areas:
Beverage, Flavours and colourings, Milk and egg products, Plant and vegetable extracts, Pharmaceuticals, Synthetics Heat sensitive materials, Plastics polymers and resins, Perfumes, Blood, Ceramics and superconductors Biochemicals, Dyestuffs, Soaps and detergents, Foodstuffs, Adehesives, Oxides, Textiles, Bones, Teeth and tooth amalgam and many others.
Technical parameters For Plant Extracts Spray Dryer
| Model-GLP |
-5 |
-10 |
-25 |
-50 |
-80 |
-100 |
-150 |
-200
|
-300
|
| Water evaporation(kg/h) |
5 |
10 |
25 |
50 |
80 |
100 |
150 |
200 |
300 |
| Liquid input amount(kg/h) |
6-7 |
12-14 |
25-34 |
50-68 |
80-108 |
100-135 |
150-203 |
200-270 |
300-406 |
| Capacity (kg/h) |
1-2 |
2-4 |
4.8-7.2 |
9.2-14 |
14.8-22.4 |
18.4-28 |
28-42 |
36.8-56.4 |
55-85 |
| Solid content of liquid material(%) |
18-25% |
| Water content of final product(%) |
3-5% |
| Power(kw) |
36 |
45 |
63 |
99 |
132 |
153 |
204 |
246 |
330 |
| Heat source |
Steam + electricity |
| Collecting way of product and its efficiency |
Two grade cyclone separator or one-grade cyclone separator and one grade film duster≥95% |
| Auto-control instrument |
Indicator of hot air temperature and outlet air temperature, temperature auto regulating controller |
| Inlet air temperature(℃) |
150-300 |
| Outlet air temperature(℃) |
80-100 |
|
Overall dimension
(mm)
|
L |
5000 |
5500 |
7000 |
8000 |
9800 |
11000 |
12200 |
14100 |
15000 |
| W |
3000 |
3500 |
4000 |
5000 |
5700 |
6200 |
7000 |
7800 |
9000 |
| H |
4500 |
4600 |
5200 |
6500 |
7600 |
8100 |
9000 |
9850 |
11100 |
