Specializing in the production of pharmaceutical machinery and granulating drying equipment.
 |
| Place of Origin: | JIANGSU CHINA |
| Brand Name: | SNYNXN |
| Certification: | CE ISO GMP |
| Model Number: | GLP 5 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotaible |
| Packaging Details: | Film Wrapping, Wooden Case. |
| Delivery Time: | within 60 days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100 set/year |
| Type: | Spray Drying Equipment | Application: | From Liquid To Dry Powders |
|---|---|---|---|
| Evaporation Capacity: | 5-2000 (kg/h) Depend On Model | Working Process: | Continuous Feed-in |
| Spray Direction: | Downwards Cocurrent Flow | Temperature Range Of Inlet Air: | 140°C -300°C Adjustable |
| Core Components: | Bearing, Pump, Gear, Motor, Gearbox | Drying Time: | 1h~1.5h |
| Key Selling Points: | Long Service Life, Easy To Operate, Competitive Price | Warranty: | 1 Year, 2 Years Of Core Components |
| High Light: | SNYNXN 2000kg/h spray dryers pharmaceutical,Powder Making spray dryer pharmaceutical 2000kg/h,2000kg/h Pilot Spray Dryer Machine |
||

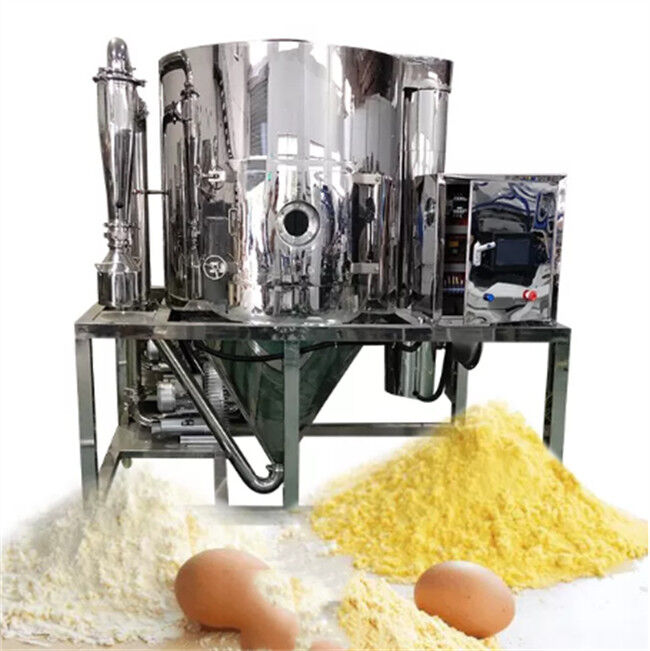

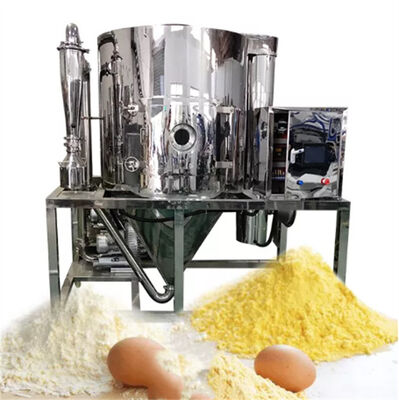

Description of GLP Series Egg Powder Making Machine Spray Drying Machine
Egg Powder Making Machine Spray Drying Machine Price Pilot Spray Dryer Machine
Atomizing drying machine is the high efficient drying equipment, to make dry powder or granule from liquid, emulsion, suspension and pumpable pasty liquid, especially for thermosensitive material, it can keep color, original flavor and chemical feature of raw material, and the finished dry powder or granule have good quality,purity, fluidity and solubleness.
This equipment features by high accuracy & speed & efficiency, simple production process, labor-cost saving, widely applied in the industry of chemical, food, pharmacy, biochemistry, light industry,etc.
Working Principle:

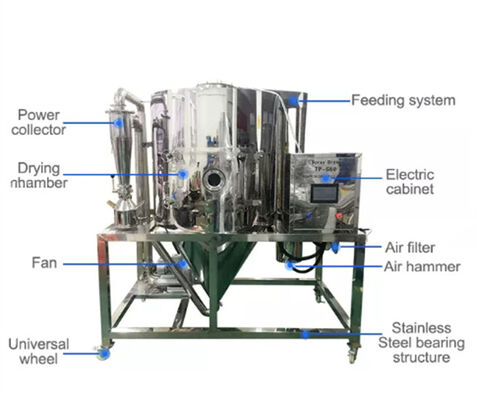

After filtering and heating, the air would enter into upper air-deployer of drying tower, and then come in in hot spiral form. At the same time, the raw liquid material would be atomized by tower from upper inside, become the super tiny globule in mist type, the surface of which would contact the hot air fully, then finished dry powder would be achieved in short time and collected at the bottom of tower and be discharged from cyclone separator, the gas would be exhausted outside.
Features:
Technical Specification:
| Model-GLP | 5 | 25 | 50 | 150 | 200-2000 |
| Tem of air inlet | 140-350 adjustable | ||||
| Tem of air outlet | 80-90 | ||||
| Max. water evaporation(kg/h) | 5 | 25 | 50 | 150 | 200-2000 |
| Transmission type of atomizor | By air compressed | Mechanical | |||
| Max.rotary speed(r.p.m) | 25000 | 18000 | 18000 | 15000 | 8000-15000 |
| Diameter of spraying disc(mm) | 50 | 120 | 120 | 150 | 180-240 |
| Heating resource | electricity | electricity | Steam+electricity,fuel oil, gas, airheater | ||
| Max. Heating power(kw) | 9 | 36 | 72 | 99 | |
| Overall size(m) | 1.8×0.93×2.2 | 3×2.7×4.26 | 3.5×3.5×4.8 | 5.5×4×7 | According to circumstance |
| Dry powder recycled(%) | ≥95 | ||||
Operation Tips:
1. Atomizating: Atomizing system must insure uniform spraying fogdrops.
2. Hot airflow and fogdrops contacting: While the hot air come into drying tower, user have to consider the air flowing way and angle. No matter co-current flow, adverse current or mixed flow, user must insure the sufficient heat exchange, which is the key way to make sure the dry efficiency.
3. The angle design of pipelines and cone: It is pretty important to choose the suitable angle, please contact us for more working experience.
Successful Experience Overseas of Spray Dryer
Our Factory
1. Professional customize based on more than 15 years manufacturing experience.
2. ISO | CE | SGS | BA certification reliable quality guarantee.
3. Factory directly sale for competitive price, help you save cost.
4. Fast delivery within 10 days of hotsale types.
5. Professional service team, provice 24h 7days online service.
