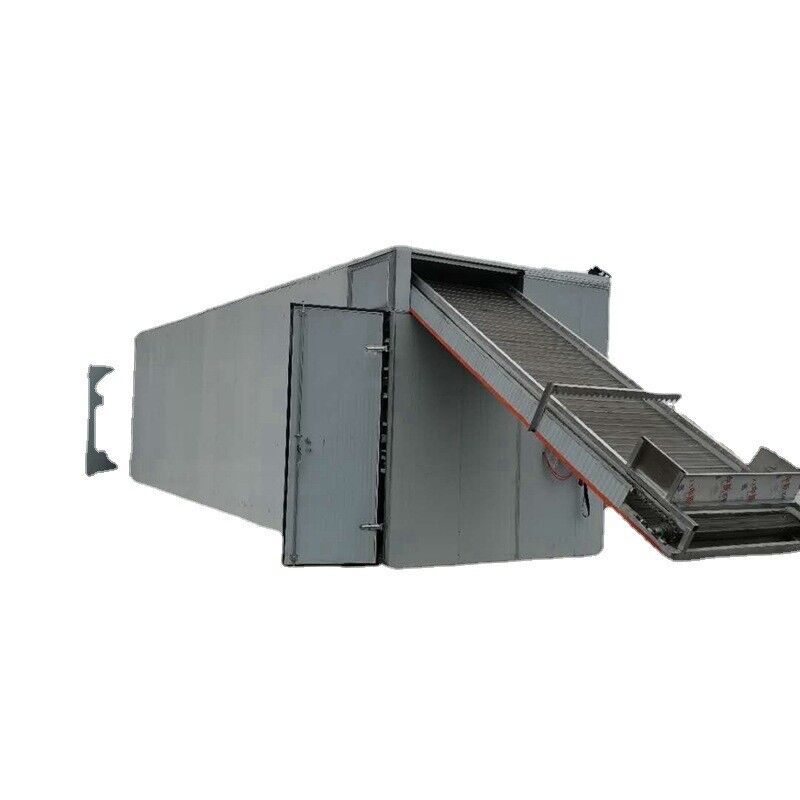

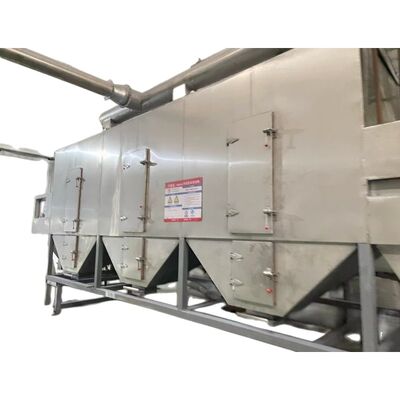

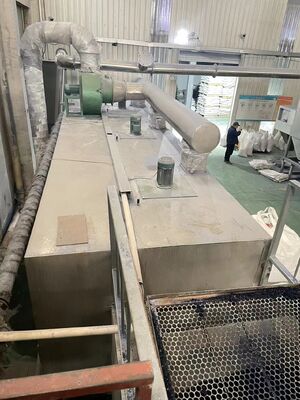

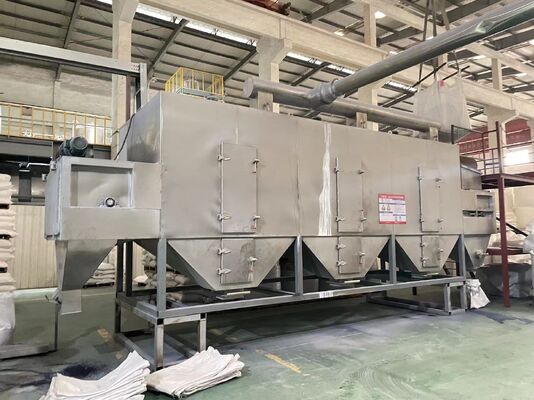

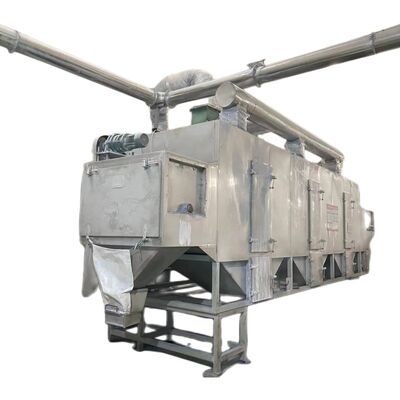

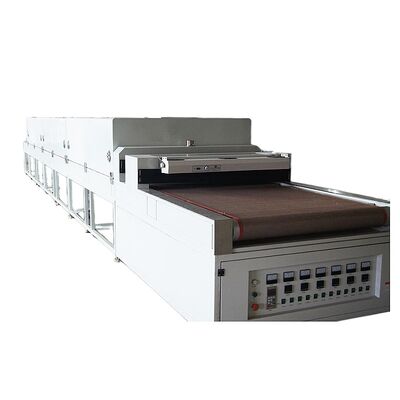

Description of DW Model Continuous Hot Air Conveyor Mesh Belt Dryer Machine
Mesh belt dryer is a batch type, continuously working drying equipment. Mesh belt dryer is usually used to dry various briquettes, such as coal briquette, mineral powder briquette, iron powder briquette, fluorite powder briquette. Moisture content after drying could reach 5% below (moisture content is adjustable by the control system). It is widely used and an important equipment in briquette production line. Also, we could use mesh belt dryer of stainless steel to dry cassava chips, fruits, vegetables, medicine, food, etc. Mesh belt dryer has features with high efficiency, high capacity, high evaporation strength, standardized production. We could increase the segment according to the capacity. Mesh belt dryer has a high efficiency for the materials that request low moisture content. We could supply customization service according to the client request. The main heating mode is electric heating, steam heating, hot air heating, Materials that are processed by mesh belt dryer are easy to store and transport. Mesh belt dryer is energy-saving and environment-protecting equipment that creates a good economic benefit and social benefit.
Mesh size between 12-60 mesh, with the stainless steel or other non-metallic materials. The thickness of material on the belt normally between 20-100mm.
Mesh belt dryer is mainly used for drying finished briquette to meet a low moisture for transportation or using, also it has other wild usages for all kinds of material.
Applications
1. Food Industry: De-watering vegetable, particle feed, monosodium glutamate, shredded coconut stuffing, garlic, cushaw, turnip, yam, bamboo shoot, etc.
2. Chemical Industry: Organic pigment, compound rubber, acryl fibre, medicine material, etc.
3. Others: Plastic product, small wooden product, ageing for the electronic component device.
Working principle
Mesh belt type drying machine main principle is the material evenly tiled on the mesh belt, is driven by the drive device in the dryer moving back and forth, hot air in materials and the cross flow, water vapour from the wet discharging hole in discharge, so as to achieve the purpose of drying. Network with 12-60 to wire mesh belt, the body length by a combination of the standard section, in order to save space, the drying mechanism into multi-layer, common has two room three and two-room five layers, length 6-40m, effective width 0.6-3.0m.
The material has the nose to enter slowly through the drying for drying, net belt line speed depending on the type of material and water content. Air flow to the use of negative pressure, porous air, to ensure the effective drying area, wind speed distribution uniformity, improve the drying effect. In order to get the best drying effect and the appropriate output, the water content of the material, the line speed of the net belt, the air volume and the air temperature must be the appropriate, reasonable and organic combination.
Advantage of High-Quality Perlite Insulation Board Microwave Drying Machine
1. Short time,fast and evenly.
2.Easy to control.Microwave equipment is simple,advanced technology,easy to operate.
3. High efficiency.As the microwave dryer can be absorbed easily by the materials which contain moisture, there is very few wave
wasted. Compared with the traditional ultrated rays heating ways, it will save energy at least 30%.
4. Keeping fresh.Microwave drying has a thermal effevt and biological effect,which can sterilize and prevent mold at low
temperatures.So the nutritions of food can be protedcted well.
Mesh Belt Dryer Machine Technical Parameters
| Type |
DW-1.2-8 |
DW-1.2-10 |
DW-1.6-8 |
DW-1.6-10 |
DW-2-8 |
DW-2-10 |
DW-2-20 |
| Quantity of unit |
4 |
5 |
4 |
5 |
4 |
5 |
10 |
| Belt width(m) |
1.2 |
1.6 |
2 |
| Length of drying section(m) |
8 |
10 |
8 |
10 |
8 |
10 |
20 |
| Thickness of raw material(mm) |
≤60 |
| Operation temperature(°C) |
50-140 |
| Steam pressure(MPa) |
0.2-0.8 |
| Steam consume(kg/h) |
120-300 |
150-375 |
150-375 |
170-470 |
180-500 |
225-600 |
450-1200 |
| Drying time(h) |
0.2-1.2 |
0.25-1.5 |
0.2-1.2 |
0.25-1.5 |
0.2-1.2 |
0.25-1.5 |
0.5-3 |
| Drying strength(kg/h) |
60-160 |
80-220 |
75-220 |
95-250 |
100-260 |
120-300 |
240-600 |
| Power equipped(kw) |
11.4 |
13.6 |
11.4 |
13.6 |
14.7 |
15.8 |
36.8 |
| Overall dimensions |
L(m) |
9.56 |
11.56 |
9.56 |
11.56 |
9.56 |
11.56 |
21.56 |
| W(m) |
1.49 |
1.49 |
1.9 |
1.9 |
2.32 |
2.32 |
2.32 |
| H(m) |
2.3 |
2.3 |
2.4 |
2.4 |
2.5 |
2.5 |
2.5 |
| weight(kg) |
4500 |
5600 |
5300 |
6400 |
6200 |
7500 |
140 |
Features of Conveyor Mesh Belt Dryer
1, Air quantity, heating temperature, materials staying time and feeding speed can be adjusted to achieve the best drying effect.
2, The equipment configuration is flexible, mesh belt washing system and materials cooling system can be used.
3, Most air is recycled to realize saving energy
4, The machine is equipped with unique air dividing apparatus, it makes the hot air distribute uniform better and guarantee the quality of products is constant.
5, Heating source can be steam, conduction oil,, electricity, coal (oil), or hot air furnace.
Our Factory
-
International high quality certification product chain
-
Manufacturer, more reasonable price
-
Solid technical support and after-sales service
-
Uphold the principle of “Customer Supreme”( Balance payment after equipments run normally)
-
Exports to more than 20 countries and regions, good customers feedback
-
One-stop service, customized exclusive project feasibility report
SNYNXN located in the birthplace of China drying equipment----Jiangyin City, Jiangsu Province which is 120km away from Shanghai city, with a comfortable environment and convenient transportation access.
SNYNXN is a professional manufacture of drying machine, which include Seaweed processing machine, Seaweed drying machine (Cottonii to carrageenan, Agar agar ), Spray dryer, Vegetable and fruit Belt dryer, Conveyor Belt Dryer, mesh belt dryer, Food ingredients spray dryer, Flavor spray dryer (Cocoa, Maltdextrin,Gum Acacia), Lab Spray dryer, Gelatin processing machinery, Gelatin drying machine (Hide and bone),Gelatin production line. we also deal in high-quality fermentation tank, Bright tank , Extraction tank, concentration tank , evaporator and etc.
We are sure that our high quality products and excellent services will be appreciated by the growing list of satisfied customers.
Contacting us is the first step to build a long and successful business relationship with us.
Pre-service:
1.We provide presales service in various forms, making investment budge, manufacturing, planning, so that customers can make a reasonable plan with less cost.
2.We will fist check customer’s goods and goods size, then we will recommend suitable wrapping machine to 100% suitable.
3.We will recommend and offer machine according to customer’s use and purchase budget.
Sale service
1. Ensure product with high quality and pre-commissioning before delivery; provide each manufacturing step photo for customer checking on time.
2.Testing the machine and making video for customer’s checking.
3. Delivery on time;
4.Provide full sets of documents as customer’s requirements.
After-sale service
1.We will guarantee the machine quality for 1 year.
2.We provide free training and answer customer's question on technology in time.
