Cassava Powder Flash Vaporization Dryer XSG Chemical Drying Silicon Trioxide Clay

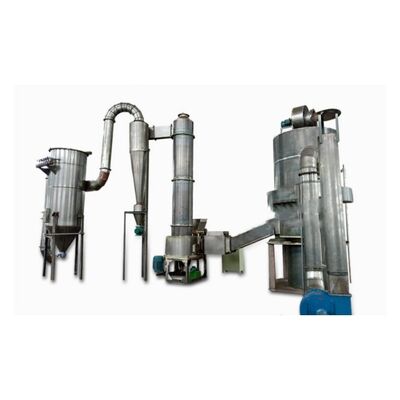

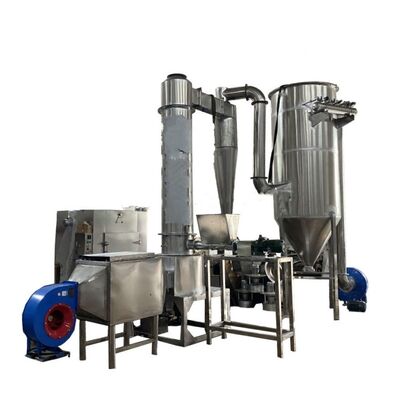

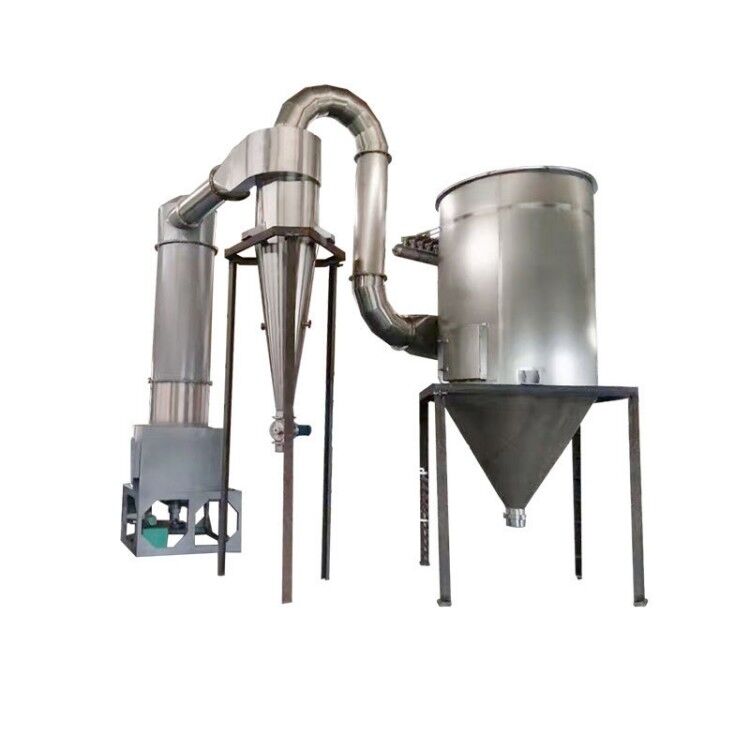

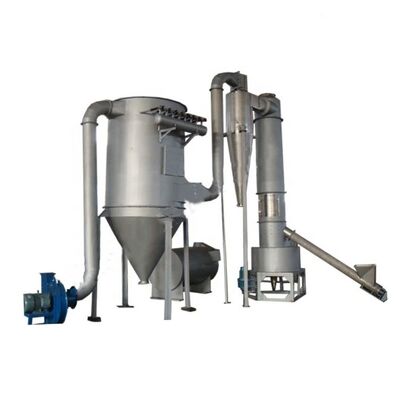

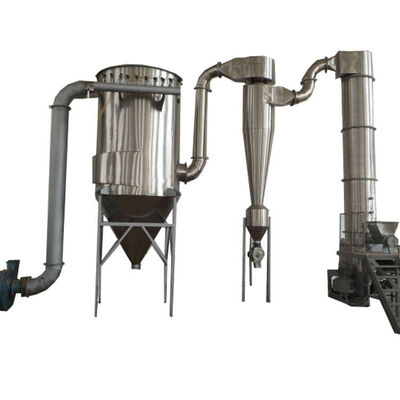

Product Description: XSG Series Revolving cassava flash vaporization dryer

XSG Series Revolving Flash Vaporization Dryer is a new model of drying equipment.It is represents advanced technology,compact structure and wide application.It has a large production capacity with high quality,less energy consuming and non-pollution.Processes of drying,crushing and sieving complete in the same equipment once.Its performance is up to the international advanced level.

Operating Principle:

Hot air goes into the bottom of the dry through an entrance pipe with an appropriate speed,and drives stirring and drying chamber.The air flow brings strong shearing,blowing,floating,and revolving to granulated,collide and rub.Materials become small particles and easy to transfer the heat.Heavy wetter particles got granulated,small particles is brought up by air flows and get dry further in this process.In this rotary motion of gas solid two phase fluid makes the solid particle separated from the gas flow by centrifugal force,the relative speed between gas and solid is very high,therefore the heat transmission is more effective and great heat released in the process.

Feature:

1.Options of feeders make sure continuous and stable feeding,so phenomenon of bridging won’t come up.

2.Set up the special cooling device in the desiccator bottom has prevented the suppliers from producing the rotten phenomenon in the high temperature district of the bottom.

3.Special atmospheric pressure seal installation and bearing cool the device,the service life of the running part of effective extension.

4.Special points of wind device have reduced the obstruction of the equipment,and have offered the wind amount of treatment of the desiccator effectively.

5.Dry room equips with hierarchical ring and swirl slice,suppliers detailed degree and end moisture content adjustable.(Such as calcium carbonate end but from regulator to moisture content.1%)

6.As to other dry methods,can increase the proportion of the suppliers effectively.

7.Circumference speed is high in the drying chamber,the time of material staying is short in order to prevent sticking on the inner wall and to prevent material deterioration.It is high efficient,fast,small space occupancy and great production capacity.

Main Application:

Inorganic:Boric acid,calcium,copper sulphate, iron oxide rust,carbonic acid barium,oxidizing the antimony three times,various kinds of metal caustics,various kind of heavy metal salt,formatting the ice crystal,etc.

Organic matter:Atrazine(pesticide),cadmium laurate,benzoate acid,germicide,sodium oxalate,cellulose acetate and so on.

Pottery:kaolin,silicon dioxide,clay.

Fuel:anthraquinone,black ferric oxide,indigo blue pigment,butyric acid,titanium hydroxide,zinc sulfide,all kinds of intermediate of azo dye-stuff.

Foodstuff:soya protein,agglomerative starch,lees,triticum,wheat starch and so on.

Nowadays, Changzhou Jiasheng Machinery Co.,Ltd has customers both in China and abroad.Foreign customers such as Russian,East Europe,Middle East,South America,North America,East Asia,Southeast Asia, Africa,etc.







Pre-service:
Act as a good adviser and assistant of clients to enable them get rich and generous returns on their investments.
1. Introduce the product to the customer in detail, answer the question raised by customer carefully;
2.Make plans for choice according to the needs and special requirements of users in different sectors;

Sale-service:
1. Ensure product with high quality and pre-commissioning before delivery;
2. Delivery on time;
3.Provide full set of documents as customer’s requirements.

After-sale service:
Provide considerate services to minimize clients’ worries.
1.Assist clients to prepare for the first construction scheme;
2.Install and debug the equipment;
3.Train the first-line operators;
4. Examine the equipment;
5.Take initiative to eliminate the troubles rapidly;
6.Provide technical support;
7.Establish long-term and friendly relationship.

Service commitment:
1. Provide clients one-year warranty to make sure the machine work well;
2.We always keep certain inventory level of spare parts, which means the replacements can be sent to you timely;
3.Send every client a preferential quotation.



FAQ

In order to quote you the proper machine model price, we would like to get the following information include in your inquiry:
1.What is the raw material? Material related characteristic? Does it corrosive, strong basicity, or highly acid? Please confirm.
2.What is the capacity per hour you need (kg/h),this capacity is haddle capacity or final product capacity?

3.What is the initial moisture and final moisture of finished products you want?
4.What about the maximum heat temperature of raw material?
5.What kind of fuel you use to heat the dryer? Natural gas, electricity, fuel oil or steam?
6.Which equipment material do you like prefer? SUS304, SUS316L or Carbon steel?
7.Provide us your country’s electricity information, such as phases, voltage, HZ?
