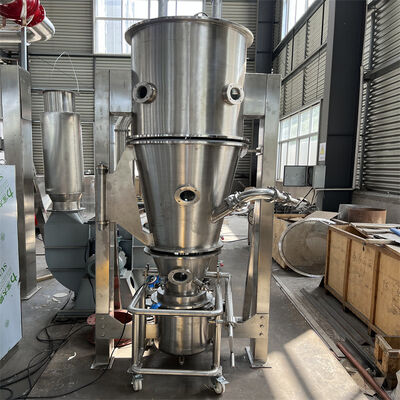

FLP series Fluidized Fluid Bed Dryer Coating Machine Granulator From China manufacturer factory
Description

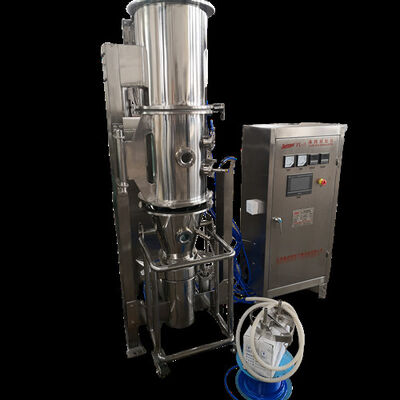

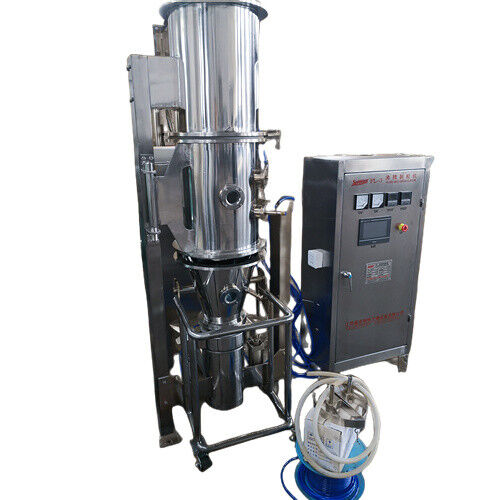

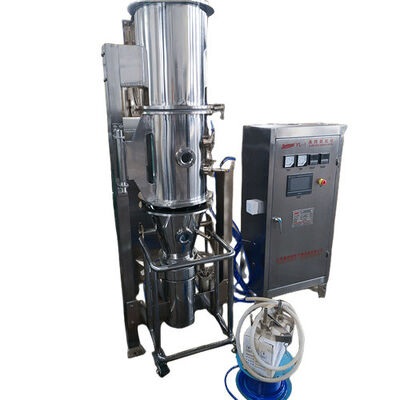

FLP 3 spray coating granulator integrates spray drying and fluid bed granulation function.
One machine realizes the functions of two machines, which can save the experimental site and expense. It is an innovative product of spray granulation. Top spray and bottom spray are designed for our lab granulator, of which, the top spray is used for fluidized-bed granulation, while the bottom spray for fluidized-bed coating.
FLP fluid bed coating granulator adopts touch screen with a PLC control mode. Both the operating interface and operation manual are in English. At the same time, we also provide a video to demonstrate every operating step in detail, as if an engineer is by your side. Letting you know how to operate and make full use of the lab granulator.
Technical parameters
| Item Specification |
10 |
15 |
20 |
30 |
45 |
60 |
90 |
120 |
| Capacity |
kg/batch |
2.5-10 |
3-15 |
5-20 |
7.5-30 |
10-45 |
15-60 |
20-90 |
30-120 |
| Dia of container |
mm |
700 |
800 |
900 |
1000 |
1100 |
1200 |
1400 |
1500 |
| Power of fan |
Kw |
7.5 |
11 |
11 |
11 |
15 |
15 |
18.5 |
18.5 |
| Noise |
db |
No more than 75db Separated of fan |
| Compressed air |
Pressure |
Mpa |
0.6 |
| Consumption |
M3/min |
0.9 |
0.9 |
0.9 |
0.9 |
0.9 |
0.9 |
1.6 |
1.6 |
| Steam |
Pressure |
Mpa |
0.4-0.6 |
| Consumption |
Kg/h |
35 |
42 |
47 |
60 |
140 |
160 |
160 |
240 |
| Power of electrical heater |
Kw |
By client |
| Size of installation for reference |
H1(mm) |
2960 |
3350 |
3650 |
3720 |
3720 |
3850 |
3950 |
4190 |
| H2(mm) |
3320 |
3820 |
4120 |
4190 |
4190 |
4320 |
4420 |
4660 |
| H3(mm) |
2770 |
3130 |
3430 |
3500 |
3500 |
3630 |
3720 |
3975 |
| Bl(mm) |
1160 |
1460 |
1560 |
1600 |
1760 |
1860 |
1960 |
2060 |
| B2(mm) |
1860 |
2460 |
2660 |
2860 |
3060 |
3260 |
4360 |
3660 |
| L(mm) |
1250 |
1400 |
1450 |
1500 |
1550 |
1600 |
1650 |
1700 |
| φ |
180 |
250 |
250 |
280 |
280 |
280 |
280 |
315 |
All datas are for reference only • According to the condition of material,our factory has the right change without notice.
FAQ
Q: Delivery period:
A: Around 15-60 days, delivery perious will vary as different types of machinery,
Q: Payment of terms:
A: Acceptable payment terms: T/T, L/C, Cash after signing the contract, firstdeposit 30% of total as prepayment, and rest 70% after approvement but before shipment
Q: Quality Warranty:
A: We guarantee all the machines are brand new; We guarantee every set of our machines after shipment have guarantee period 15 months, during warranty period we will provide technician debugging onsite, or free spare parts caused by the malfunction of machines. We guarantee we reply the user's bewilderment within 24 hrs after receive notification.
Q: Package of merchandise:
A: Inner packed with plastic wrapping, external is plywood case. Standerd for epxort packing.
Q: What is service when we place an order with you?
A: First we invite you to visit our factory, and negotiate the tecnnology and choose model of machines, and give feasible advice of each material. Secondly visit our factory to do FAT before shipment, give us your advice and we modify the machine if not meet the user's satisfaction. Lastly, we will dispatch at least 1 experienced and responsible technician to go abroad for commissioning and train the operators. lf no need onsite commissioning, we provide video guidance.
Q: Which information do you require before you could choose model subsequently?
A: We need to know the information as below:
What is your material name?
What is the initial moisture percentage before drying?
What is the residual moisture percentage after drying?
What is the heating temperature your material can undertake during drying process?
What is the heating source, steam, electricity, natural gas or others?
Last but important, what is capacity needed as how many kgs/h before drying or after drying?
