Specializing in the production of pharmaceutical machinery and granulating drying equipment.
 |
| Place of Origin: | JIANGSU CHINA |
| Brand Name: | SNYNXN |
| Certification: | CE ISO GMP |
| Model Number: | FLP 120 |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Packaging Details: | Standard Export Packing in Wooden case |
| Delivery Time: | IN 60 DAYS |
| Payment Terms: | T/T, L/C |
| MachineType: | Stainless Steel Fluid Bed Granulating Coating Machine | Application Scope: | Pharmaceutical,Chemical,Food |
|---|---|---|---|
| Container Diameter: | 700 - 1500 MM | Capacity: | 2.5-120 KGS/BATCH |
| Number Of Nozzles: | 1-3 | Compressed Air: | 0.4 - 0.6 Mpa |
| Core Components: | PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, P | Key Selling Points: | Multi-functional, Fluid Bed Granulator And Coating |
| Construction Material: | SS304 Or SS316 Is Optional | After Sales Service: | Online Support, Engineers Available To Service Machinery Overseas |
| High Light: | Vertical Fluid Bed Dryer,Multifunctional Fluid Bed Dryer,Stainless Steel granule coating machine |
||

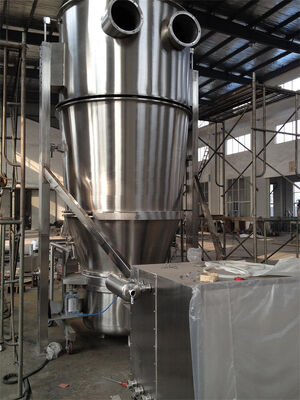

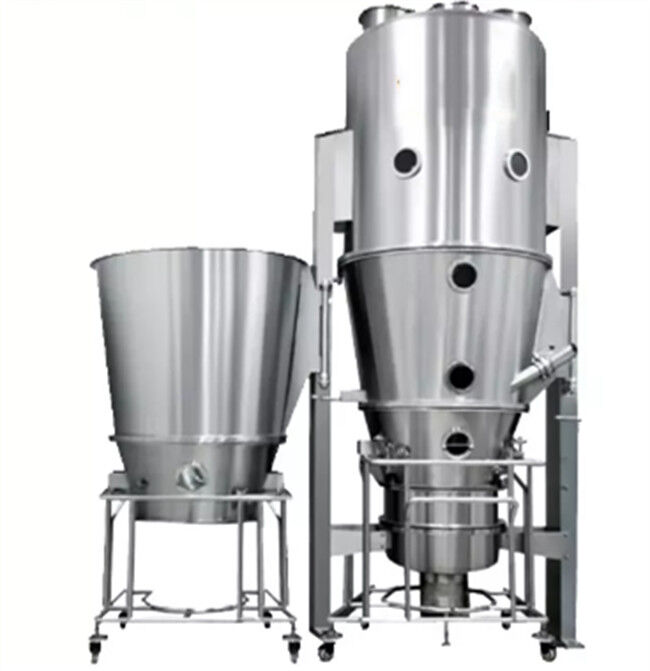

The machine is a multifunctional fluid bed granulator integrating various functions such as top spray, bottom spray and side spray. It has various functions such as mixing, drying, granulating, coating and pelletizing. It is widely used in such industries as pharmaceutical, food, chemical industry, etc.
Work principle
The machine is composed of air inlet system, fluid bed system, top spray system, bottom spray system, side spray system and exhaust and dust filter system. The top spray provides the granulating function, the bottom spray provides the pellet coating function and the side spray provides the pelletizing function. The above functions are realized in one multifunctional fluid bed granulator. Users can select the optional functions according to actual process requirements.
Features
1.The machine adopts modular design. Three functions or any one or two of the functions can be configured according to customer requirements.

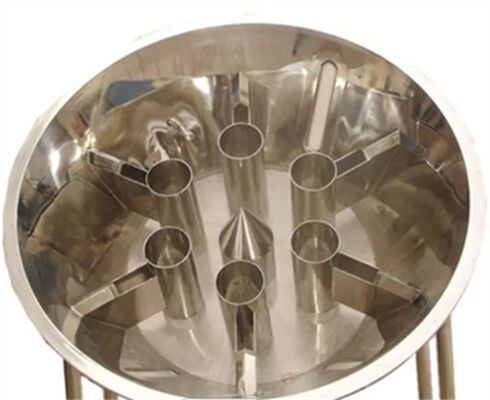

2.The machine is provided with complete function systems including top spray, bottom spray and side spray to conveniently realize such the functions of drying, granulating, coating and pelletizing.
3.The machine adopts PLC automatic control. All operations are completed automatically according to the process parameters set by users. All process parameters can be printed and the original records are true and reliable. It fully meets GMP requirements for pharmaceutical production.
Technical Data:
| Specification Item |
5 | 15 | 30 | 60 | 120 | 200 | 300-1000 | |||
Feed capacity |
/ kg/batch | 4-6 | 10-20 | 25-40 | 40-80 | 80-150 | 150-250 | |||
Raw material container volume |
L | 15 | 50 | 100 | 220 | 360 | 650 | |||
Fan power |
Kw | 4 | 5.5 | 7.5 | 15 | 18.5 | 22 | |||
Compressed air |
Pressure |
MPa | 0.6 | |||||||
Consumption |
M3/min | 0.4 | 0.6 | 0.9 | 1.3 | 1.8 | 2.4 | |||
Steam |
Pressure |
MPa | 0.4 -0.6 | |||||||
Consumption |
Kg/h | 9 | 64 | 85 | 181 | 250 | 330 | |||
Host size |
H1(mm) | 2600 | 2850 | 3150 | 3250 | 3500 | 3800 |
Custermorised Design |
||
| H2(mm) | 340 | 490 | 590 | 790 | 890 | |||||
| H3(mm) | 2630 | 2930 | 3020 | 3280 | 3580 | |||||
| B1(mm) | 1010 | 1160 | 1460 | 1660 | 2060 | 2260 | ||||
| B2(mm) | 1560 | 1860 | 2460 | 2860 | 3660 | 4060 | ||||
| φ1(mm) | 550 | 700 | 1000 | 1200 | 1600 | 1800 | ||||
| φ2(mm) | 180 | 250 | 250 | 280 | 280 | 315 | ||||
| L(mm) | 850 | 1550 | 1700 | 1800 | 2000 | 2100 | ||||
1.Specialized in designing, developing and manufacturing.
2.Above 130 National patents,national and provincial technology innovation awards
3.Provincial Pharma Equipment Engineering Technology Research Center
4.National High-Tech,National Pharma Equipment Industry Association,Provincial new special expertise Enterprises
5.Manufacture the solid preparation production line equipment for above 500 domestic and oversea enterprises
6.Modern production workshop and production line of high-end manufacturing equipment
7.Professional and efficient after-sales service management
8.Competitive price and prompt delivery
9.Meet ISO9001 and CE
10.OEM/ODM available
