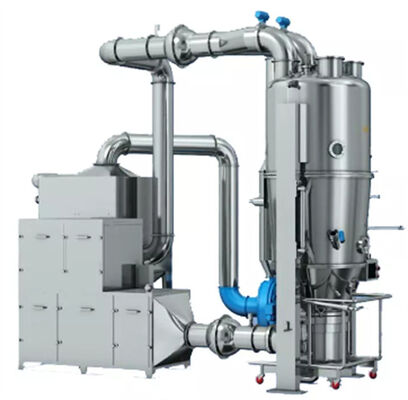

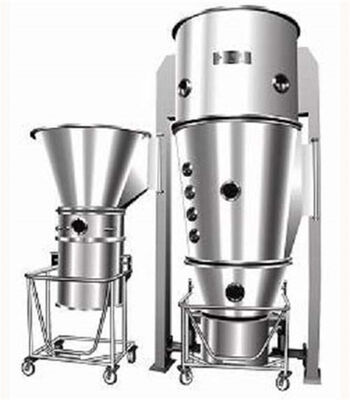

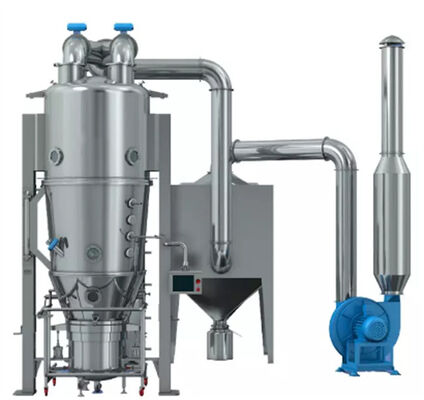

ISO Medicine Fluid Bed Coater Granulator Machine Granules And Pellet Coating Machine

Product Details:

Place of Origin:	JIANGSU CHINA
Brand Name:	SNYNXN
Certification:	CE ISO GMP
Model Number:	FLP 90

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiable
Packaging Details:	Standard Export Packing in Wooden case
Delivery Time:	IN 50 DAYS
Payment Terms:	T/T, L/C

Contact Now

Detailed Product Description

Type:	Fluid Bed Coating Machine	Application:	Pharmaceutical, Food, Chemical And Other Industries
Container Diameter:	700 - 1500 MM	Capacity:	4-250 Kg/batch, Customized
Working Temperature:	RMT- 120 C	Control System:	Automatic PLC+Touch Screen
Key Selling Points:	Easy To Operate, Low Cost, Long Service Life	Power Of Electric Heater:	Depends On Client's Requirement
Construction Material:	304/316, According To Customer's Requirements	Warranty:	1 Year, 2 Years Of Core Components
Highlight:	ISO Fluid Bed Coater , Medicine Fluid Bed Coater , SS304 pellet coating machine

Description of Multifunctional Medicine Fluid Bed Drying and Coating Machine

Medicine Fluid Bed Granulator Coater Coating Machine Granules And Pellet Coating Machine For Omeprazole Capsule

The machine is mainly used for the operations of mixing, granulating,drying and coating of granule,powder material in pharmaceutical industry , foodstuff industry,chemical industry etc. Such as granule of tablet, granule for quick resolving drinking, condiment.

Main Features

Through powder granulation, improve fluidity, reduce dust flying.
The solubility was improved by powder granulation.
Mixing- granulation -drying is completed in one machine.
Use anti static filter cloth to ensure the safety of the equipment.
Set up the pressure discharge hole, in case of explosion, personnel will not be injured.
There is no dead angle in the equipment, the loading and unloading is light and fast, and the washing is convenient, which
conforms to the GMP specification.
High degree of automation, equipped with program control, simulation screen display technology for users to choose.

Working Principle

Powder material into the hopper container, due to the effect of hot air flow, the powder suspension shows a fluidized circulation flow and achieve uniform mixing,at the time, spray a mist binder to wet the powder in the container to make the powder condensed into loose small particles, when granulating, due to the high-efficiency drying of hot air flow, the water is continuously evaporated and the powder is solidified continuously, process repeated, forming ideal and uniform spherical particles with multiple micropores, the three processes of mixing, granulation and drying are completed in the container at one time.The water content and disintegration time of solid preparation were taken as the investigation indexes, and the results were tested by T test.

Results: when the solid preparation was dried, the boiling drying method was significantly different from the traditional drying method.

Technical Data

Item		Model (FLP) Specifications
Name		Unit	10	15	20	30	45	60	90	120
Diameter		mm	700	800	900	1000	1100	1200	1400	1500
Productive Capacity		Kg/batch	2.5-10	3-15	5-20	7.5-30	10-45	15-60	20-90	30-120
Power of Fan		kw	5.5	7.5	7.5	7.5	11	11	15	18.5
Steam	Pressure	Mpa	0.4-0.6
	Consumption	Kg/h	35	42	47	60	140	160	180	240
Compressed Air	Pressure	Mpa	0.6
	Consumption	M3/min	0.6	0.6	0.6	0.9	0.9	1.1	1.3	1.5
Noise		DB	No more than 75db of fan

Drug granulation and coating.

Granulation: tablet granule, granule for granule, capsule granule.

Coating: pellet, pill protective layer, color slow release, film, enteric coating.

Food granulation and coating.

Fried sugar, coffee, cocoa powder, cream powder juice, amino acid, seasoning, puffed food. Granulation of pesticides, pigments and dyes. Powder, granule, block material drying.

Our Ceritifications:

SNYNXN is a high-tech enterprise mainly engaged in the research, development, production and sales of Pharmaceutical Machines. The main products are Fluid Bed series, drying and granulating machine etc., which are mainly used in the fields of pharmaceutical, food, health care products and feed.
SNYNXN owns certificates of GMP, CE, SGS, ISO9001, AAA etc. With good quality and professional aftersales service, we enjoy high reputation among our customers over 120 countries and regions around the world.
