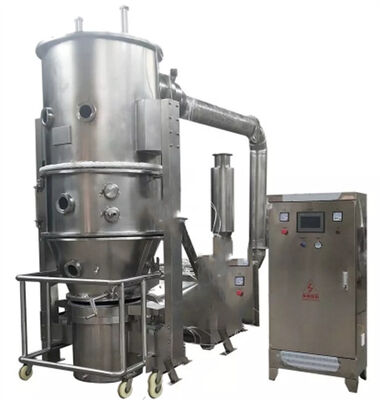

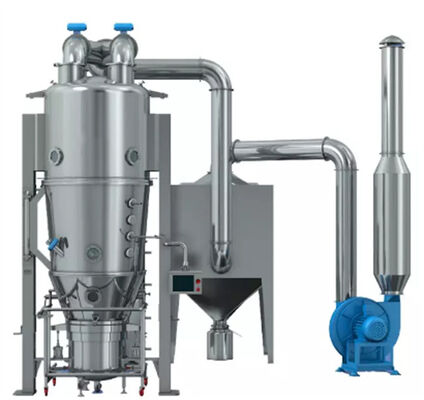

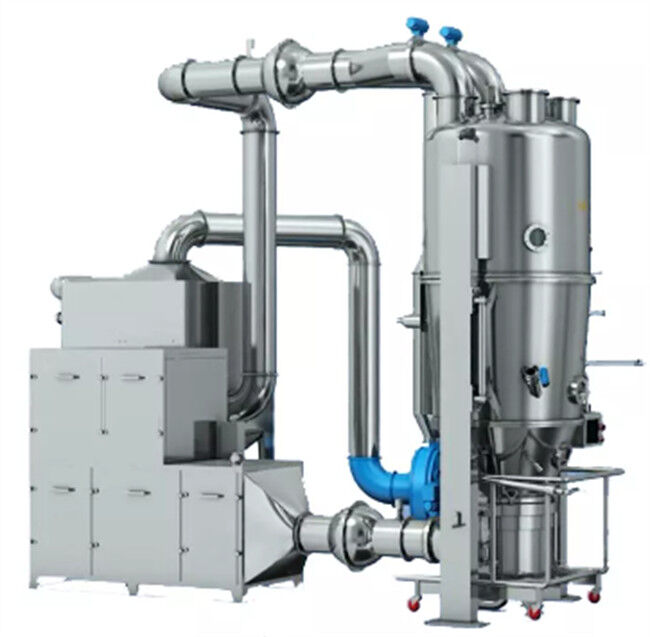

GMP Powder Granules Pellets Fluid Bed Coater Machine For Pharmaceutical Food Feed

Name: GMP Powder Granules Pellets Fluid Bed Coater Machine For Pharmaceutical Food Feed
Brand: SNYNXN
SKU: FLP 90
Rating: 4.7 (186 reviews)

Product Details:

Place of Origin:	JIANGSU CHINA
Brand Name:	SNYNXN
Certification:	CE ISO GMP
Model Number:	FLP 90

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiable
Packaging Details:	Standard Export Packing in Wooden case
Delivery Time:	IN 50 DAYS
Payment Terms:	T/T, L/C

Contact Now

Detailed Product Description

Type:	Multi-functional Fluid Bed Coating Machine	Key Words:	Granulator/Coating Machine/Granules And Pellet Coating Machine
Container Diameter:	700 - 1500 MM	Capacity:	2.5-120 KGS/BATCH
Working Temperature:	40~120℃	Steam Consumption:	0.9-1.6 M3 (depend On Model)
Nozzle:	Two-fluid Type	Inlet Air Filter:	Pre, Middle And High Efficient Filter
Construction Material:	304/316, According To Customer's Requirements	After Sales Service:	Online Support, Engineers Available To Service Machinery Overseas
High Light:	GMP Fluid Bed Coater , 2.5KGS/BATCH Fluid Bed Coater , SUS304 granule coating machine

Description of Multifunctional Fluid Bed Dryer Granulator Coating Machine

GMP Standard Powder Granules Pellets Fluid Bed Coating Machine For Pharmaceutical Food Feed Chemical

Fluid Bed Coater is a new type coating equipment that combined fluid bed spray technology and coating well. It is widely used for film slow and control releasing coating, framework slow and control releasing capsule, pellet coating, granules and powder coating.

Features of Fluid bed coater

1. Coating for bottom spray, material flow in order so uniform and continuous film can be got.

2. Taste masking odor, moisture-proof, antioxidation, prevent water, heat insulation,,coloration and separation coating.

3. Low productive cost, and the coating material is used perfectly.

4. Short travel distance of fog granule and without the problem of “spray drying”.

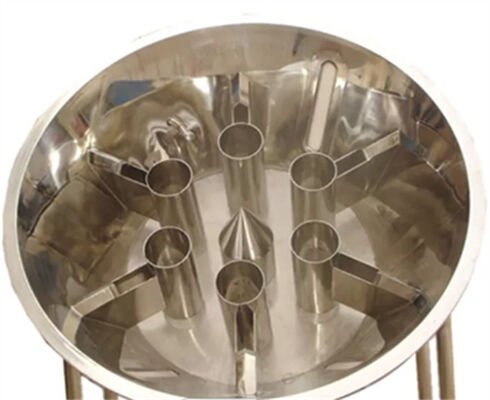

5. The design of cylinder for accelerator or cone for decelerate can be used for coating of granules, powder and pellets.

6. Material has very good dispersion, there is no adhesion.

Technical Data:

Function	Coating and drying
Material	SUS304/ SUS316L
Heating source	Steam/ electricity
Inlet air filter	Pre, middle and high efficient filter
Control system	Touch screen/ Button type
Nozzle	Two-fluid type
Explosion-proof	Option
Working temperature	40~120℃
Compressed air	0.4~0.6Mpa
Certificate	CE, SGS, GMP, AAA

Item		Model (FLP) Specifications
Name		Unit	10	15	20	30	45	60	90	120
Diameter		mm	700	800	900	1000	1100	1200	1400	1500
Productive Capacity		Kg/batch	2.5-10	3-15	5-20	7.5-30	10-45	15-60	20-90	30-120
Power of Fan		kw	5.5	7.5	7.5	7.5	11	11	15	18.5
Steam	Pressure	Mpa	0.4-0.6
	Consumption	Kg/h	35	42	47	60	140	160	180	240
Compressed Air	Pressure	Mpa	0.6
	Consumption	M3/min	0.6	0.6	0.6	0.9	0.9	1.1	1.3	1.5
Noise		DB	No more than 75db of fan

Our Ceritifications:

Company File:

Since its establishment, our company has developed various products, including Fluid bed sereis Dryer, spray dryers, granulators, industrial dryers, mixing machines, etc.

Our products are best-selling all over the world and have gained wide praise, which are applied in food, pharmacy, chemical industry, schools, scientific research institutions and other fields.

In production, we have established a complete quality management system to ensure product quality, realize safe production, and strive to produce attractive appearance, practical, stable, and cost-effective products.

We will always serve you sincerely and believe that SNYNXN will become your preferred supplier.

SNYNXN is a high-tech enterprise mainly engaged in the research, development, production and sales of Pharmaceutical Machines. The main products are Fluid Bed series, drying and granulating machine etc., which are mainly used in the fields of pharmaceutical, food, health care products and feed.
SNYNXN owns certificates of GMP, CE, SGS, ISO9001, AAA etc. With good quality and professional aftersales service, we enjoy high reputation among our customers over 120 countries and regions around the world.
