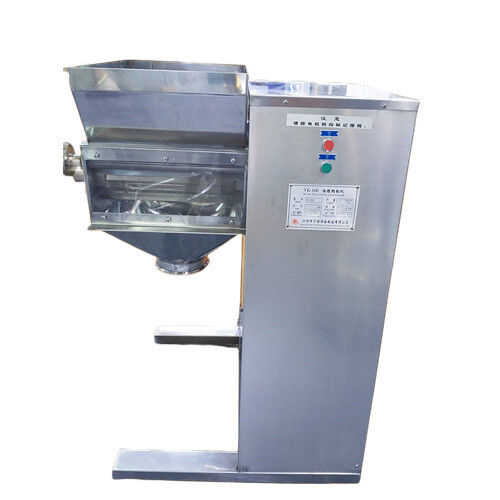

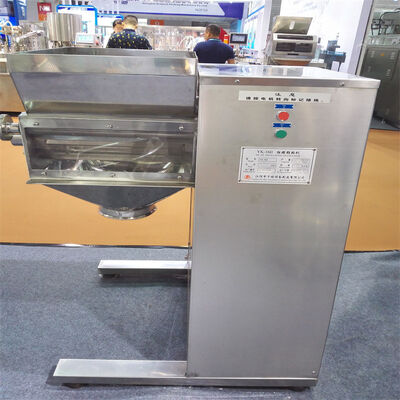

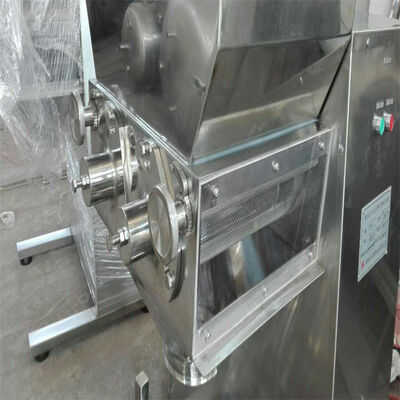

YK Series Pharmaceuticals Oscillating Powder Granulator Machine
It can make wet powdery material into granulates or crush block dry material, as well as carry out speedy granulation.

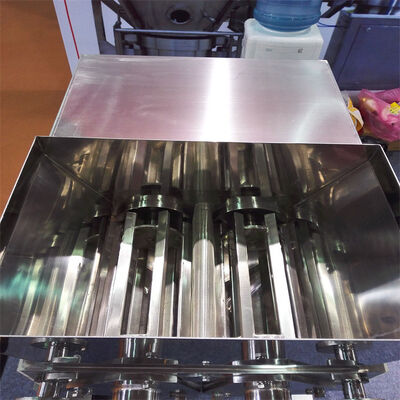

Working principle:The roller is swung repeatedly through mechanical driving, which makes the material extruded from sieve, further granulated or crushed or speedily pelletized.
This machine is mainly suitable for pharmaceutical industry, chemical industry and foodstuff industry to make granule with different specifications. After it is dried through backing, then press it to form all kinds of shaped products. It can also be used for dry block raw material that is crushed and coagulated. All parts in this machine are made of stainless steel. Its appearance is beauty. Its cleaning is very convenient. Its operation is very simple. Its energy consumption is very low.
Technical parameters
| Model |
YK-60 |
YK160
YK160 (Single Escapement) |
YK160
YK160(Double Escapement) |
F-1200 |
(kg/h )
Productive capacity |
20-25 |
60-220 |
200-450 |
600-1200 |
(kw)
Power of motor |
0.37 |
3 |
5.5 |
7.5 |
(r/min )
Revolution of roller |
46 |
65 |
65 |
10-44 |
()
Swing angle |
360° |
360° |
360° |
412° |
(mm )
Diameter of roller |
060 |
0160 |
0200 |
0160 |
(mm )
Overall dimensions |
530×400×530 |
1260×750×1150 |
1400×850×1400 |
3100×930×1250 |
(kg )
Weight |
100 |
300 |
450 |
2200 |
Company profile
Division I professional production of various kinds of pharmaceutical machinery and drying equipment, our products sell well in over 20 provinces and cities, and exported to America, Mexico, Spain, Singapore, Russia, belarus, Egypt, South Korea, Malaysia, the Philippines, the united Arab emirates, Thailand, Vietnam, Pakistan, India, Iran, South Africa, Algeria, Syria, Mongolia, Bangladesh and other countries. The company is constantly updating and developing pharmaceutical machinery, chemical equipment, drying equipment, mixing equipment, granulator, coater and sewage treatment equipment and other products. With strict testing means and a complete set of scientific management procedures, and through the ISO9001 international quality system certification, product quality has reached the advanced level at home and abroad, pharmaceutical machinery products in line with "GMP standard". Our company tenet: product quality to win with excellence, sales and service to honesty, the contract to honor the letter.
Corporate core values
FAQ
Q: Delivery period:
A: Around 15-60 days, delivery perious will vary as different types of machinery,
Q: Payment of terms:
A: Acceptable payment terms: T/T, L/C, Cash after signing the contract, firstdeposit 30% of total as prepayment, and rest 70% after approvement but before shipment
Q: Quality Warranty:
A: We guarantee all the machines are brand new; We guarantee every set of our machines after shipment have guarantee period 15 months, during warranty period we will provide technician debugging onsite, or free spare parts caused by the malfunction of machines. We guarantee we reply the user's bewilderment within 24 hrs after receive notification.
Q: Package of merchandise:
A: Inner packed with plastic wrapping, external is plywood case. Standerd for epxort packing.
Q: What is service when we place an order with you?
A: First we invite you to visit our factory, and negotiate the tecnnology and choose model of machines, and give feasible advice of each material. Secondly visit our factory to do FAT before shipment, give us your advice and we modify the machine if not meet the user's satisfaction. Lastly, we will dispatch at least 1 experienced and responsible technician to go abroad for commissioning and train the operators. lf no need onsite commissioning, we provide video guidance.
Q: Which information do you require before you could choose model subsequently?
A: We need to know the information as below:
What is your material name?
What is the initial moisture percentage before drying?
What is the residual moisture percentage after drying?
What is the heating temperature your material can undertake during drying process?
What is the heating source, steam, electricity, natural gas or others?
Last but important, what is capacity needed as how many kgs/h before drying or after drying?
