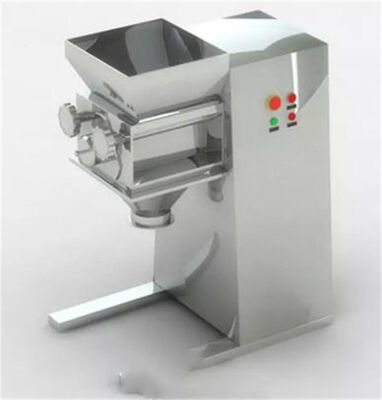

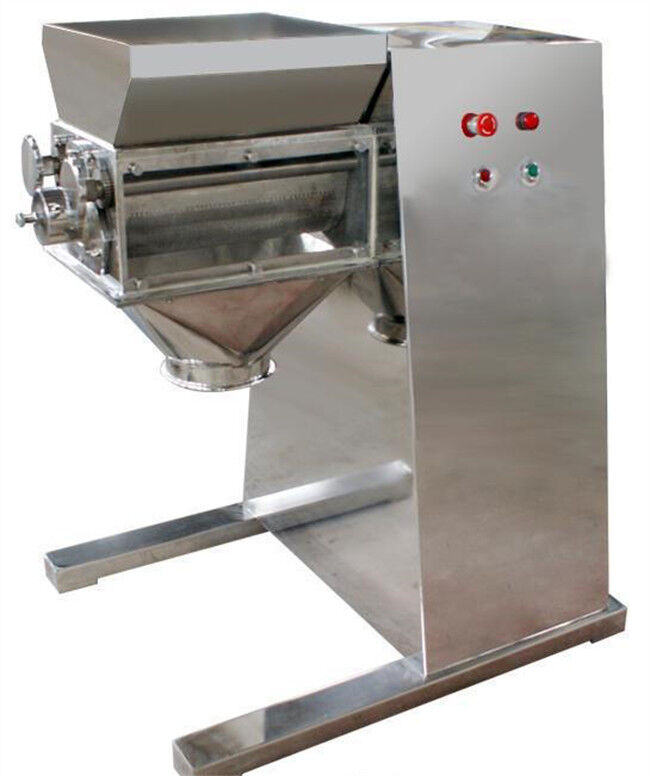

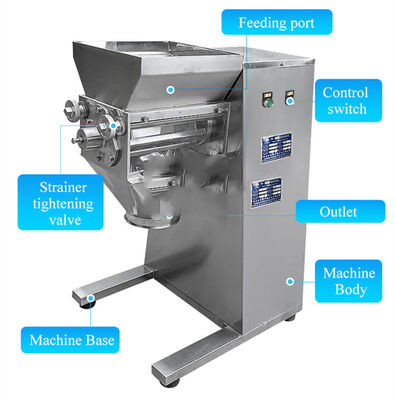

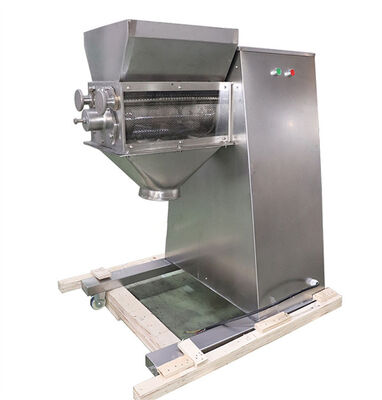

YK Pharmaceutical Pelleting Granules Making Machine Fish Feed Oscillating Granulator

Name: YK Pharmaceutical Pelleting Granules Making Machine Fish Feed Oscillating Granulator
Brand: SNYNXN
SKU: YK 160
Rating: 4.7 (158 reviews)

Product Details:

Place of Origin:	JIANGSU CHINA
Brand Name:	SNYNXN
Certification:	CE ISO GMP
Model Number:	YK 160

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Standard Export Packing in Wooden case
Delivery Time:	IN 60 DAYS
Payment Terms:	T/T, L/C
Supply Ability:	100 sets / year

Contact Now

Detailed Product Description

Type:	TY Series Granules Making Machine	Capacity:	20-300 Kg/h, Depend On Model.
Granules Diameter:	0.8-5 Mm	Keywords:	Granulator Machinery Fertilizer
Drum Speed:	Depend On Raw Materials, Adjustable.	Application:	Making Fertilizer Granules, Food Granules, Pesticide.
Core Components:	Motor, Gear, Bearing, Engine	Warranty:	2 Years For Core Components
Shoecase Location:	Turkey, Philippines, Pakistan, Thailand	After Sales Service:	Engineers Available To Service Machinery Overseas
High Light:	Pharmaceutical Oscillating Granulator , Fish Feed Oscillating Granulator , 300kg/h granules making machine

Description of YK Series Swing Pelletizer Machine

YK Pharmaceutical Pelleting Granules Making Machine Swing Type Fish Feed Oscillating Granulator For Herbal Granule

The oscillating granulator can make particles from a mixture of powders, or from lumpy dry matter into the desired particles. It is suitable for small batch production in pharmaceutical, chemical, food, scientific research units, laboratories, hospitals and small health care products factories It has a wide range of applications, uniform particles produced, no need for particle screening, thereby increasing production efficiency, reducing production costs and increasing production. Compared with powder, pellets are easy to take, store and transport. The machine is driven by mechanical transmission to swing the cylinder back and forth. The material is extruded into particles from the screen. As long as the screen mesh of different numbers is replaced, the coarse and fine particles are made. The drum does not need to be disassembled, the screen is easy to disassemble and is very light. The cleaning parts are only part of the granulating cavity, and the cleaning is very convenient. The particles made by the system contain less powder and particle size, convenient operation, simple control and long service life.

Working method:

The swing granulator is a mechanical drive. Under the action of friction, the drum rotates, and powdery materials are discharged from the screen hole and sent out of the machine under the action of positive and reverse rotation of the rotating drum. The particle size and density can be controlled to a certain extent by adjusting the tightness of the screen and the speed of the drum

Features:

1.This Oscillating granulating machine makes use of the rolling motion of rotating barrel, granulates the wet powder materials into granule by sieve, it also can be used to crush agglomerate materials into small granules directly.

2. In chemical medicine field, it can be used for granulating the mixed powder into granule, and compressed into tablet after being dried. It also can be used for granulating the coagulated material that is formed during storage or during chemical processing, In food industry, it can be used to deal with the candy and sugar mixture as well as barley milk products. In other industries, it can be used to granulate such as porcelain and plastic mixtures into forming granules.

3. It is not suitable for solid, fluid medium, paste or pulverizing. 4.Its mesh number of sieve should be prepared by users, according to the size of granule.

Main Technical Specification:

YK-Series Vibrating Granulator
Model	YK60	YK90	YK160
Capacity	20~30kg/h	50~100kg/h	200~300kg/h
Cycle Times	46 time/min	50 time/min	55 time/min
Feed Port	209*212mm	300*280mm	408*380mm
Motor	0.55kw	0.75kw	2.2kw
Dia. Of Barrel	60mm	90mm	160mm
Rang of Wave	>360°	>360°	>360°
Dimensions	460x550x570mm	460x750x840mm	950x560x1240mm
Weight	55kg	150kg	360kg

YK Pharmaceutical Pelleting Granules Making Machine Fish Feed Oscillating Granulator 0

YK Pharmaceutical Pelleting Granules Making Machine Fish Feed Oscillating Granulator 1

YK Pharmaceutical Pelleting Granules Making Machine Fish Feed Oscillating Granulator 2

YK Pharmaceutical Pelleting Granules Making Machine Fish Feed Oscillating Granulator 4

Jiangyin SNYNXN Granulating Drying Equipment Co., Ltd was established in 2007, combining R&D, production, foreign trade and professional service of pharmaceutical machinery as an original manufacturer. professionally on the manufacturing of all kinds of Drying Equipment, granulating machine, mixer, dryer, coal mill, etc. We have not only a professional design institute and a experienced production team, but also complete and scientific quality control system. Our products can fully be in conformity with the national and industrial standards.
