YK Series Lab Swing Oscillating Granulator Machine Wet Granulation Equipment

Name: YK Series Lab Swing Oscillating Granulator Machine Wet Granulation Equipment
Brand: SNYNXN
SKU: YK 160
Rating: 4.6 (196 reviews)

Product Details:

Place of Origin:	JIANGSU CHINA
Brand Name:	SNYNXN
Certification:	CE ISO GMP
Model Number:	YK 160

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Standard Export Packing in Wooden case
Delivery Time:	IN 60 DAYS
Payment Terms:	T/T, L/C
Supply Ability:	100 sets / year

Contact Now

Detailed Product Description

Type:	TY Series Oscillating Granulator	Capacity:	200-300 Kg/h
Granules Diameter:	0.8-5 Mm	Marketing Type:	Hot Selling Product 2022
Drum Speed:	55r/min	Application:	Food Processing, Pharmaceutical, Chemical Industry.
Core Components:	Motor, Gear, Bearing, Engine	Warranty:	2 Years For Core Components
Voltage:	Customized, 220V/380V, 380V, 110V/220V, 220V	After Sales Service:	Engineers Available To Service Machinery Overseas
High Light:	YK Series Oscillating Granulator Machine , Lab Swing Oscillating Granulator Machine , ISO wet granulation equipment

Description of YK Series Swing Pelletizer Machine

YK-160 Lab Swing Oscillating Granulator Or Wet Granulation Oscillating Granulator Machine

This machine is used for forming the required granules from moist power material, or for crushing dried block stock into granules in required size.

Its main features are: the sieve can be removed and remounted easily; its tension is also adjustable. The rotor also can be removed and cleaned conveniently. The driving mechanism is totally enclosed in the machine body and its lubrication system makes the machine work smoothly.

YK160 the speed of its rotor can be adjusted during operation, its surface is painted for universal usage.

YK160, a new type is designed in accordance with GMP standard; its surface is made of high quality stainless steel and looks nice. Especially the metal and stainless steel screen mesh improves the pellets quality.

1. Press wet mass through sieve to get required size of granules;

2. Crush big granules or agglomerates through sieve to get uniform-sized granules;

3. Capacity: 30-600 kg/h;

4. Different granule size can be achived by changing sieve.

Working principle

YK series oscillating granulator is mainly consisted of drive motor, feeding hopper, rotor, sieve and discharging chute. Wet mixtures of powders or big granules/agglomerates are fed into the granulating chamber via feeding hopper. The oscillating motion of rotor presses the material through the sieve to get required size of granules. The finished granules is discharged into the barrel via the discharging chute. YK series oscillating granulator has been extensively used in pharmaceutical, food and chemical industries for making granules with wet mixtures, or as a crusher to crush dried big bumps or granules into required size of granules.

Advantages:

1. Simple screen assembly and disassembly

The screen is equipped with 14-mesh nylon net as standard. It can also be equipped with stainless steel screen. Different screens can be installed to make particles of different sizes

2. Feeding port

Knurled screw, easy to adjust, easy to disassemble

3. Adjustable elastic

Can properly adjust the screen tension, practical and convenient

4. Body full stainless steel cover

The overall appearance is closed with high-quality 304 stainless steel plate, which is safe, hygienic and quiet, making the overall appearance neat and beautiful.

Main Technical Specification:

Model	YK-160
Production	200-300kg/h
Granulator diameter	0.8-5mm
Motor power	3kw
Drum speed	55r/min
Drum diameter	Ø160mm
Overall dimention	10008001300mm
Weight	380kg

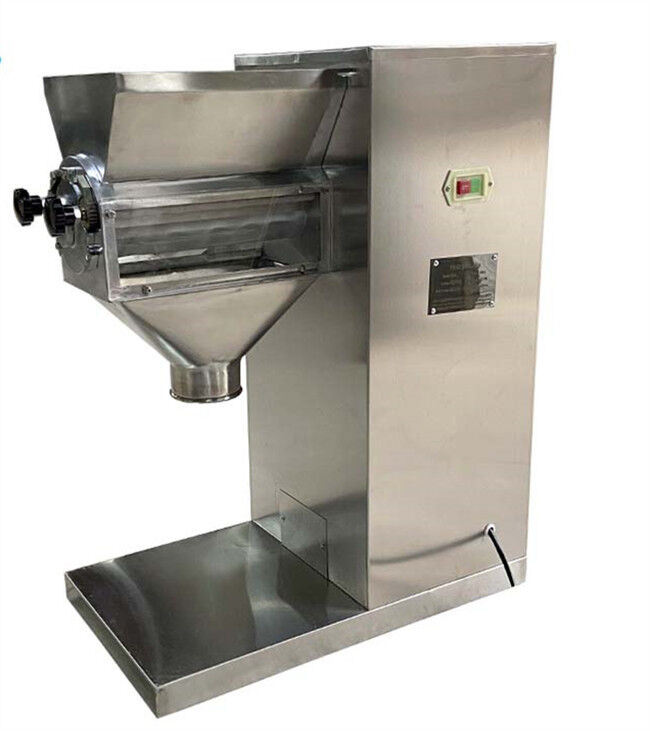

YK Series Lab Swing Oscillating Granulator Machine Wet Granulation Equipment 0

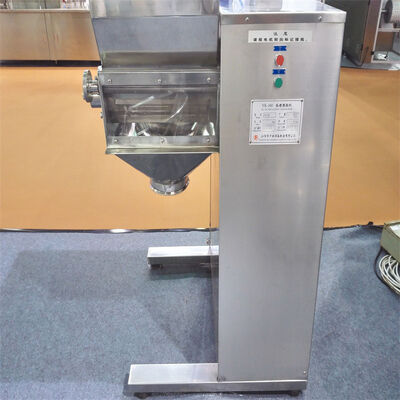

YK Series Lab Swing Oscillating Granulator Machine Wet Granulation Equipment 1

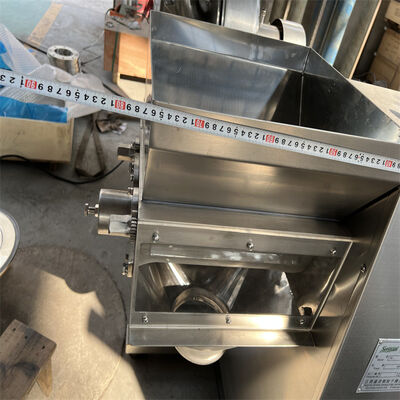

YK Series Lab Swing Oscillating Granulator Machine Wet Granulation Equipment 2

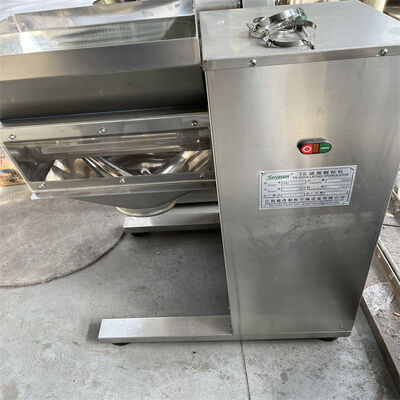

YK Series Lab Swing Oscillating Granulator Machine Wet Granulation Equipment 4

Jiangyin SNYNXN Granulating Drying Equipment Co., Ltd was established in 2007, combining R&D, production, foreign trade and professional service of pharmaceutical machinery as an original manufacturer.

1.You are a manufacturing company or trading company?

---We are original factory specializing in manufacturing pharmaceutical machinery more than 15 years.
2.What quote do you offer?

---FOB , CIF, CFR, EXW, and others.

3.How pay?

---T/T, L/C, Western Union, Paypal, etc.

4.How transport?

---By sea.

5.What is the quality of your products guarantee?

---We have passed ISO, also make CE according to your need, engineers available to service machinery overseas.

6.Do you have after-sales service?

---Certainly, you can contact us at any time.
7.If i want to place an order,what should i tell you
--You can tell me which material do you want to granule,and what's requirement of product capacity and voltage etc.
