Specializing in the production of pharmaceutical machinery and granulating drying equipment.
 |
| Place of Origin: | JIANGSU CHINA |
| Brand Name: | SNYNXN |
| Certification: | CE ISO GMP |
| Model Number: | YK 100 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard Export Packing in Wooden case |
| Delivery Time: | IN 60 DAYS |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100 sets / year |
| Type: | Positive And Negative Rotation Granulator Machine | Granulator Dia: | 0.8-5 Mm |
|---|---|---|---|
| Usage: | Powder Granule Making | Capacity: | 200-500 Kg/h |
| Speed: | Adjustable | Key Selling Points: | Easy To Operate, Long Term Use |
| Roller Diameter: | 60-160 Mm | Productive Capacity: | 20-1200 KG/H |
| Material: | SUS304, SUS316L, Other, Stainless Steel304/316L | After-sales Service Provided: | Free Spare Parts, Video Technical Support, Online Support |
| High Light: | Food Powder Oscillating Granulator Machine,Lab Chemical Oscillating Granulator Machine,Adjustable agricultural oscillating mill |
||

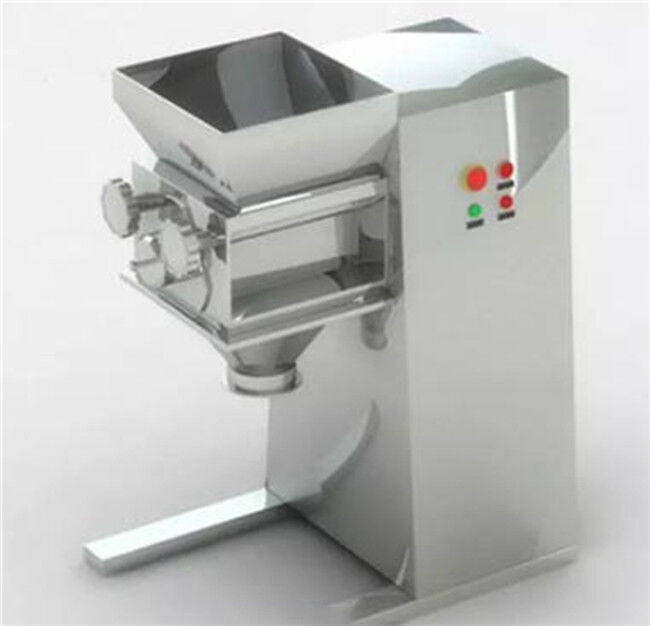

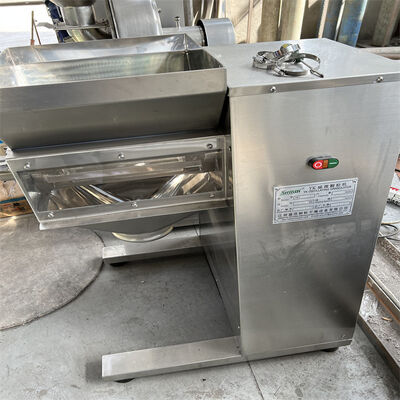

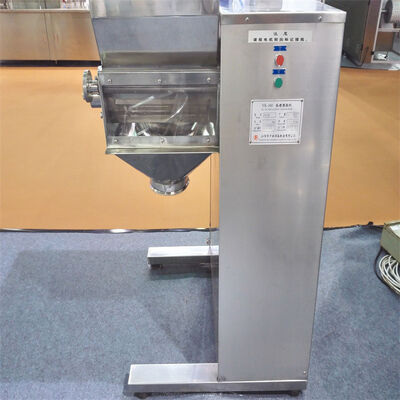

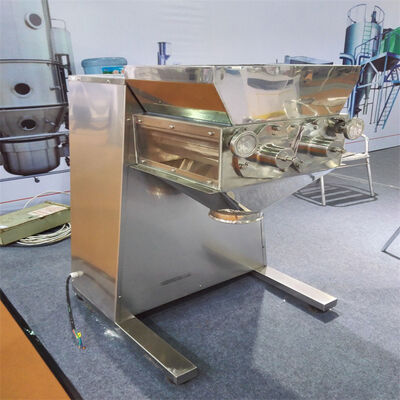

Food Powder Lab Chemical Oscillating Granulator YK-60 Agricultural Powder Granulating Machine
The Swing Oscillating Granulator is suitable for pharmaceutical, foodstuff, chemical, solid drink and so on industries. It can make the stirred raw materials become granules with the needed size or crush the blocked raw materials into small granules.
Swing granulator is mainly used for making granules with different specifications of the pharmaceutical industry, chemical industry, foodstuff industry, etc. After dried, the granule can be pressed into all kinds of shaped products. The machine can also be used for crushing dried raw materials that are covered.
The place where should be contacted with raw material is made of stainless fully. Its appearance is beautiful and taste and its clean is very convenient and its operation is simple and its energy consumption is low.
The drum is swung repeatedly through mechanical driving, which makes the material extruded from the sieve, further granulated or crushed, or speedily palletized.
| Model-YK | 60 | 100 | 160 | 200 | 300 |
| Productivity | 20-50kg | 50-100kg | 100-150kg | 150-200kg | 300-500kg |
| Motor Power | 0.37kw | 1.1kw | 3kw | 5.5kw | 7.5kw |
| Drum Speed | 65rpm | 65rpm | 10-44rpm | 10-44rpm | 10-44rpm |
| Swing Angle | 360° | 360° | 360° | 360° | 360° |
| Drum Diameter | 60cm | 100cm | 160cm | 200cm | 300cm |
| Weight | 50kg | 100kg | 150kg | 200kg | 500kg |
| Overall Dimension | 500*680*500mm | 600*750*1150mm | 700*850*1180mm | 800*900*1380mm | 1300*1100*1600mm |
The principle of an oscillating granulator is to mechanically pass compacted material through a wire mesh screen or plate using an oscillating rotor. The rotor speed and rotation time are variable in the clockwise or counterclockwise directions. Particle size is controlled through mill-screen size, rotor speed, and the rotor's rotation angle.
This equipment is widely used in the pharmaceutical, chemical, and food industries, it is a popular granulating machine used for forming the granule sizes from the moist powder material, or for crushing dried block stock into granules in the required size.
