Electricity Heat Automatic Centrifugal Spray Dryer Milk Powder Dryer 1000kg/H

Name: Electricity Heat Automatic Centrifugal Spray Dryer Milk Powder Dryer 1000kg/H
Brand: SNYNXN
SKU: GLP-25
Rating: 4.6 (107 reviews)

Product Details:

Place of Origin:	JIANGSU CHINA
Brand Name:	SNYNXN
Certification:	CE ISO GMP
Model Number:	GLP-25

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotaible
Packaging Details:	Film Wrapping, Wooden Case.
Delivery Time:	within 60 days
Payment Terms:	T/T, L/C
Supply Ability:	100 set/year

Contact Now

Detailed Product Description

Equipment:	Spray Drying Equipment	Applications:	Tea, Milk, Egg, Flavors And Other Powders
Evaporation Capacity(kg/h):	5-1000	Water Evaporation:	5-2000kg/H
Color:	Customized	Atomizing Disk Diameter:	50 - 340 Mm
Heating Source:	Electricity, Gas, Steam, Etc.	Advantages:	High Efficiency Low Cost
Core Components:	Bearing, Gearbox, PLC	After Sales Service:	Online Support, Engineers Available To Service Machinery Overseas
High Light:	Electricity Heat Centrifugal Spray Dryer , Automatic Centrifugal Spray Dryer , milk powder dryer 1000kg/h

Description of Spray Dryer

Automatic Milk Powder Spray Dryer Good Factory Price Spray Dryer

After fresh air is filtered and heated, it enters into the air distributor which on the top of the drier. The hot air in spiral form equably enters into the drying room.When liquid raw material are passed through the high-speed centrifugal sprayer on the top of the tower, it will be rotated and sprayed into the extreme slim mist liquid beads.

Raw material can be dried to the final products instantly while it contact with the heatedair.Finished products are discharged continuously from bottom of the drying tower and cyclones segregator. Wasted air is discharged from blower.

Technical Parameters

Model	Size	Tower body	Centrifugal spray Atomizer	Materail	Heating source
GLP-5	1600×1100×1750mm	Φ1000mm	Φ50 mm	stainless steel	Electric, Steam, Gas, Coal.
GLP-25	4000×2700×4500mm	Φ1750mm	Φ80 mm
GLP-50	4500×2800×5500mm	Φ2300mm	Φ120mm
GLP-100	5200×3500×6700mm	Φ2700mm	Φ150mm
GLP-200	7500×6000×8000	Φ3200mm	Φ150mm
GLP-1000	Customized

Application of spray dryer:

Chemical industry: Sodium fluoride (pqtassium), alkaline dyestuff and pigment, dyestuff intermediate, compound fertilizer, formic silicic acid, catalyst, sulphuric acid agent, amino acid, white carbon and so on.

Plastics and resin: AB, ABS emulsion, uric acid resin, phenolic aldehyde resin, urea-formaldehyde resin, formaldehyde resin, polythene, poly chloroprene, etc.

Food industry: Fatty milk powder, protein, cocoa milk powder, substitute milk powder, egg white (yolk), food and plant, oats, chicken juice, coffee, instant sissoluble tea, seasoning meat, protein, soybean, peanut protein, hydrolysate and so forth.

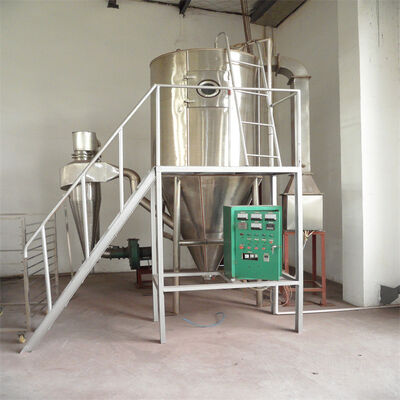

Electricity Heat Automatic Centrifugal Spray Dryer Milk Powder Dryer 1000kg/H 0

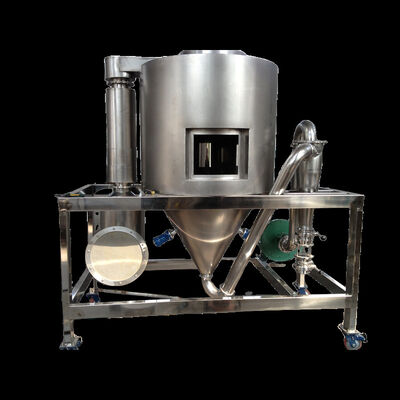

Electricity Heat Automatic Centrifugal Spray Dryer Milk Powder Dryer 1000kg/H 1

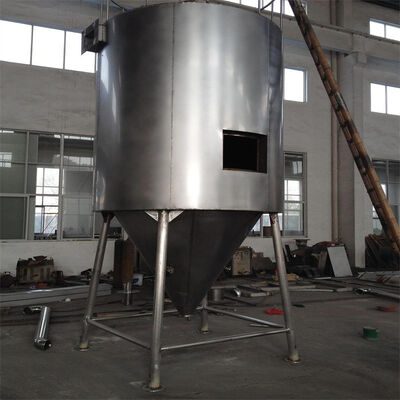

Electricity Heat Automatic Centrifugal Spray Dryer Milk Powder Dryer 1000kg/H 2

FAQ

1.Can I use this spray drying machine to extract some raw materials?
Yes, in order to help you better, we suggest you provide the name of the raw material you want to process.
2.Can I use my own raw materials for extraction test?
Yes, of course. We can do extraction tests and send videos and test reports for your reference.
3.Do you have OEM service? Do you provide parts?
Yes, we will, as long as you provide us with your drawings and detailed requirements.
4.How can we visit your factory?
You can fly to Shanghai or Wuxi airport, We will arrange a driver to pick you up.
5.How to transport equipmen?
We usually choose sea transportation. Laboratory models can be shipped by air according to customer requirements.
6.What is the voltage of the equipment?
The equipment voltage is 380V, if the user requires 220V, the specific can be customized according to the voltage standard of the country where your equipment is used.
7.what is your after-sales service?
We provide the English manual of the equipment manual. If you need, we will send an engineer to install and train workers.
