SS304 316 XL Series Animal Feed Granulation Equipment Process Rotary Granulator

Product Details:

Place of Origin:	JIANGSU CHINA
Brand Name:	SNYNXN
Certification:	CE ISO GMP
Model Number:	XL 125

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Standard Export Packing in Wooden case
Delivery Time:	IN 60 DAYS
Payment Terms:	T/T, L/C
Supply Ability:	100 sets / year

Contact Now

Detailed Product Description

Machine Type:	XL Rotating Granulating Machine	Capacity:	60-400kg/h
Sieve Diameter:	0.8 -2.5 Mm	Usage:	Roller Press Dry Powder
Application:	Food, Medicine	Machinery Test Report:	Provided
Raw Material:	Stainless Steel 304 S.S316L	Key Selling Points:	Easy To Operate For Long Term Use
Function:	High Speed Mixing Granulator	After Sales Service:	Online Support, Engineers Available To Service Machinery Overseas
Highlight:	SS304 animal feed granulation equipments , SS304 XL series animal feed granulation equipment , SS316L drum granulator SNYNXN

Product Description of XL Series Rotary Granulator

Stainless Steel XL series Animal Feed Granulation Process Rotary Granulator

This machine adopts one pair of rotating grinding blade to grind form damp material into column-shape granule by stainless steel sieve cylinder which is provided for pelletize in next process. The machine can obtain different size granule by changing the stainless steel sieve

XL series rotary granulator is applied in the industry of pharmaceutical, chemical and foodstuff. It grinds wet powder into granules and crushes powder block to grind.

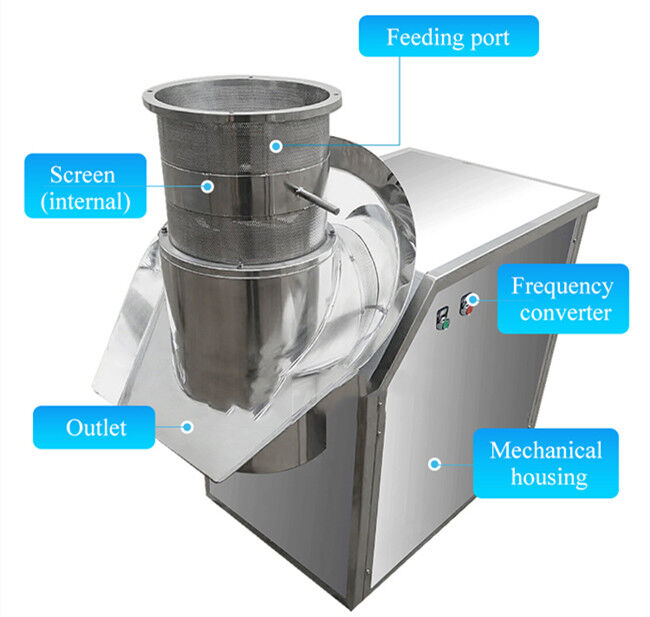

When the pressure knife rotates, the powder material is pressurized and sent to the granulation knife. When the granulation knife rotates, the material is extruded out of the mesh by centrifugal force and curve thrust force to complete the granulation task. The output of 300-a two-sided discharging machine is 4 times higher than that of the swing granulator.

The output per hour can reach 200-500kg, and the yield can reach more than 95%. It has the advantages of stable operation, low noise, safety and reliability, basically eliminating accidents, easy operation, convenient maintenance and long service life. In order to improve the output and quality of products, save energy, reduce costs and create higher economic benefits, you are welcome to use xkj-300 new generation rotary granulator as soon as possible.

Technical parameters

Item	XL-125	XL-300	XL-350	XL-400	XL-500
Screen Diameter (mm)	125	270	350	400	500
Milling Rotation Speed (rpm)	55	55	55	55	55
Output (kg)	10-20	50-100	100-300	300-500	500-1000
Motor Power (kw)	1.5	5.5	11	15	18.5
Rotation Speed (rpm)	960	960	960	960	960
Weight (kg)	80	250	400	600	800
Dimension (m)	0.50.70.8	1.20.81.1	1.511.4	1.81.21.6	1.91.51.6

All dates are used foe reference only. According to the condition of material, our factory has the right to change but not notice, pardon!

SS304 316 XL Series Animal Feed Granulation Equipment Process Rotary Granulator 0

SS304 316 XL Series Animal Feed Granulation Equipment Process Rotary Granulator 2

SS304 316 XL Series Animal Feed Granulation Equipment Process Rotary Granulator 3

Packing: The product will be packed in a wooden case, and also can be packed in other ways as your request. Both neutral and customized packing is available.

Shipping: We can ship the goods to you by international expresses,such as DHL, UPS, TNT, and so on. And you can choose the appropriate way based on your timeline and budget. Besides, you can choose to use your own shipping agent.

Express: Door to door, very convenient, don't need clearance or pick-up.

By air: Airport to the airport, you need to do the customs clearance and pick up the goods at your local airport, which you can have a local shipping agent do for you.

By sea: Port to port and you need to do the customs clearance and pick up the goods at your local port, which you can have a local shipping agent do for you.

FAQ

Q: How does the machine fit our voltage?
A: For each piece of equipment, our salesman will confirm the voltage with the customer.

Q: How can I buy the machine?
A: Firstly, our salesman will discuss with you all the details of the machine, the lead time and the payment condition.
Secondly, after receiving the 30% down payment, the production will begin.
Finally, we’ll show you the photos and the test video of the finished machine. You pay the balance and the equipment will be shipped as scheduled, by our forwarder or by your familiar forwarder.

Q: How long is your machine’s warranty?
A:1 year after the delivery. During the one year, we can offer the broken parts free of charge, if the problem isn’t caused by wrong operation.

Q. What can you provide for after-sale service?
A: We can send the engineer to the customer’s factory for the installation and operation training if the customer requires it. We can also supply the installation and operation instructions by video.

Q: If we have a very special request on the production line, could you help me to do the design?
A: Customized design is provided.

Q: How to contact you?
A: Please leave messages and click "send" to send us inquiries.
