Column Shape Rotating Granulator Food Organic Compound Pharmaceutical Dry Powder Extruding

Product Details:

Place of Origin:	JIANGSU CHINA
Brand Name:	SNYNXN
Certification:	CE ISO GMP
Model Number:	XL 300

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Standard Export Packing in Wooden case
Delivery Time:	IN 60 DAYS
Payment Terms:	T/T, L/C
Supply Ability:	100 sets / year

Contact Now

Detailed Product Description

Machine Type:	XL Dry Powder Extruding Rotary Granulator	Capacity:	10-1000 Kg/h
Sieve Diameter:	0.8 -2.5 Mm	Usage:	Granulator
Motor Power:	5.5 KW	Video Outgoing-inspection:	Provided
Key Selling Points:	Easy To Operate For Long Term Use	After Sales Service:	Online Support, Engineers Available To Service Machinery Overseas
Highlight:	10kg/h Rotating Granulator , Column Shape Rotating Granulator , 1000kg/h granules making machine

Product Description of XL Series Dry Powder Extruding Rotary Granulator

The column shape granule Rotary Granulator is the ideal equipment used in pharmaceutical industry, foodstuff industry, chemical industry and so on. It can make the stirred raw material granulate the needed granule, especially for the material with high viscosity. It is suitable for the chick monosodium glutamate factory.

Rotary granulator is used for wet granulation, which mainly consists of drive motor, feeding hopper, extrusion blades, screen and discharging chute. Wet mass is gravity fed into the granulator and wiped through the perforated screen by extrusion blades to get require-sized cylindrical extrudates. Finished granules are discharged into the barrel via the chute. The gap between blade and screen is adjustable.
It is most often used in pharmaceutical, food and chemical industries for making granules with wet mass before spheronization.

Technical parameters

Item	XL-125	XL-300	XL-350	XL-400	XL-500
Screen Diameter (mm)	125	270	350	400	500
Milling Rotation Speed (rpm)	55	55	55	55	55
Output (kg)	10-20	50-100	100-300	300-500	500-1000
Motor Power (kw)	1.5	5.5	11	15	18.5
Rotation Speed (rpm)	960	960	960	960	960
Weight (kg)	80	250	400	600	800
Dimension (m)	0.50.70.8	1.20.81.1	1.511.4	1.81.21.6	1.91.51.6

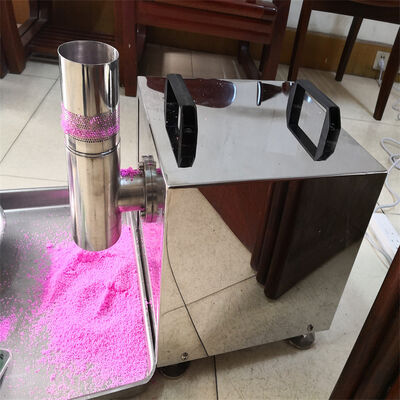

Column Shape Rotating Granulator Food Organic Compound Pharmaceutical Dry Powder Extruding 0

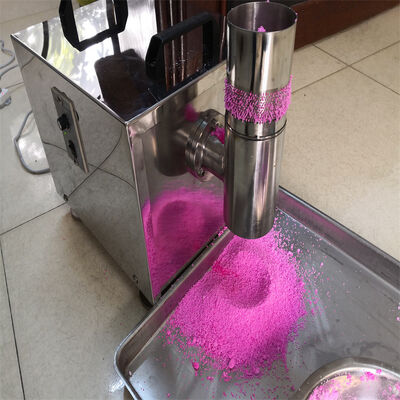

Column Shape Rotating Granulator Food Organic Compound Pharmaceutical Dry Powder Extruding 1

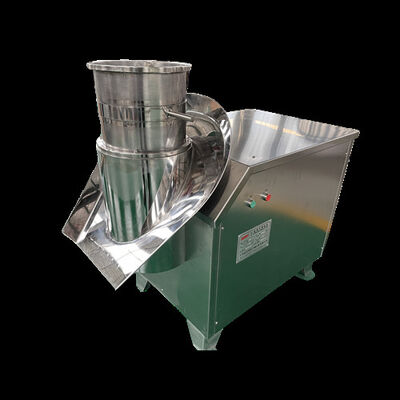

Column Shape Rotating Granulator Food Organic Compound Pharmaceutical Dry Powder Extruding 2

Pre-sale service:
--24 Hours online service.
--Help choose right model with a series of service and advise.
--Provide you the best quote offer.
--Provide discount for bulk orders.
--Meet your customized requirement.
--Choose payment term convenient for you.
--Promptly production and delivery information.
--Provide invoice.

After-sale service:
--Product installation support.
--Technical Engineer are available.
--Remote control technical consultation.
--1 year warranty service and lifelong maintenance.

FAQ

Q: How does the machine fit our voltage?
A: For each piece of equipment, our salesman will confirm the voltage with the customer.

Q: How can I buy the machine?
A: Firstly, our salesman will discuss with you all the details of the machine, the lead time and the payment condition.
Secondly, after receiving the 30% down payment, the production will begin.
Finally, we’ll show you the photos and the test video of the finished machine. You pay the balance and the equipment will be shipped as scheduled, by our forwarder or by your familiar forwarder.

Q: How long is your machine’s warranty?
A:1 year after the delivery. During the one year, we can offer the broken parts free of charge, if the problem isn’t caused by wrong operation.

Q. What can you provide for after-sale service?
A: We can send the engineer to the customer’s factory for the installation and operation training if the customer requires it. We can also supply the installation and operation instructions by video.

Q: If we have a very special request on the production line, could you help me to do the design?
A: Customized design is provided.

Q: How to contact you?
A: Please leave messages and click "send" to send us inquiries.
