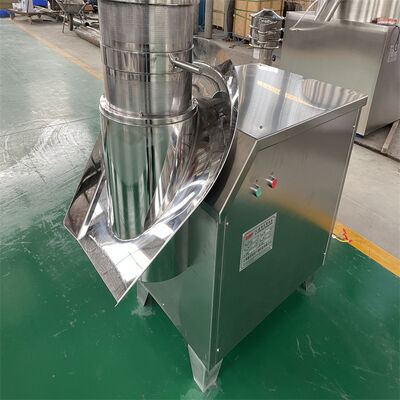

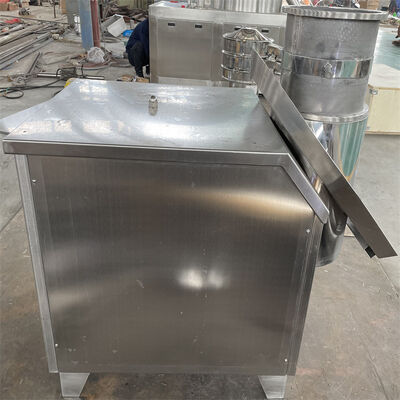

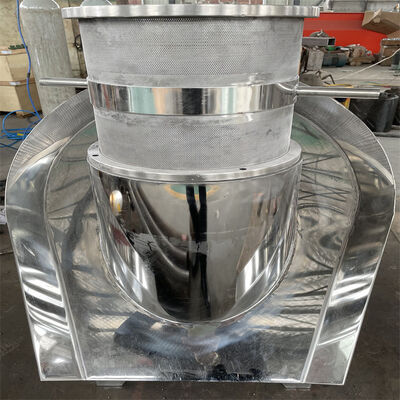

Wet Granulation Extruder Granulating Machine Chinese Medicine Rotary Pharmaceutical Granulating Machine

Product Details:

Place of Origin:	JIANGSU CHINA
Brand Name:	SNYNXN
Certification:	CE ISO GMP
Model Number:	XL 250

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Standard Export Packing in Wooden case
Delivery Time:	IN 35 DAYS
Payment Terms:	T/T, L/C
Supply Ability:	100 sets / year

Contact Now

Detailed Product Description

Type:	Food And Medicine Rotary Extruding Granulator	Shape Of Granule:	Cylinder Shape, Strip Shape
Size Of Granule:	0.8-4mm	Capacity:	50-500kg/h
Working Type:	Continuous	Special Design:	Water Jacket For Cooling
Control System:	Button Type	Use Industry:	Pharmaceutical ,Chemical ,Food Industry Etc.
Core Components:	Bearing, Gearbox, Motor	Color And Material:	Customized
Highlight:	50kg/h extruder granulating machine , Button extruder granulating machine , GMP pharmaceutical granulating machine

Description of xtruding granulator

Food Extruding Granulator Wet Granulation Machine Pharmaceutical Chinese Medicine Rotary Granulator

This machine is suitable for making mixed damp material to strip shape granules. It is widely used in pharmaceutical, food, dissolved medicines, chemical and solid drinking industries. The size of granule can be regulated by changing the sieve.

Work principle of extruding granulator

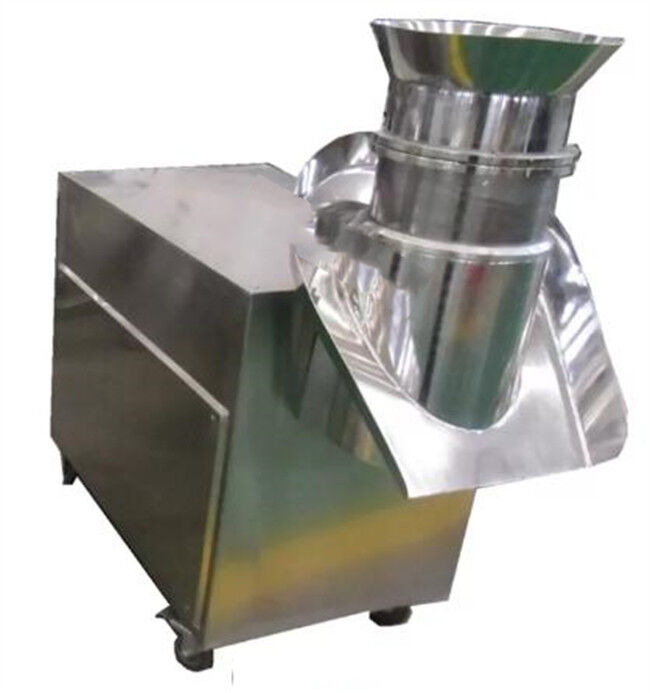

XL rotary extruding granulator is used for wet granulation, which mainly consists of drive motor, feeding hopper, extrusion blades, screen and discharging chute. Wet mass is gravity fed into the granulator and wiped through the perforated screen by extrusion blades to get require-sized cylindrical extrudates. Finished granules are discharged into the barrel via the chute. The gap between blade and screen is adjustable.
XL extruding granulator is most often used in pharmaceutical, food and chemical industries for making granules with wet mass before spheronization.

Features of extruding granulator

1. Press wet mass through perforated screen to get require-sized cylindrical extrudates
2. Wet granulation for food, chemical and pharmaceutical products
3. Capacity: 20-400 kg/h
4. GMP design
5. Different granule size can be achieved by changing perforated screen
6. Robust,simple and compact design requires minimum maintenance;
7. Made by SUS304 or SUS316 and mirror polished to meet GMP pharmaceutic sanitary standards.
8. Uniform granules, higher output, less fines and low noise.
9. Special drive shaft sealing design can 100% make sure contamination free of product.

Product Parameters

Model	XL-120	XL-250	XL-300
Diameter of granules (mm)	0.8~2.5	0.8~2.5	0.8~2.5
Capacity (kg/h)	3~50	60~200	100~400
Power (kw)	1.5	4	5.5
Overall size (mm)	650×400×660	700×500×1230	880×630×1230

Wet Granulation Extruder Granulating Machine Chinese Medicine Rotary Pharmaceutical Granulating Machine 0

Wet Granulation Extruder Granulating Machine Chinese Medicine Rotary Pharmaceutical Granulating Machine 1

Wet Granulation Extruder Granulating Machine Chinese Medicine Rotary Pharmaceutical Granulating Machine 4
