YK Root Ginger Tea Swing Oscillating Granulator Machine Granule Making Machine

Name: YK Root Ginger Tea Swing Oscillating Granulator Machine Granule Making Machine
Brand: SNYNXN
SKU: YK 160
Rating: 4.9 (161 reviews)

Product Details:

Place of Origin:	JIANGSU CHINA
Brand Name:	SNYNXN
Certification:	CE ISO GMP
Model Number:	YK 160

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Standard Export Packing in Wooden case
Delivery Time:	IN 60 DAYS
Payment Terms:	T/T, L/C
Supply Ability:	100 sets / year

Contact Now

Detailed Product Description

Type:	Industrial Food Granulator Machine	Capacity:	20-500 Kg/h, Depend On Model.
Usage:	Pendular Granulator	Granulator Dia:	0.8-5 Mm
Roller Diameter:	60-160 Mm	Roller Revolution:	40-50 Rpm, Adjustable
Key Selling Points:	Low Cost, Easy To Operate, Long Term Use	After-sales Service Provided:	Free Spare Parts, Video Technical Support, Online Support
High Light:	40rpm Oscillating Granulator Machine , Tea Swing Oscillating Granulator Machine , 40rpm granule making machine

Description of YK Type Swing Granulation Machine

YK Root Ginger Tea Swing Granulation Machine/Granule Making Machine/Granulator Machine

The machine is suitable for pharmaceutical, foodstuff, chemical, solid drink and so on industries. It can make the stirred raw materials become granule with needed size or crush the blocked raw materials into small granule.
The machine is mainly used for making granule with different specifications of pharmaceutical industry , chemical industry ,foodstuff industry ,etc. After dried, the granule can be pressed into all kinds of shaped products. The machine can also used for crushing dried raw materials that are cohered.
The place where contact with raw material is made of stainless steel. It's appearance is beautiful and clean. It's very convenient and its operation is simple and its energy consumption is low.

The drum is swung repeatedly through mechanical driving, which makes the material extruded from sieve,further granulated or crushed or speedily palletized.

Technical Parameters

Model	YK-60	YK-90
Production capacity(kg/h)	20~30	50-100
Power of motor(kw)	(Y06324 ) 0.25	(Y07124 ) 0.55
Revolution of roller(r/min)	40	50
Swing angle(degree)	>360	>360
Diameter of roller(mm)	Φ60	Φ90
Overall dimensions(L x W x H)(mm)	460x550x570	1000x800x1300
Weight(kg)	70	150

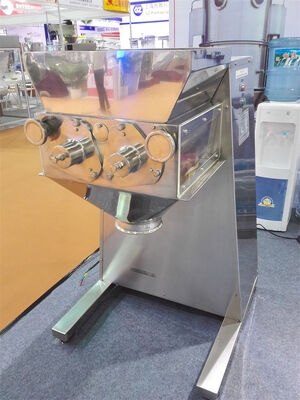

YK Root Ginger Tea Swing Oscillating Granulator Machine Granule Making Machine 1

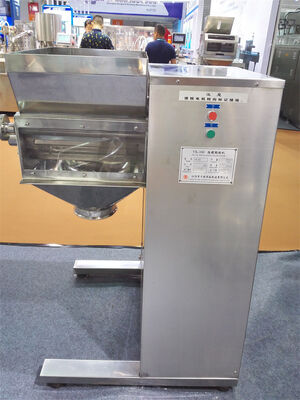

YK Root Ginger Tea Swing Oscillating Granulator Machine Granule Making Machine 2

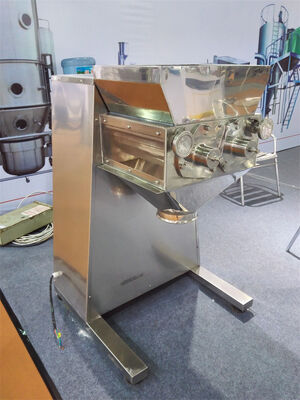

YK Root Ginger Tea Swing Oscillating Granulator Machine Granule Making Machine 3

Our Services
1.One year guarantee for whole machine
2.24 hours technical support
3.Our engineers can provide service overseas. The service is free, but the charge of round air-tickets, food and hotel is to the customer’s account.
4.After a year,we can instruct you how to maintain the machine, and spare parts are provided with the best price.
5. we also can provide training service which help opeators handle the machine well.

FAQ
1. What about your machine quality?

Our factory has more than 15 years experience in mechanical processing; all our machines already get ISO9001, SGS certificate, CE certificate; already exported into many countries and areas; already got customer’s good reputation.

2. What about your bmachine price?

Anytime we will make quality as factory life, no matter price is good or not for us. Quality is first, on the top quality basis, Sure you will get reasonable and satisfied price!

3. How can you ensure the machine’s quality after we put the order?

Before the delivery, we will send you machine’s pictures and videos, or you can come to us to have the quality checking by yourself, or by the third party inspection organization contacted by your side.
