YK200 Pharmaceutical Oscillating Pellet Wet Powder Fertilizer Swing Granulator

Product Details:

Place of Origin:	JIANGSU CHINA
Brand Name:	SNYNXN
Certification:	CE ISO GMP
Model Number:	YK 200

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Standard Export Packing in Wooden case
Delivery Time:	IN 30 DAYS
Payment Terms:	T/T, L/C
Supply Ability:	100 sets / year

Contact Now

Detailed Product Description

Machine Type:	Lab Oscillating Rotary Granulator Swing Granulation Machine	Productive Capacity:	20-1200 KG/H
Granulator Dia:	0.8-5 Mm	Function:	Positive And Negative Rotation Granulator Machine
Drum Speed:	10-44 Rpm, Adjustable.	Key Selling Points:	Easy To Operate, Long Term Use
Swing Angle:	360°	Showroom Location:	Canada, United States, India, Mexico
Material:	SS304 Or SS316 Is Optional	After-sales Service Provided:	Free Spare Parts, Video Technical Support, Online Support
Highlight:	20KG/H pharmaceutical swing granulator , ISO pharmaceutical swing granulator , 1200KG/H pharmaceutical granulator

Description of YK Type Pharmaceutical Swing Granulator

YK-200 Pharmaceutical Oscillating Pellet Wet Powder Fertilizer Swing Granulator

The Swing Oscillating Granulator is suitable for pharmaceutical, foodstuff, chemical, solid drink and so on industries. It can make the stirred raw materials become granules with the needed size or crush the blocked raw materials into small granules.
Swing granulator is mainly used for making granules with different specifications of the pharmaceutical industry, chemical
industry, foodstuff industry, etc. After dried, the granule can be pressed into all kinds of shaped products. The machine can also be used for crushing dried raw materials that are covered.
The place where should be contacted with raw material is made of stainless fully. Its appearance is beautiful and taste and its clean is very convenient and its operation is simple and its energy consumption is low.
The drum is swung repeatedly through mechanical driving, which makes the material extruded from the sieve, further granulated or crushed, or speedily palletized.

Technical Parameters

Model-YK	60	100	160	200	300
Productivity	20-50kg	50-100kg	100-150kg	150-200kg	300-500kg
Motor Power	0.37kw	1.1kw	3kw	5.5kw	7.5kw
Drum Speed	65rpm	65rpm	10-44rpm	10-44rpm	10-44rpm
Swing Angle	360°	360°	360°	360°	360°
Drum Diameter	60cm	100cm	160cm	200cm	300cm
Weight	50kg	100kg	150kg	200kg	500kg
Overall Dimension	500680500mm	6007501150mm	7008501180mm	8009001380mm	130011001600mm

Working Principle

The principle of an oscillating granulator is to mechanically pass compacted material through a wire mesh screen or plate using an oscillating rotor. The rotor speed and rotation time are variable in the clockwise or counterclockwise directions. Particle size is controlled through mill-screen size, rotor speed, and the rotor's rotation angle.

This equipment is widely used in the pharmaceutical, chemical, and food industries, it is a popular granulating machine used for forming the granule sizes from the moist powder material, or for crushing dried block stock into granules in the required size.

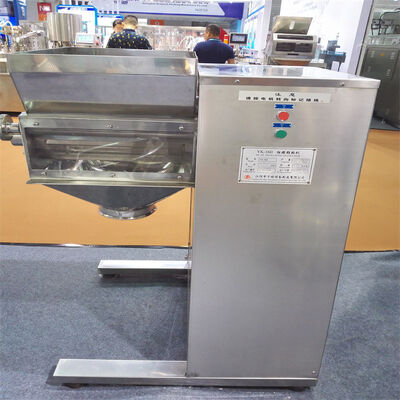

YK200 Pharmaceutical Oscillating Pellet Wet Powder Fertilizer Swing Granulator 1

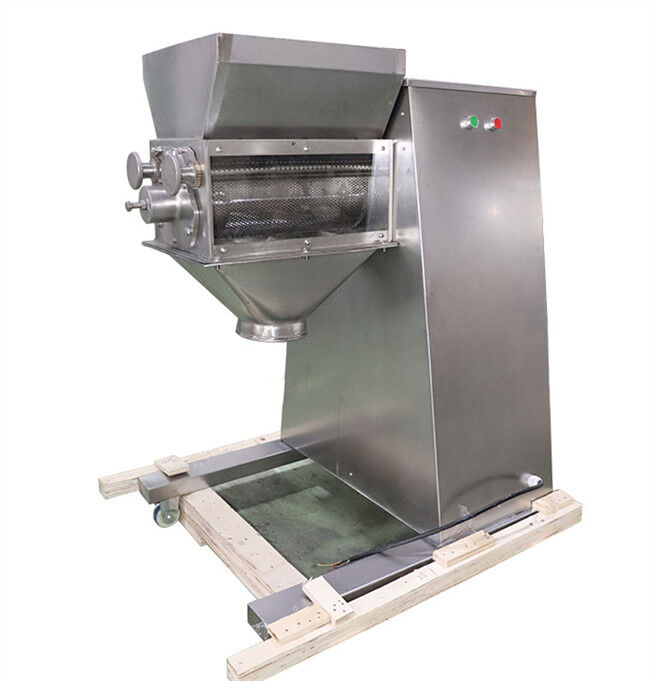

YK200 Pharmaceutical Oscillating Pellet Wet Powder Fertilizer Swing Granulator 2

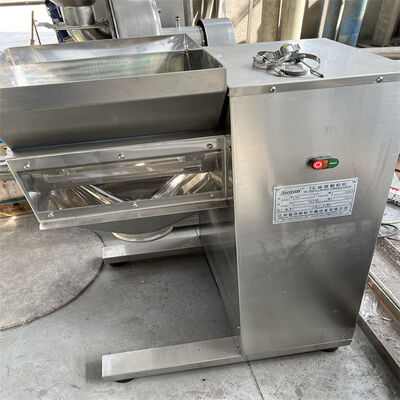

YK200 Pharmaceutical Oscillating Pellet Wet Powder Fertilizer Swing Granulator 3

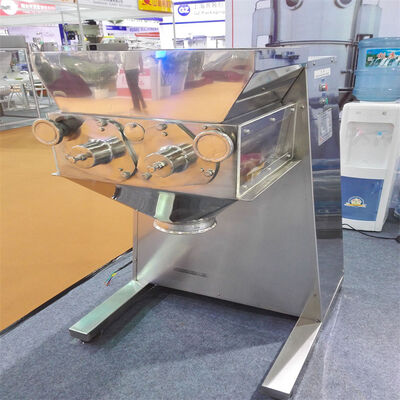

YK200 Pharmaceutical Oscillating Pellet Wet Powder Fertilizer Swing Granulator 4
