5mm Organic Fertilizer Granulation Machine Aliment Betail Oscillating Rotary

Product Details:

Place of Origin:	JIANGSU CHINA
Brand Name:	SNYNXN
Certification:	CE ISO GMP
Model Number:	YK 160

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Standard Export Packing in Wooden case
Delivery Time:	IN 30 DAYS
Payment Terms:	T/T, L/C
Supply Ability:	100 sets / year

Contact Now

Detailed Product Description

Type:	Oscillating Rotary Granulator	Capacity:	20-500 Kg/h, Depend On Model.
Usage:	Pelletize, Food And Other Industries, Making Fertilizer Granules	Granulator Dia:	0.8-5 Mm
Product Name:	YK-160 Hot Sale Oscillating Granulator/Granulating Machine	Raw Material:	Animal Chicken Manure, Chemical And Pharmaceutical Power
Application:	Pharmaceutical, Chemical, Food, Compound Fertilizer, Wet Powder	Core Components:	Motor, Gear, Bearing, Engine
Warranty:	2 Year For YK Granulator	Color:	Gray, Or Customer's Request
Highlight:	Organic Fertilizer Granulation Machine , 5mm Organic Fertilizer Granulation Machine , Oscillating Rotary Organic Fertilizer Granulation Machine

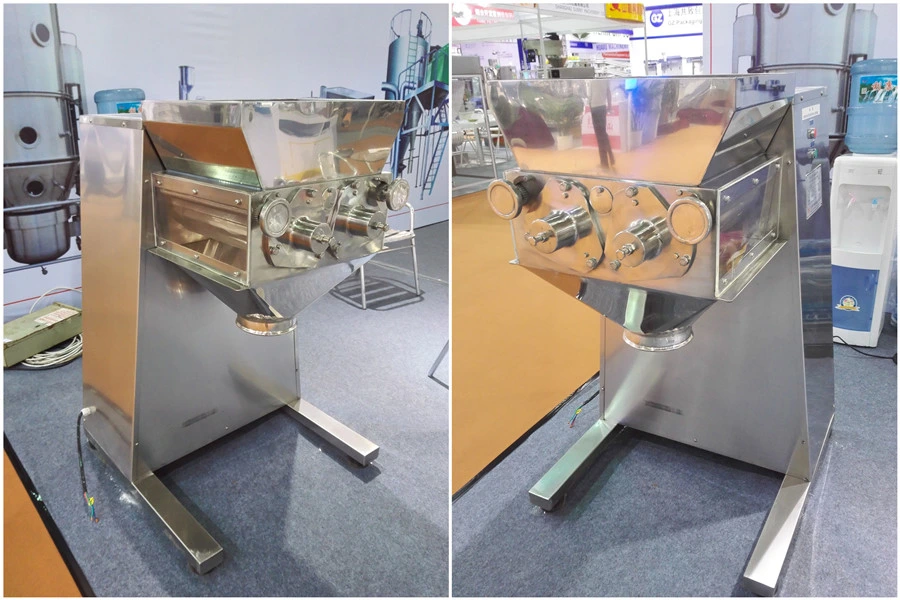

Description of YK Type Oscillating Granulator Machine

Powerful Brown Sugar Cat Litter YK100 Swing Granules Wet Powder Oscillating Granulator

This machine is suitable for high viscosity material, such as chicken powder. By positive and reverse rotation of rolls, the wet powder mixture forced through the screen mesh to be granulates. It is widely used in the pharmaceutical, chemical and food industry, it is a popular granulating machine used for forming the granule sizes from moist powder material, or for crushing dried block stock into granules in required size.

The principle of an oscillating granulator is to mechanically pass compacted material through a wire mesh screen or plate using an oscillating rotor. The rotor speed and rotation time are variable in the clockwise or counterclockwise directions. Particle size is controlled through mill-screen size, rotor speed, and the rotor's rotation angle.

5mm Organic Fertilizer Granulation Machine Aliment Betail Oscillating Rotary 0

Technical Parameters:

model	YK-60	YK-90
capacity(kg/h)	20-25	40-50
speed of hob(r/min)	±46	±46
Diamter of hob(mm)	60	90
Turn angle of hob(°)	360	360
motor(w)	370	550
Overall size(L×W×H)	530×400×550	540×450×560
weight(kg)	70	80

Applications:

This machine is mainly suitable for pharmaceutical industry, chemical industry and foodstuff industry to make granule with different specifications. After it is dried through backing, then press it to form all kinds of shaped products. It can also be used for dry block raw material that is crushed and coagulated. All parts in this machine are made of stainless steel. Its appearance is beauty. Its cleaning is very convenient. Its operation is very simple. Its energy consumption is very low.

This machine is used to press tablets.
By this oscillating-type granulator, wet powder can be granulated into required particles, or dry material is crushed into the required particles.

By exchanging sieves(their holes' diameters are different), tablets with different sizes can be produced.
Size of granular should not be too big, or the unit weight of tablet may be influenced.
The Granulating effect examples: Dissolved radix isatidis granules, chicken essence, etc.

5mm Organic Fertilizer Granulation Machine Aliment Betail Oscillating Rotary 3

5mm Organic Fertilizer Granulation Machine Aliment Betail Oscillating Rotary 4

Jiangyin SNYNXN Granulating Drying Equipment Co., Ltd

was established in 2007, combining R&D, production, foreign trade and professional service of pharmaceutical machinery as an original manufacturer. Following sincerity, striving to be remarkable is our management concept. We have acquired great reputation in the machinery producing and marketing field, well favoured by customers. Our company has strong production capacity and sells durable and high-quality machine. And leading in peer products while we tracking the new development and technology. Our products seriously comply with the international quality system, ISO and CE. Throughout year's development, we can assure 100% good quality and has been valued one of the ten most potentical enterpreneur among pharmaceitical field. Products include five series machine for pharmaceutical , foodstuff, and industrial fields, such as Dryer, grinder, mixer, pulverizer, sieve screener, granulator, conveyer, vacuum dryer etc.
Welcome friends from all over the world to consult, negotiate and order all series machinery, it's our pleasure to provide complete and considerate service for you.

FAQ

1.You are a manufacturing company or trading company?

---We are original factory specializing in manufacturing pharmaceutical machinery more than 15 years.
2.What quote do you offer?

---FOB , CIF, CFR, EXW, and others.

3.How pay?

---T/T, L/C, Western Union, Paypal, etc.

4.How transport?

---By sea.

5.What is the quality of your products guarantee?

---We have passed ISO, also make CE according to your need, engineers available to service machinery overseas.

6.Do you have after-sales service?

---Certainly, you can contact us at any time.
7.If i want to place an order,what should i tell you
--You can tell me which material do you want to granule,and what's requirement of product capacity and voltage etc.
