Cellulose Acetate Flash Dryer Chemical Calcium Hypochlorite Boric Acid Spin

Product Details:

Place of Origin:	JIANGSU CHINA
Brand Name:	SNYNXN
Certification:	CE, GMP, ISO 9001, AAA, SGS
Model Number:	XSG-10

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Standard Export Packing in Wooden case
Delivery Time:	IN 50 DAYS
Payment Terms:	T/T, L/C, D/A, Western Union

Contact Now

Detailed Product Description

Name:	Airflow Flash Dryer For Chemical	Type:	Flash Drying Equipment
Application:	Medicine Processing, Chemicals Processing, Plastics Pr	Evaporation Capacity:	10-2000 Kg/h
Drying Chamber:	200-1600 Mm	Air Volume:	300-36000 M3/h
Control:	PLC Control	Power:	0.75-75kw
Construction Material:	SUS304, SUS304L, SUS316, SUS316L, Ti, Other, Stainless S	After Sales Service:	Nline Support, Video Technical Support, Field Installation, Commissioning
Highlight:	Cellulose Acetate Flash Dryer , Boric Acid Spin Flash Dryer Machine , 2000 kg/h Cellulose Acetate Flash Dryer

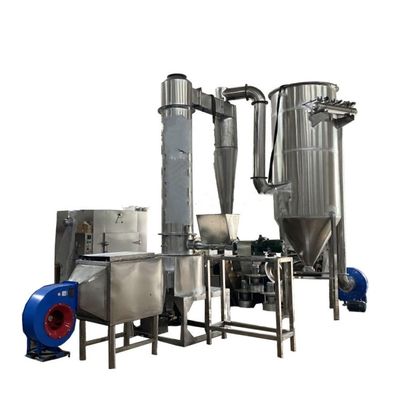

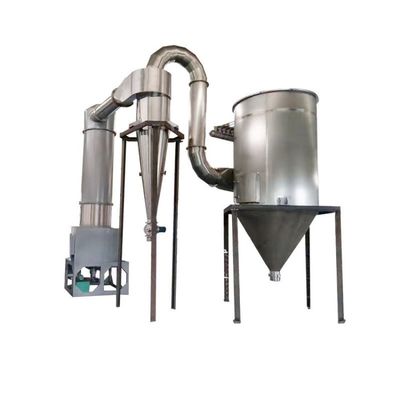

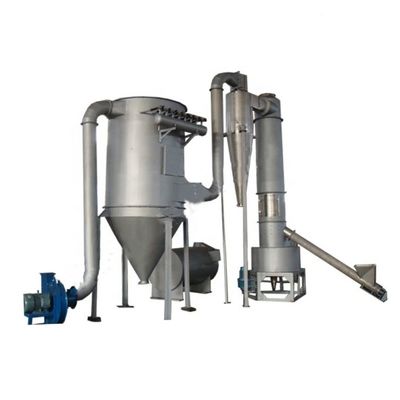

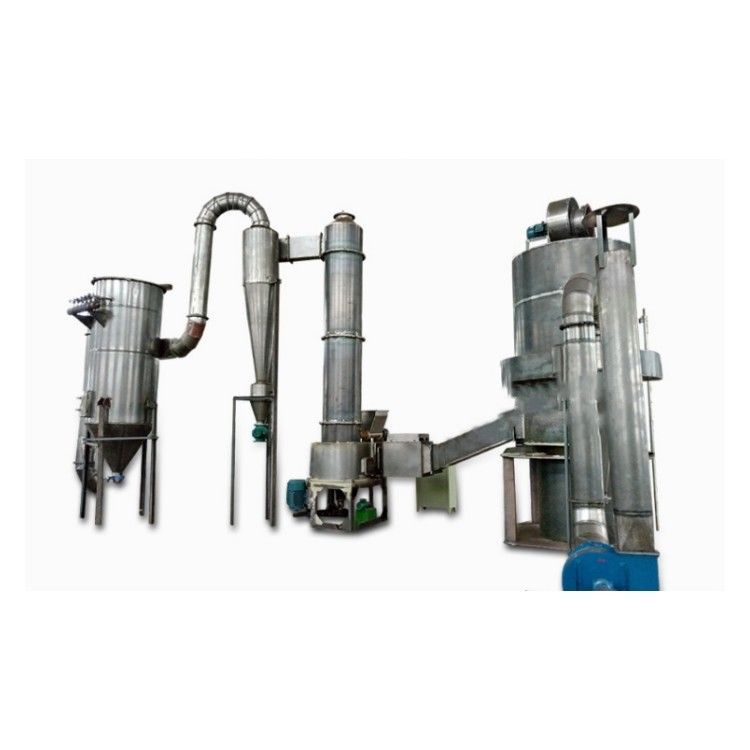

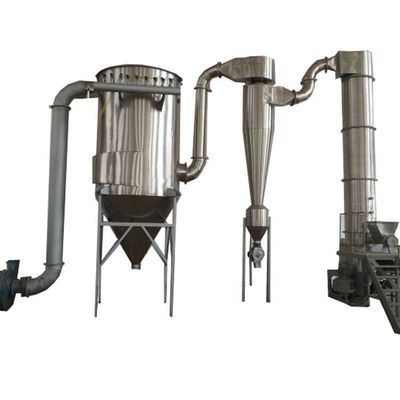

Product Description: XSG Series Revolving cassava flash vaporization dryer

XSG Series Revolving Flash Vaporization Dryer is a new model of drying equipment.It is represents advanced technology,compact structure and wide application.It has a large production capacity with high quality,less energy consuming and non-pollution.Processes of drying, crushing and sieving complete in the same equipment once. Its performance is up to the international advanced level.

Cellulose Acetate Flash Dryer Chemical Calcium Hypochlorite Boric Acid Spin 0

Cellulose Acetate Flash Dryer Chemical Calcium Hypochlorite Boric Acid Spin 1

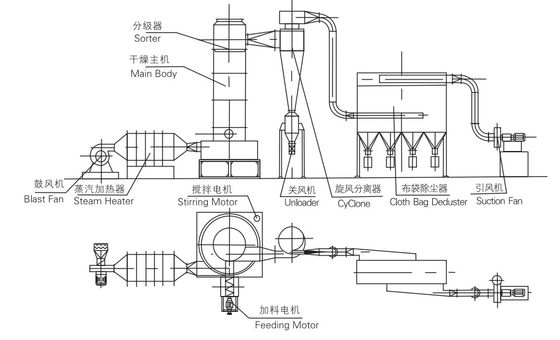

Operating Principle:

Hot air goes into the bottom of the dry through an entrance pipe with an appropriate speed,and drives stirring and drying chamber.The air flow brings strong shearing,blowing,floating,and revolving to granulated,collide and rub.Materials become small particles and easy to transfer the heat.Heavy wetter particles got granulated,small particles is brought up by air flows and get dry further in this process.In this rotary motion of gas solid two phase fluid makes the solid particle separated from the gas flow by centrifugal force,the relative speed between gas and solid is very high,therefore the heat transmission is more effective and great heat released in the process.

Features and Advantages:

1. The drying process of the materials in the room is fast, and the drying time of the materials in the room is short, which can effectively prevent the deterioration of the sensitive materials.

2. The drying chamber is equipped with grading ring and cyclone, and the fineness and final moisture of materials are adjustable. The special air distribution device reduces the equipment resistance and effectively improves the drying uniformity of materials.

3. Special cooling device and air tight package are set at the bottom of the dryer to avoid deterioration of materials in the high-temperature area at the bottom.

4. It can effectively control the final moisture and fineness, and ensure the uniformity of moisture content and fineness of products through the adjustment of feeding, hot air temperature and classifier.

Application Field:

Paste, slurry, filter cake and other materials, plate and frame pressure filtration or centrifuge dewatering materials. For example:

1. Inorganic: boric acid, calcium carbonate, hydroxide, copper sulfate, iron oxide, barium carbonate, antimony trioxide, various metal hydroxides, various heavy metal salts, synthetic cryolite, etc;

2. Organic matter: atrazine (pesticide), lauric acid, benzoic acid, benzoic acid, bactericide, sodium oxalate, cellulose acetate, etc;

3. Ceramics: kaolin, silica, clay, etc;

4. Dyes: anthraquinone, black iron oxide, indigo pigment, butyric acid, titanium hydroxide, zinc sulfide, various azo dye intermediates.

5. Food: soybean protein, gum starch, distiller's grains, wheat sugar, wheat starch, etc.

Model	Inner Diameter(mm)	Air Volume(m³/h)	Evaporation Capacity(kg/h)	Total Power(kw)	Max Height(m)	Covering Area(㎡)
XSG-2	200	350-500	12-17	10	4	15
XSG-4	400	1150-2000	40-70	20	4.8	20
XSG-6	600	2450-4500	80-150	40	5.8	28
XSG-8	800	4450-7550	150-250	65	6.5	35
XSG-10	1000	7000-12500	230-425	85	7.1	40
XSG-12	1200	10000-20000	300-600	105	7.8	52
XSG-16	1600	18000-36000	600-1000	150	8.8	80
XSG-20	2000	28200-56500	1000-1500	230	10.1	150

Pre-service:
Act as a good adviser and assistant of clients to enable them get rich and generous returns on their investments.
1. Introduce the product to the customer in detail, answer the question raised by customer carefully;
2.Make plans for choice according to the needs and special requirements of users in different sectors;

Sale-service:
1. Ensure product with high quality and pre-commissioning before delivery;
2. Delivery on time;
3. Provide full set of documents as customer’s requirements.

After-sale service:
Provide considerate services to minimize clients’ worries.
1.Assist clients to prepare for the first construction scheme;
2.Install and debug the equipment;
3.Train the first-line operators;
4. Examine the equipment;
5.Take initiative to eliminate the troubles rapidly;
6.Provide technical support;
7.Establish long-term and friendly relationship.

Service commitment:
1. Provide clients one-year warranty to make sure the machine work well;
2.We always keep certain inventory level of spare parts, which means the replacements can be sent to you timely;
3.Send every client a preferential quotation.

FAQ:

1. What data is required to confirm the model?
(1) Materials to be dried (2) Treatment capacity per hour (3) Moisture requirements before and after drying

2. What certificates do you have?
We can provide CE, ISO 9001, etc.

3. What is the warranty period of the equipment?
Normally 1 year warranty.

4. Can we visit your factory?
Of course, we sincerely invite you to visit. If it's not convenient for you to come to the site, we can also arrange a video conference to visit the factory.

5. Can we bring our own materials to your factory for experiments?
Of course, you are welcome at any time. We will arrange professional engineers and technicians to do experiments and analyze data for you on site. Or you can send your materials to us.

6. Can it be customized?
Of course, our equipment can be customized according to the actual requirements of customers.

7. How long is the construction period?
It's about 30 days, but it also needs to be determined according to the specific equipment model, order number, etc., But if you need it urgently, please let us know, we can arrange the factory to rush production.

8. Will you provide installation services?
If you need, we can arrange professional technicians and engineers to install and debug on site. At the same time, we also provide online installation guidance and operation training.
