Extruding Rotating Granulating Machine Mill Feed Processing 400kg / H

Product Details:

Place of Origin:	JIANGSU CHINA
Brand Name:	SNYNXN
Certification:	CE ISO GMP
Model Number:	XL 125

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Standard Export Packing in Wooden case
Delivery Time:	IN 60 DAYS
Payment Terms:	T/T, L/C
Supply Ability:	100 sets / year

Contact Now

Detailed Product Description

Machine Type:	XL Rotating Granulating Machine	Capacity:	60-400kg/h
Sieve Diameter:	0.8 -2.5 Mm	Usage:	Roller Press Dry Powder
Application:	Food, Medicine	Machinery Test Report:	Provided
Raw Material:	Stainless Steel 304 S.S316L	Key Selling Points:	Easy To Operate For Long Term Use
Function:	High Speed Mixing Granulator	After Sales Service:	Online Support, Engineers Available To Service Machinery Overseas
Highlight:	Extruding Rotating Granulating Machine , Mill Feed Rotating Granulating Machine , 400kg/h Rotating Granulator Machine

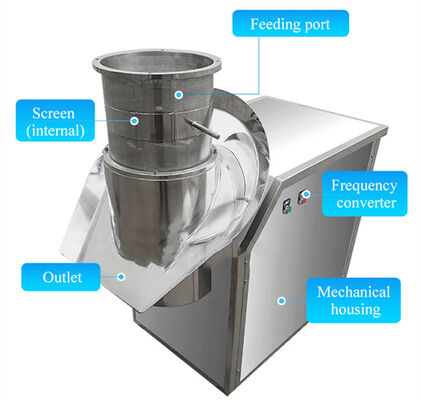

Product Description of XL Series Rotary Granulator High Efficient Rotary Granulator

This equipment is a new equipment of our company recently developed. It has the advantages of automatic unloading, the efficiency is 2-3 times more than YK - 160 swing granulator, also meet the GMP standard. It is one of the ideal granulating equipment. Simple structure, easy to operate, easy to move. Automatic discharge, to make up for the shortcomings of the old manual unloading. Continuous operation. Suitable for semi dry powder state and with viscous material, medical granules, solid beverage, chicken essence and other foods.

Working Principle

Through mechanical transmission make grinding blade and pressure material leaf as opposite spin, pressure material leaf's certain Angle make the material feeding into the grinding blade, a ruler to run on the knife large Angle spiral leaf inner material into a sieve, then the material be extruded into particles from screen hole, through the material blade.

Product Paramenters

TYPE/ITEM	XL-150	XL-250	XL-300	XL-500
Power(kw)	3	5.5	7.5	18.5
Cylinder diameter(mm)	150	250	300	500
Capacity(kg/h)	30-100	50-300	100-500	1000-1500
Granule diameter(mm)	φ1.2-φ3
Speed(r/min)	60(can add frequency converter)	50(can add frequency converter)	36(can add frequency converter)	36(can add frequency converter)
Overall size(mm)	700×400×700	1200×700×1100	1350×800×1200	2500×1500×2000
Weight (kg)	200	400	600	1000

Extruding Rotating Granulating Machine Mill Feed Processing 400kg / H 1

Packing: The product will be packed in a wooden case, and also can be packed in other ways as your request. Both neutral and customized packing is available.

Shipping: We can ship the goods to you by international expresses,such as DHL, UPS, TNT, and so on. And you can choose the appropriate way based on your timeline and budget. Besides, you can choose to use your own shipping agent.

Express: Door to door, very convenient, don't need clearance or pick-up.

By air: Airport to the airport, you need to do the customs clearance and pick up the goods at your local airport, which you can have a local shipping agent do for you.

By sea: Port to port and you need to do the customs clearance and pick up the goods at your local port, which you can have a local shipping agent do for you.

FAQ

Q: How does the machine fit our voltage?
A: For each piece of equipment, our salesman will confirm the voltage with the customer.

Q: How can I buy the machine?
A: Firstly, our salesman will discuss with you all the details of the machine, the lead time and the payment condition.
Secondly, after receiving the 30% down payment, the production will begin.
Finally, we’ll show you the photos and the test video of the finished machine. You pay the balance and the equipment will be shipped as scheduled, by our forwarder or by your familiar forwarder.

Q: How long is your machine’s warranty?
A:1 year after the delivery. During the one year, we can offer the broken parts free of charge, if the problem isn’t caused by wrong operation.

Q. What can you provide for after-sale service?
A: We can send the engineer to the customer’s factory for the installation and operation training if the customer requires it. We can also supply the installation and operation instructions by video.

Q: If we have a very special request on the production line, could you help me to do the design?
A: Customized design is provided.

Q: How to contact you?
A: Please leave messages and click "send" to send us inquiries.
