Specializing in the production of pharmaceutical machinery and granulating drying equipment.
 |
| Place of Origin: | JIANGSU, CHINA |
| Brand Name: | SNYNXN |
| Certification: | CE ISO GMP, ISO 9001 Certification |
| Model Number: | FG 300 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD10000-100000/SET |
| Packaging Details: | Film Wrapping, Wooden Case. |
| Delivery Time: | 50 - 90 DAYS |
| Payment Terms: | L/C, T/T, |
| Supply Ability: | 500 SETS/YEAR |
| Product Name: | Fluid Bed Dryer, Fluidized Bed Dryer | Capacity: | 100 - 240 Kg/batch |
|---|---|---|---|
| Type: | Fluid Bed Drying Equipment | Power(w): | 22 KW |
| Application: | Drying In Medicine Processing, Chemicals Processing, Food Processing, | Material: | SUS304, SUS316L, Other, Stainless Steel304/316L |
| Usage: | Drying, Reduce Material's Moisture, Fluid Fluidized Bed Dryer Price, Salt/powder/particle/chemical Drying | Raw Material: | Powders, Granules |
| Voltage: | 380V, 220v/380v, 220v-450v, 415V/50Hz/60H, 380V/50Hz | After Sales Service: | Online Support, Engineers Available To Service Machinery Overseas |
| High Light: | 300KG fbd Fluid Bed Dryer,ISO9001 Fluid Bed Dryer,fbd pharma machine 240kg/batch |
||
Description: 300KG per batch Fluid Bed Dryer

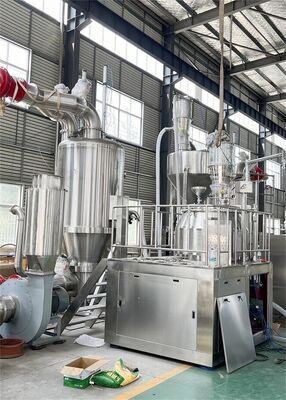

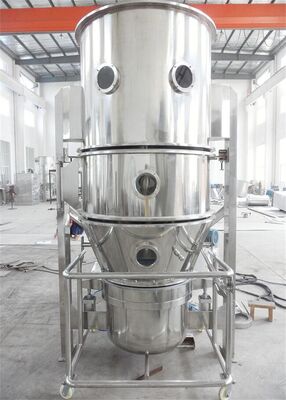

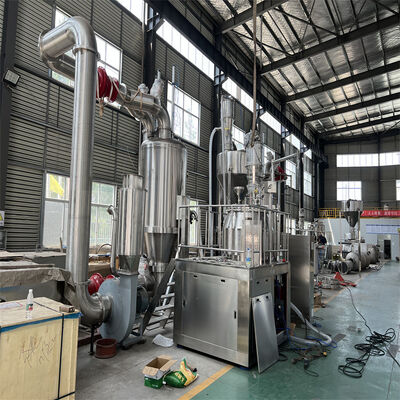

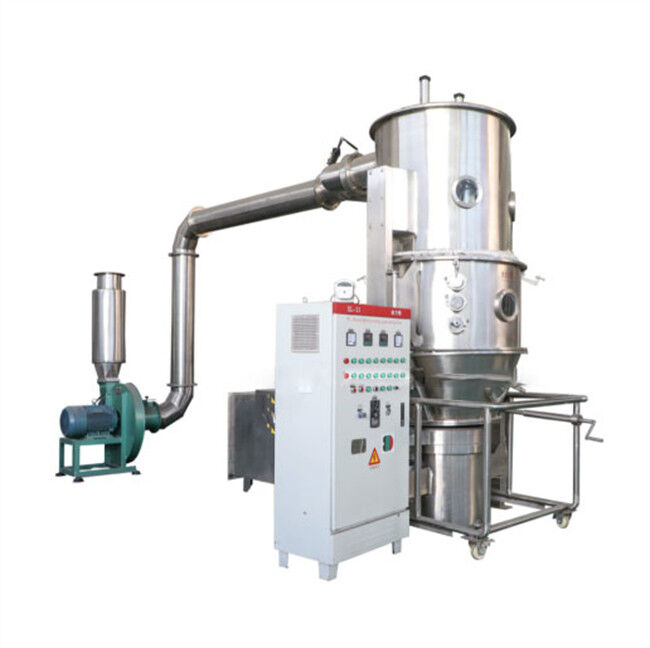

Stainless Steel Vertical Batch Type 300KG Fluid Bed Dryer FBD
Features
1 .Fluid bed to achieve fast heat transmission of medium.
2.Seal negative pressure operation, there is no dust.
3. Because of using anti-static material as filter, it is safe in operation;
4. The equipment has no dead corner so it is easy to clean fully and there is no cross pollution;
5.It is conformity with the requirements of GMP.
Technical Parameter
| type | 3 | 5 | 30 | 60 | 120 | 200 | 300 | 500 | 1000 | ||
| item | unit | ||||||||||
| Container of raw material | diameter | mm | 300 | 400 | 700 | 1000 | 1200 | 1400 | 1600 | 1800 | 2200 |
| volume | L | 12 | 22 | 100 | 220 | 420 | 670 | 1000 | 1500 | 2500 | |
| Production capacity | min | kg/batch | 1.5 | 4 | 15 | 30 | 80 | 100 | 150 | 250 | 500 |
| max | kg/batch | 4 | 6 | 36 | 72 | 140 | 240 | 360 | 600 | 1100 | |
| consumption of steam | kg/h | 12 | 23 | 70 | 140 | 211 | 282 | 366 | 465 | 800 | |
| amount of compressed air | m3/min | 0.3 | 0.3 | 0.3 | 0.6 | 0.6 | 0.9 | 0.9 | 0.9 | 1.5 | |
| Power of fan | kw | 2.2 | 4 | 5.5 | 11 | 18.5 | 22 | 30 | 45 | 75 | |
| Temperature | ºC | 120°C (Adjustable from ambient to 120) | |||||||||
| Yield | % | >99 | |||||||||
| Option time | min | 1530(depends on material) | |||||||||
| Content at final term. | % | -0.2( depends on material) | |||||||||
| Noise | dB | ≤75 | |||||||||
| Height of main machine | mm | 2100 | 2300 | 2500 | 3000 | 3300 | 3800 | 4000 | 4800 | 6200 | |
Applications
The machine is main used for drying powder or granules from pharmaceutical,foodstuff, chemical and so on industries.
Company profile
Division I professional production of various kinds of pharmaceutical machinery and drying equipment, our products sell well in over 20 provinces and cities, and exported to America, Mexico, Spain, Singapore, Russia, belarus, Egypt, South Korea, Malaysia, the Philippines, the united Arab emirates, Thailand, Vietnam, Pakistan, India, Iran, South Africa, Algeria, Syria, Mongolia, Bangladesh and other countries. The company is constantly updating and developing pharmaceutical machinery, chemical equipment, drying equipment, mixing equipment, granulator, coater and sewage treatment equipment and other products. With strict testing means and a complete set of scientific management procedures, and through the ISO9001 international quality system certification, product quality has reached the advanced level at home and abroad, pharmaceutical machinery products in line with "GMP standard". Our company tenet: product quality to win with excellence, sales and service to honesty, the contract to honor the letter.
FAQ
Q: Delivery period:
A: Around 15-60 days, delivery perious will vary as different types of machinery,
Q: Payment of terms:
