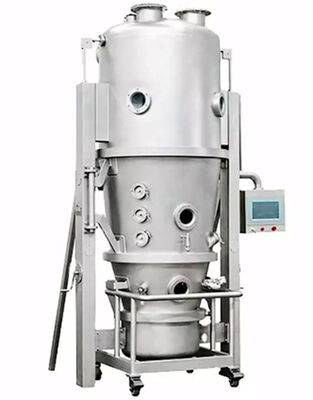

SS316 Food Industrial Fluid Bed Spray Dryer Coffee Granule Fluidised Bed Drying Food

Name: SS316 Food Industrial Fluid Bed Spray Dryer Coffee Granule Fluidised Bed Drying Food
Brand: SNYNXN
SKU: FG 120
Price: 10000 USD
Availability: InStock
Rating: 5 (133 reviews)

Product Details:

Place of Origin:	JIANGSU, CHINA
Brand Name:	SNYNXN
Certification:	CE ISO GMP, ISO 9001 Certification
Model Number:	FG 120

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	USD10000-100000/SET
Packaging Details:	Film Wrapping, Wooden Case.
Delivery Time:	50 - 90 DAYS
Payment Terms:	L/C, T/T,
Supply Ability:	500 SETS/YEAR

Contact Now

Detailed Product Description

Product Name:	FG Fluidized Bed Dryer 120KG	Application Industry:	Drying In Medicine Processing, Chemicals Processing, Food Processing,
Material Processed:	Plastics, Chemicals, Food, Medicine, Feed	Capacity:	80-140 Kg/batch
Material Type:	All Type Of Powders And Granules	Fan Power(w):	2.2-75 KW Depend On Model
Key Selling Point:	Safe, Clean, High Productivity, Long Time Use.	Voltage:	220/380V, 50/60Hz, Customized
Main Material:	SS316+SS304	After-sales Service Provided:	Video Technical Support, Online Support, Spare Parts, Field Ma
High Light:	SS316 fluid bed spray dryer , 60Hz fluid bed spray dryer , 140kg/batch fluidised bed drying food

Description: FG Vertical Food Industrial Granule High Efficiency Fluid Bed Dryer

SS316 FG Model Food Industrial Coffee Granule High Efficiency Fluid Bed Dryer Fluid Bed Drying Machine

When air is purified and heated, it is introduced from the bottom of induced-draft fan and passed through the screen plate of raw material. In working chamber, the state of fluidization is formed through stirring and negative effect. The moisture is evaporated and removed rapidly and the raw material is dried quickly.

Features

1,The structure of fluidization bed is round so as to avoid the dead angle

2,Inside the hopper there is a stirrer in order to avoid agglomeration of raw material and forming canal of flow

3,The granule is discharged through the method of turning over. In this way it is very convenient. The discharging system can be designed as required too

4,It is operated at the condition of negative pressure and seal. The air is filtered. Therefore it is simple in operation and convenient in clean. It is an ideal equipment that is in conformity with the requirements of GMP.

5,The drying speed is fast and the temperature is uniform. In general, the drying time is 15-45 minutes each batch.

Scope of application

1,Use screw to extrude and vibrate granule and granulate the granule with the method of humidity, high speed and mixing

2,Suitable for drying humidity block or powder raw material in the fields such as pharmaceutical, foodstuff, feed stuff, chemical industries and so on

3,The raw material that large in granule and small in block and having adhesive property

4,Suitable for raw materials, its volume will be changed when dry, such as giantarum, polyacrylamide, etc.

Technical Parameter

Type			3	5	30	60	120	200	300	500	1000
Item		unit	3	5	30	60	120	200	300	500	1000
Container of raw material	diameter	mm	300	400	700	1000	1200	1400	1600	1800	2200
	volume	L	12	22	100	220	420	670	1000	1500	2500
Production capacity	min	kg/batch	1.5	4	15	30	80	100	150	250	500
Production capacity	max	kg/batch	4	6	36	72	140	240	360	600	1100
consumption of steam		kg/h	12	23	70	140	211	282	366	465	800
amount of compressed air		m3/min	0.3	0.3	0.3	0.6	0.6	0.9	0.9	0.9	1.5
Power of fan		kw	2.2	4	5.5	11	18.5	22	30	45	75
Temperature		ºC	120°C (Adjustable from ambient to 120)
Yield		%	>99
Option time		min	1530(depends on material)
Content at final term.		%	-0.2( depends on material)
Noise		dB	≤75
Height of main machine		mm	2100	2300	2500	3000	3300	3800	4000	4800	6200

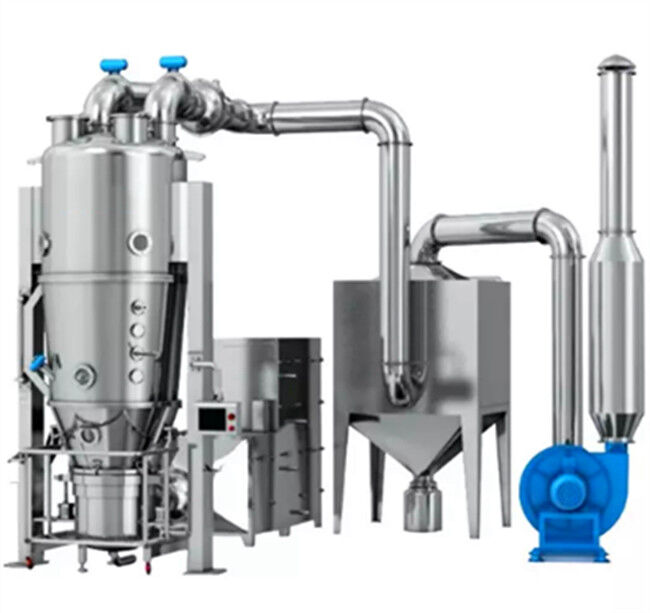

SS316 Food Industrial Fluid Bed Spray Dryer Coffee Granule Fluidised Bed Drying Food 0

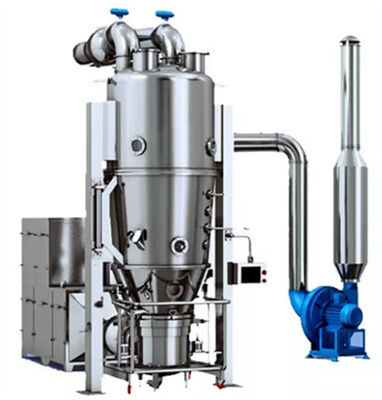

SS316 Food Industrial Fluid Bed Spray Dryer Coffee Granule Fluidised Bed Drying Food 2

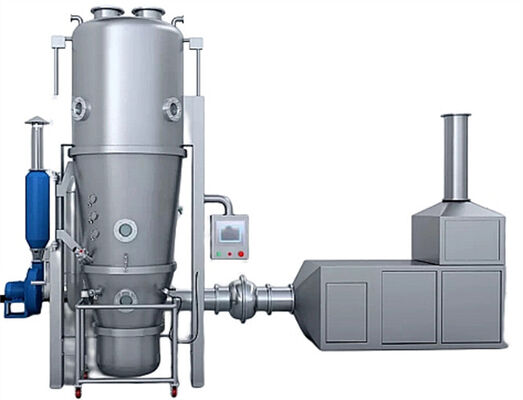

SS316 Food Industrial Fluid Bed Spray Dryer Coffee Granule Fluidised Bed Drying Food 3

FAQ

Q: Delivery period:
A: Around 15-60 days, delivery perious will vary as different types of machinery,

Q: Payment of terms:

A: Acceptable payment terms: T/T, L/C, Cash after signing the contract, firstdeposit 30% of total as prepayment, and rest 70% after approvement but before shipment

Q: Quality Warranty:
A: We guarantee all the machines are brand new; We guarantee every set of our machines after shipment have warranty 15 months, during warranty period we will provide technician debugging onsite, or free spare parts caused by the malfunction of machines. We guarantee we reply the user's bewilderment within 24 hrs after receive notification.

Q: Package of merchandise:
A: Inner packed with plastic wrapping, external is plywood case.

Q: What is service when we place an order with you?
A: First we invite you to visit our factory, and negotiate the tecnnology and choose model of machines, and give feasible advice of each material. Secondly visit our factory to do FAT before shipment, give us your advice and we modify the machine if not meet the user's satisfaction. Lastly, we will dispatch at least 1 experienced and responsible technician to go abroad for commissioning and train the operators. lf no need onsite commissioning, we provide video guidance.

Q: Which information do you require then you could choose model subsequently?
A: We need to know the information as below: What is your material name? What is the initial moisture percentage before drying? What is the residual moisture percentage after drying? What is the heating temperature your material can undertake during drying process? What is the heating source, steam, electricity, natural gas or others? Last but important, what is capacity needed as how many kgs/h before drying or after drying?
